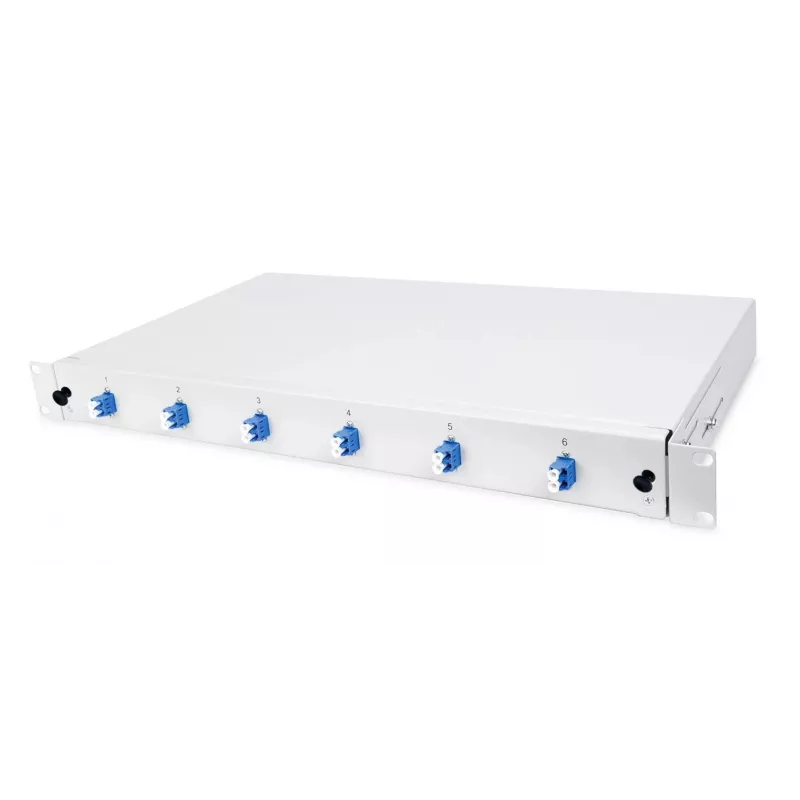

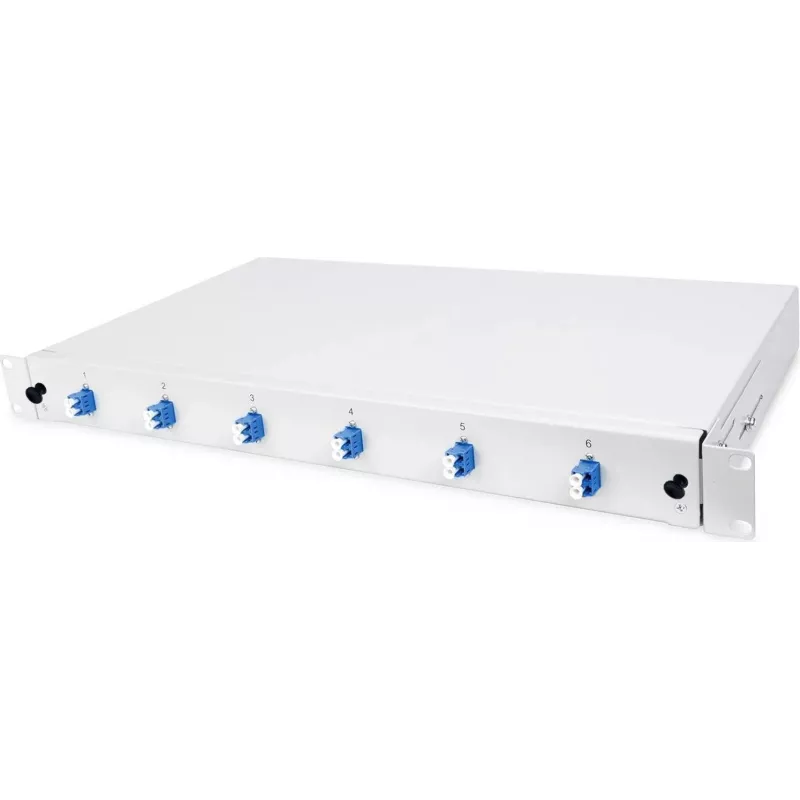

HELOS breakout box in fibra ottica 19" con 6x LC Duplex, Single Mode

Fiber optic breakout box for 19-inch rack mounting, providing six LC duplex ports for single mode fiber connections. The unit offers a total capacity of 12 fibers and is suitable for use in data centers, LANs, and FTTx applications.

Advantages

The breakout box features a powder-coated steel housing in black (RAL 9005) for durability and easy integration into standard 19-inch racks. It occupies 1U of rack space and supports up to 24 splices via splice trays (not included).

Suitable for

• Telecommunication installations
• Data centers
• LAN and FTTx networks

Key specifications

• Fiber type: Single mode (OS2)
• Connector type: LC duplex (UPC)
• Number of ports: 6
• Total fiber capacity: 12
• Rack units: 1U
• Insertion loss: max 0.2 dB per connector
• Return loss: min 50 dB
• Operating temperature: -20°C to +70°C

Recommendations

For structured cabling projects requiring a compact, high-density fiber termination point in a 19-inch rack.
