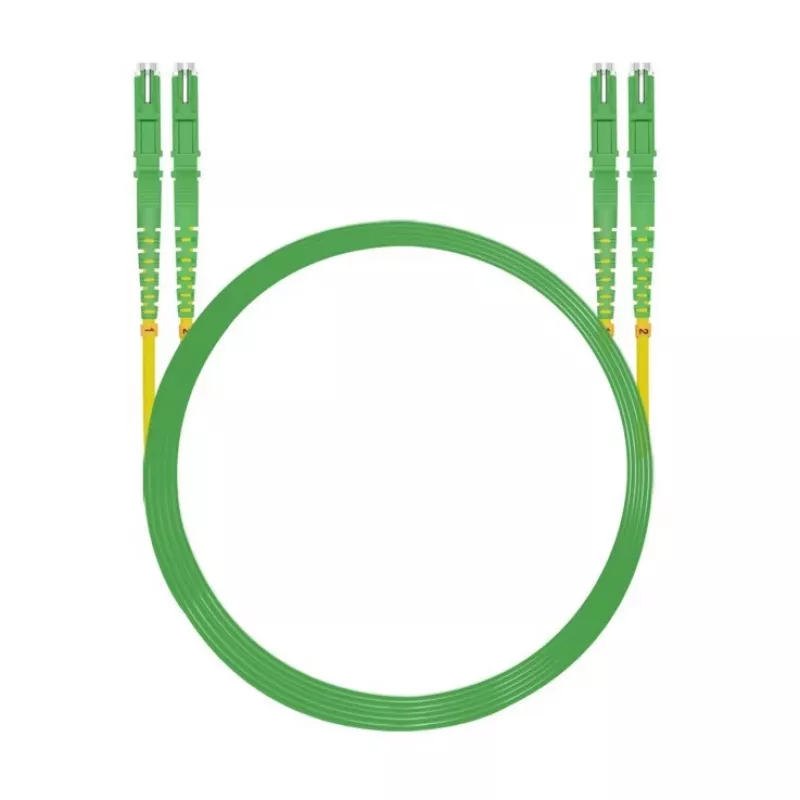

HELOS Cavo patch in fibra ottica E2000® APC/E2000® APC (LSH) Duplex 9/125µm OS2 giallo 0,5 m

The HELOS LWL Patch Cable E2000® APC/E2000® APC (LSH) Duplex 9/125µm OS2 is a high-quality fiber optic patch cable designed for reliable single-mode connections in data centers, telecommunications, FTTx, and LAN applications. With a length of 0.5 meters and a yellow LSZH jacket, this cable ensures low insertion loss and high return loss for optimal signal integrity.

Advantages

This patch cable offers exceptional performance with typical insertion loss < 0.25 dB and return loss > 60 dB, ensuring minimal signal degradation. The APC polish reduces back reflection, making it ideal for high-speed networks. The LSZH jacket provides safety in enclosed spaces by emitting low smoke and zero halogen in case of fire.

Suitable for

• Data centers requiring high-density cabling
• Telecommunications infrastructure
• FTTx (Fiber to the x) deployments
• Local area networks (LAN)

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Single-mode OS2
• Core/Cladding: 9/125 µm
• Connectors: E2000® APC to E2000® APC
• Polish: APC (Angled Physical Contact)
• Configuration: Duplex
• Length: 0.5 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Insertion Loss (Typical): < 0.25 dB
• Return Loss (Typical): > 60 dB
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is compatible with standard E2000® APC adapters and panels.
