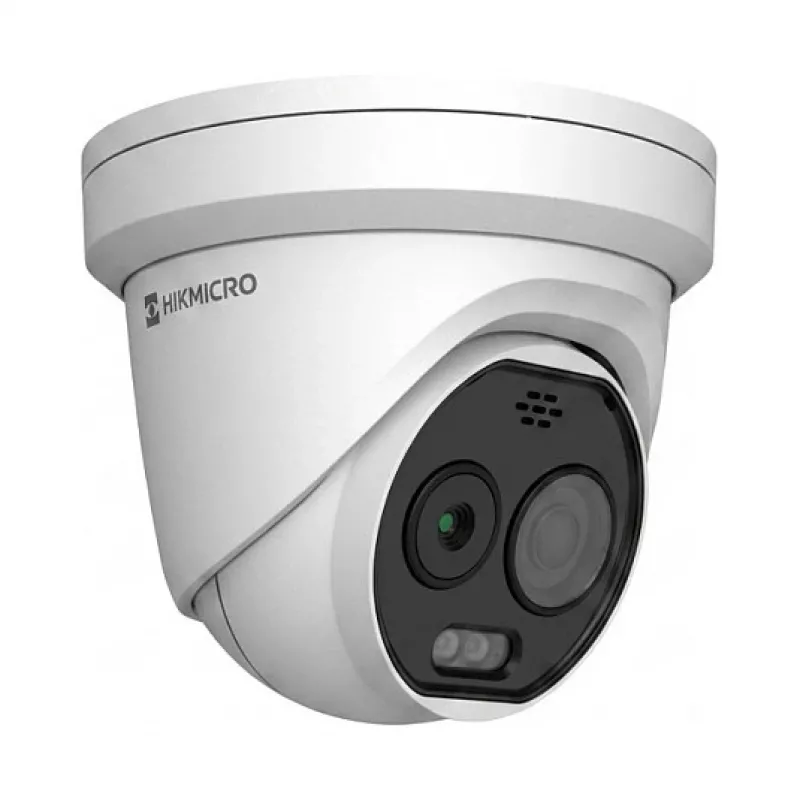

Hikvision HM-TD1228-7/G1/T3A telecamera termica 256x192 bi-spectrum

The Hikvision HM-TD1228-7/G1/T3A is a high-performance thermal bi-spectrum camera designed for critical security and fire detection applications. Combining a 256×192 thermal sensor with a 4 MP optical sensor, it delivers reliable 24/7 surveillance in challenging environments. With advanced analytics including fire detection, line crossing, and intrusion detection, this camera is ideal for perimeter protection, industrial monitoring, and early warning systems.

Advantages

Dual-spectrum imaging provides both thermal and visible light views, ensuring detection even in total darkness or through smoke. The 7 mm thermal lens offers a 24.9° × 18.7° field of view, while the 8 mm optical lens covers 39.42° × 22.14°. Built-in IR illumination extends night vision up to 30 m. The camera supports H.265+ compression for efficient bandwidth and storage, and features a microSD slot for up to 256 GB local storage. With IP66 rating, it withstands harsh weather conditions from -40 °C to 65 °C.

Suitable for

• Perimeter security for critical infrastructure
• Industrial and warehouse fire prevention
• Outdoor surveillance in remote or harsh environments
• Early fire detection in forests or large facilities

Key specifications

• Thermal sensor: 256×192 resolution, 12 μm pixel pitch, NETD < 40 mK
• Optical sensor: 4 MP (2688×1520), 8 mm lens
• Temperature measurement: -20 °C to 150 °C, accuracy ±8 °C or ±8%
• Video compression: H.265/H.264/MJPEG
• Network: 1x RJ45 10/100 Mbps, PoE (802.3af)
• Power: 12 VDC or PoE
• Protection: IP66, operating temp -40 °C to 65 °C
• Smart features: Fire detection, line crossing, intrusion

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the camera is mounted in a location with a clear view of the monitored area. For temperature measurement applications, consider ambient conditions and calibration requirements.
