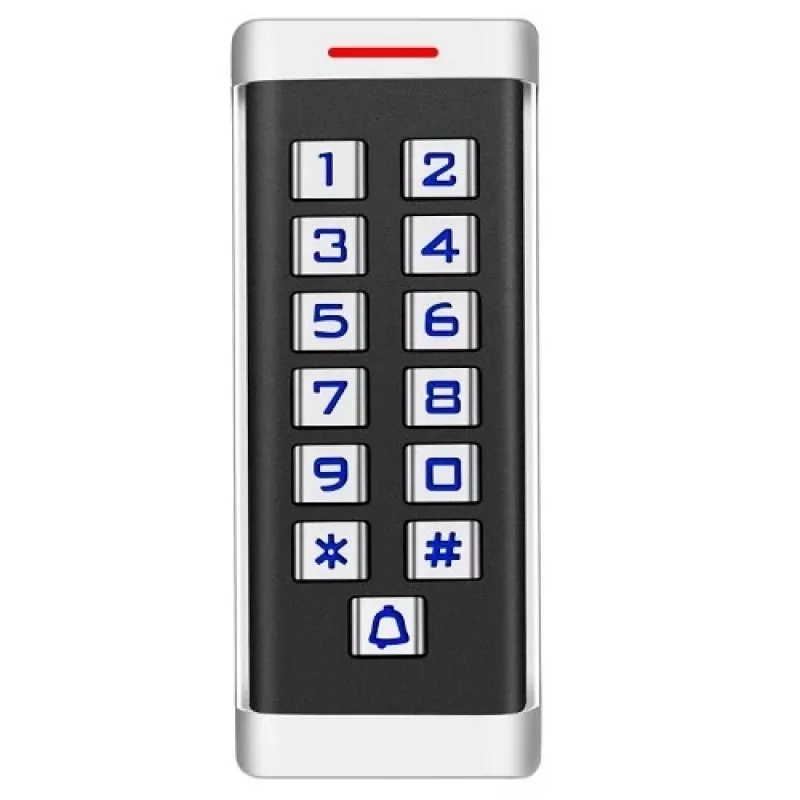

HISMART tastiera multifunzione per controllo accessi con lettore carte Mifare e controller integrato

Controlling access to secure areas often involves multiple devices, complicated wiring, and costly installation. This all-in-one access control keypad from HISMART eliminates that hassle by combining a durable metal keypad, a Mifare card reader, and an integrated controller in a single weather-resistant unit. It empowers you to manage up to 2000 users and 10,000 event logs with straightforward card or PIN verification.

Who is it for

Designed for small businesses, office suites, storage facilities, and residential complexes, this versatile keypad delivers robust security without needing a separate host system. It is equally effective for interior doors, gates, or outdoor entrances thanks to its IP65-rated housing and wide operating temperature range.

Main features

• Three authentication modes: card, PIN, or card + PIN for flexible user access.
• Supports Mifare Classic 1K/4K and Mifare Ultralight cards at 13.56 MHz.
• Built-in controller manages 2000 users and 10,000 event logs.
• Zinc alloy construction with IP65 protection against dust and water.
• Backlit metal keypad ensures easy operation in low light.
• Integrated tamper alarm, door forced-open alarm, and door ajar alarm.
• Adjustable door relay time from 0 to 99 seconds.
• Wiegand 26-bit input/output for integration with expansion systems.
• Door sensor and exit button inputs for complete door monitoring.

Specifications

• Product type: Standalone access controller
• Authentication: Card, PIN, Card + PIN
• Card technology: Mifare (13.56 MHz), Mifare Classic 1K/4K, Ultralight
• User capacity: 2000
• Event log capacity: 10,000
• Operating voltage: DC 12V
• Current consumption: <100 mA (standby), <150 mA (operating)
• Relay output: 1 (NO/NC/COM)
• Alarm output: 1
• Inputs: Door sensor, exit button
• Wiegand interface: 26-bit input/output
• Keypad: Backlit metal
• Housing material: Zinc alloy
• Ingress protection: IP65
• Operating temperature: -20°C to 60°C
• Operating humidity: 10% to 90% RH (non-condensing)
• Reading distance: 3-6 cm
• Door relay time: 0-99 seconds
• Alarm functions: Tamper, door forced open, door ajar

Tips

For optimal performance, supply a stable 12V DC source within the recommended current rating. When mounting, ensure the keypad is installed on a flat surface and the gasket is properly sealed to maintain its IP65 rating. If you are connecting an electric lock, verify that the relay contact rating is adequate for the lock's current draw. Test the card reading distance and adjust the mounting position if needed.
