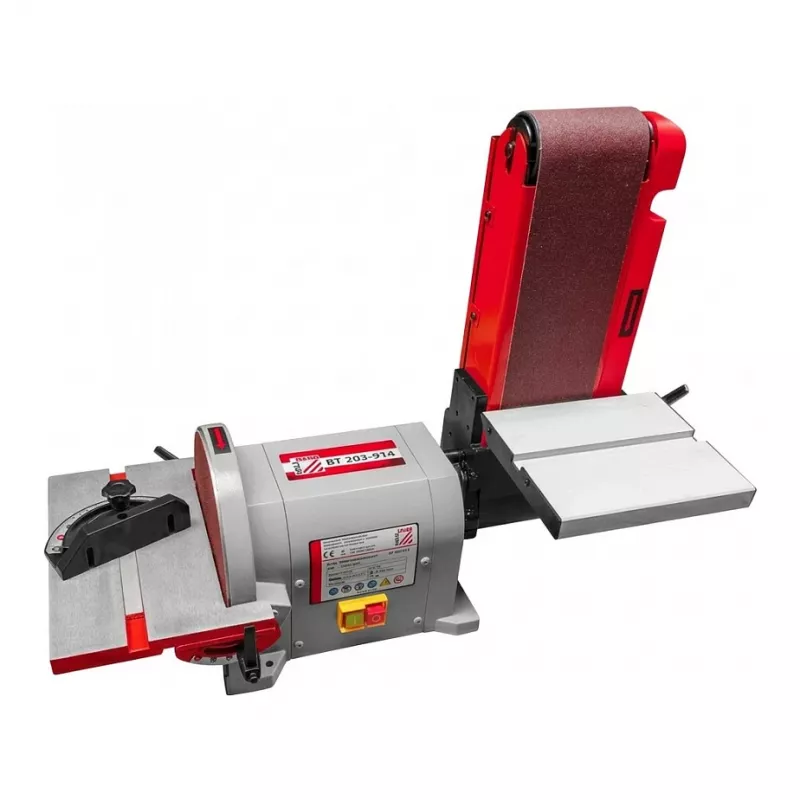

Holzmann BT203-914 levigatrice a nastro e a disco 230V

The Holzmann BT203-914 230V is a versatile combination belt and disc sander designed for workshops and professionals. It features a powerful 750W motor (S1) and 1050W (S6) for efficient material removal. The belt sander unit uses 100 x 914 mm belts at a speed of 7.5 m/s, while the 200 mm disc rotates at 2850 rpm. Both units can be tilted: the belt from 0 to 90° and the disc table from 0 to 45°, allowing for precise angled sanding. The aluminium table provides stability, and the 50 mm dust port ensures a cleaner workspace. With IP54 protection and sound levels of 89 dB(A) (pressure) and 102 dB(A) (power), this sander is built for durability and performance.

Advantages

Combines belt and disc sanding in one machine, saving space and cost. Powerful motor handles heavy-duty tasks. Adjustable tilt angles offer flexibility for various sanding applications. Aluminium table resists wear and provides a smooth surface. Dust port connects to standard extraction systems for reduced cleanup.

Suitable for

• Woodworking and metalworking workshops
• DIY enthusiasts and professional craftsmen
• Shaping, deburring, and finishing edges and surfaces
• Angle sanding with adjustable belt and disc tables

Key specifications

• Motor Power (S1): 750 W
• Motor Power (S6): 1050 W
• Voltage: 230 V
• Frequency: 50 Hz
• Belt Dimensions: 100 x 914 mm
• Belt Speed: 7.5 m/s
• Disc Diameter: 200 mm
• Disc Speed: 2850 rpm
• Disc Sanding Table Dimensions: 260 x 150 mm
• Disc Sanding Table Tilt Range: 0 - 45°
• Belt Unit Tilt Range: 0 - 90°
• Dust Port Diameter: 50 mm
• Protection Class: IP54
• Sound Pressure Level Lpa: 89 dB(A)
• Sound Power Level Lwa: 102 dB(A)
• Table Material: Aluminium

Recommendations

For optimal performance, use high-quality sanding belts and discs. Always connect to a dust extractor to maintain a clean work environment. Regularly check belt tension and alignment for consistent results.
