HPE Broadcom BCM57416 Ethernet 10Gb 2-Port BASE-T OCP3 Interno 10000 Mbit/s

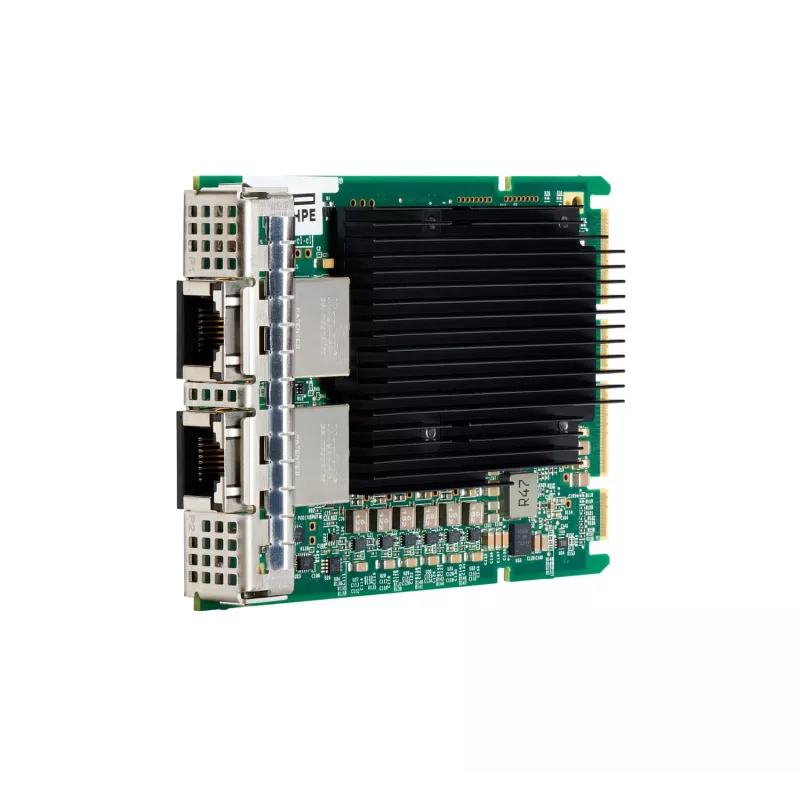

The HPE Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 is a 10 Gigabit wired network adapter designed for HPE Gen10 Plus servers and data center environments. With two BASE-T ports and a PCI Express host interface, this adapter delivers up to 10,000 Mbit/s per port to support high-speed wired connectivity for servers, hybrid cloud services, mobile data and streaming video applications.

Advantages

The adapter is engineered for bandwidth- and latency-sensitive workloads and reduces CPU utilization by supporting I/O offloads such as RDMA and tunneling. It integrates with HPE server and network ecosystems to maintain consistent performance across components. Firmware authentication and a root-of-trust architecture help prevent installation of rogue firmware, improving reliability and security.

Suitable for

• High-throughput server networking in data centers
• Virtualization hosts and hyperconverged infrastructure
• Hybrid cloud connectivity and storage networking
• Streaming video and mobile-data backhaul

Key specifications

• Brand: HP Enterprise
• Model: HPE Broadcom BCM57416
• Ports: 2 × 10Gb BASE-T (OCP3)
• Interface: PCI Express (host interface)
• Maximum data transfer rate: 10000 Mbit/s
• Connectivity technology: Wired
• Compatible with: HPE Gen10 Plus servers
• MPN: P10097-B21

How to use

Install the adapter into an available OCP3/PCIe slot on a supported HPE Gen10 Plus server following the server maintenance guide. Connect CAT6a or higher-rated Ethernet cables to the BASE-T ports and configure network settings in the server operating system or hypervisor. Install HPE or Broadcom drivers and firmware updates that are validated for your server platform to ensure proper operation and feature support.

Recommendations

Use quality shielded twisted-pair cabling (CAT6a or better) for 10GbBASE-T links, keep firmware and drivers up to date with vendor-signed releases, and deploy within an HPE-certified ecosystem to maintain security, performance, and compatibility.
