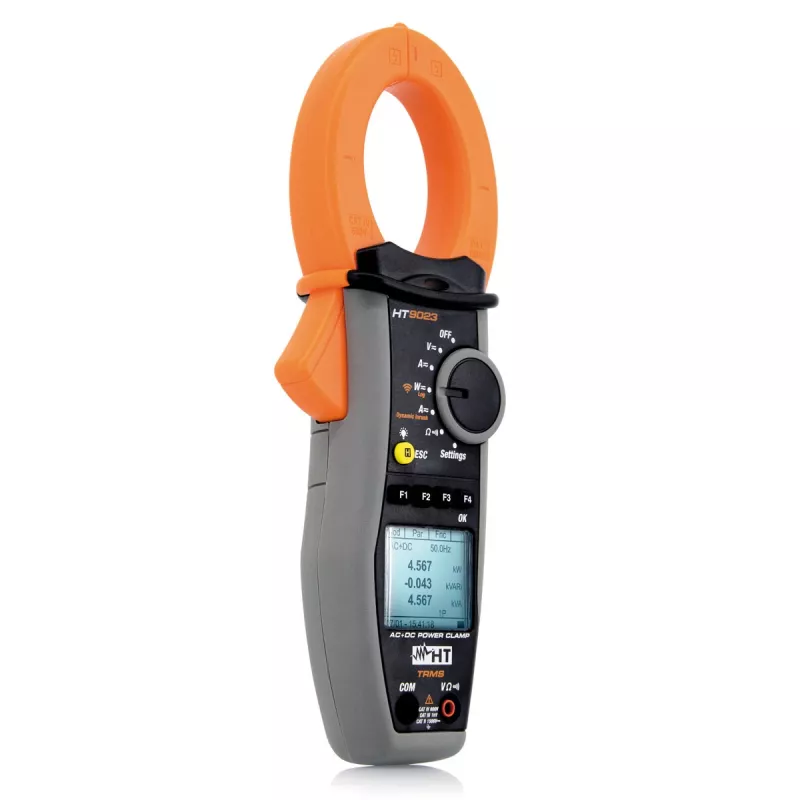

HT Instruments HT9023 Pinza amperometrica digitale CAT III 1000V, CAT IV 600V True RMS 1009023

The HT9023 clamp meter delivers True RMS measurements up to 1000A AC/DC and 1000V AC/DC, with CAT IV 600V safety for industrial environments.

Overview

Engineered for demanding electrical diagnostics, the HT9023 combines a 45mm jaw opening with a 6000-count backlit display. It measures AC/DC current, AC/DC voltage, resistance, capacitance, frequency, and temperature with a K-type probe, plus continuity and diode testing.

What stands out

• True RMS for accurate readings on non-linear loads
• Inrush current measurement for motor start-up analysis
• LowZ mode to eliminate ghost voltages
• Non-contact voltage detection (NCV)
• Data HOLD, MAX/MIN, and Peak HOLD functions

Technical details

• AC Current: 0.1A to 1000A
• DC Current: 0.1A to 1000A
• AC/DC Voltage: 0.1V to 1000V
• Resistance: 0.1Ω to 60MΩ
• Capacitance: 0.001µF to 60mF
• Frequency: 0.01Hz to 10kHz
• Temperature: -20°C to 760°C (K-type)
• Safety: CAT IV 600V, CAT III 1000V
• Power: 2x 1.5V AAA batteries

Our verdict

A versatile and rugged clamp meter for professional electricians, offering advanced features like inrush and LowZ in a compact design.
