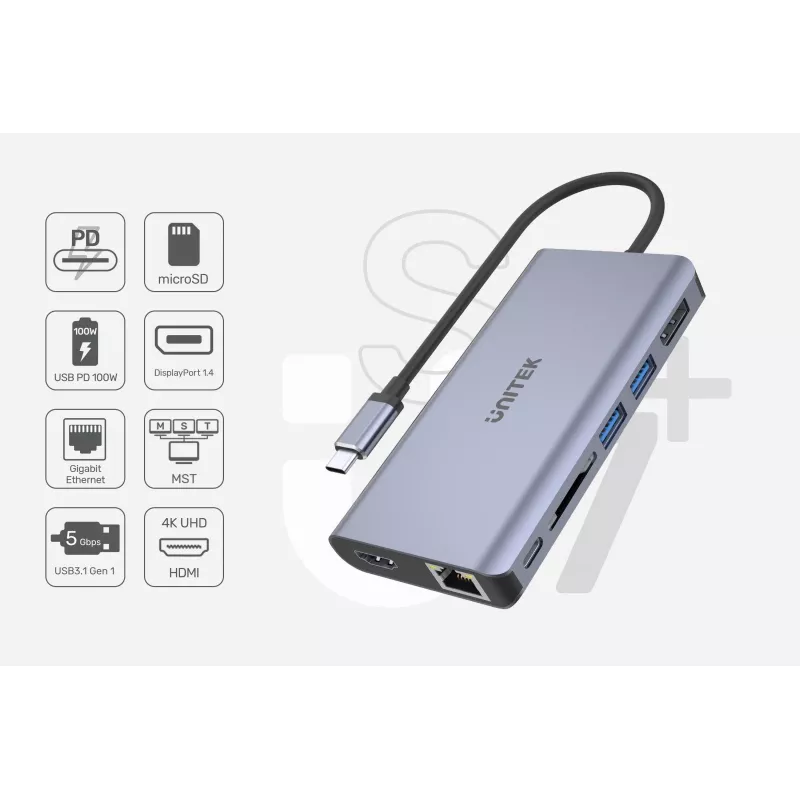

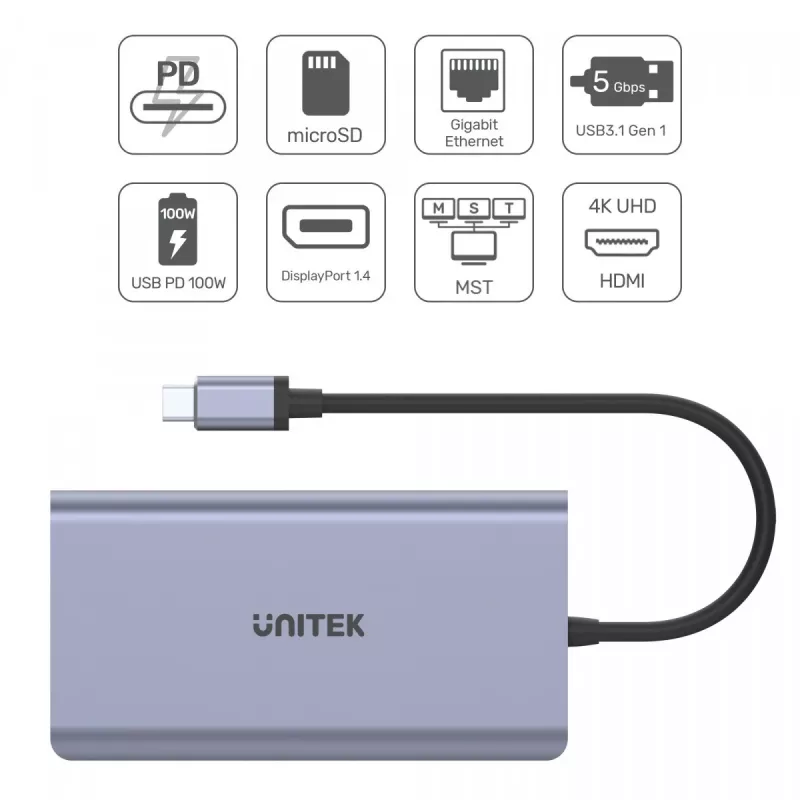

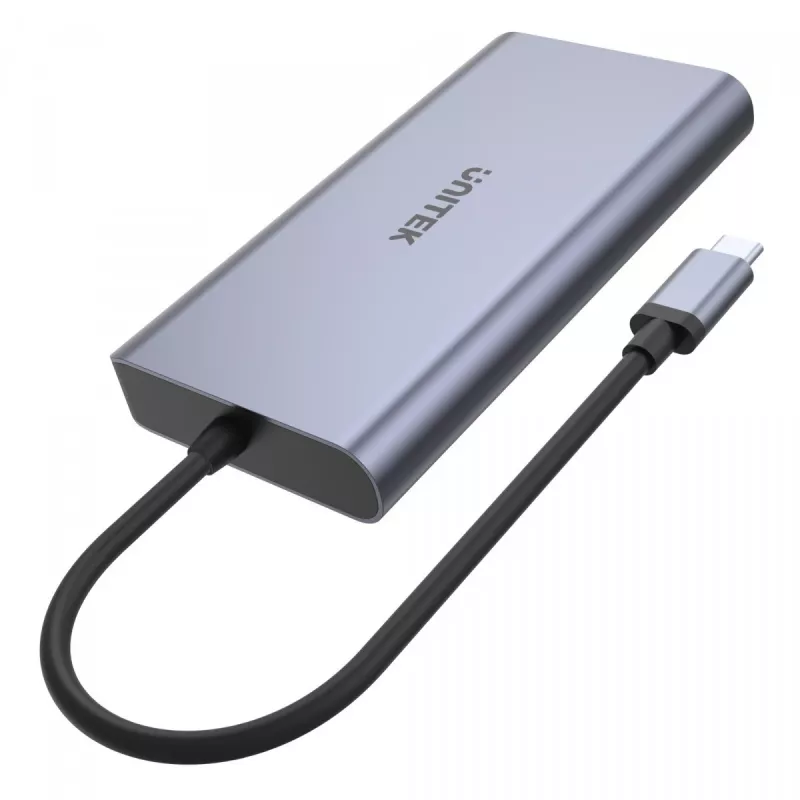

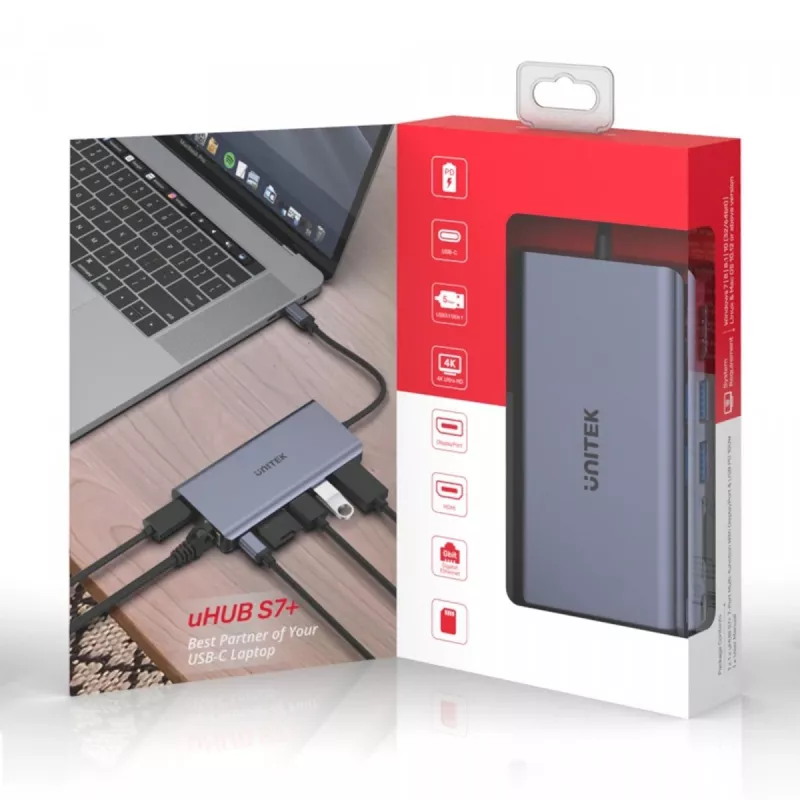

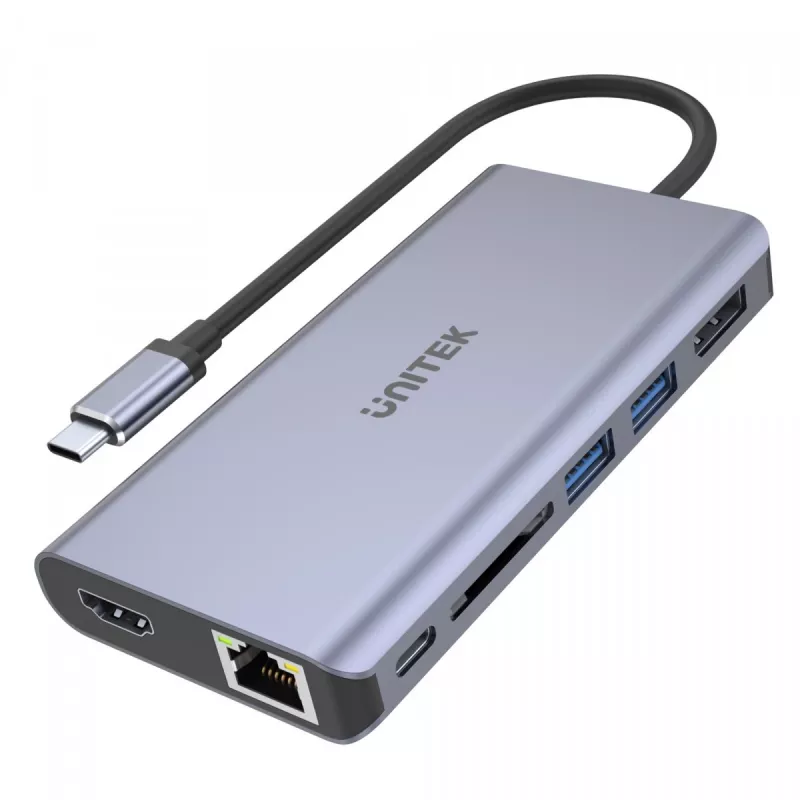

Hub UNITEK uHUB S7 USB 3.2 Gen 1 Type-C grigio

This USB-C docking hub provides 2 USB-A ports, a USB-C Power Delivery port, DisplayPort and HDMI video outputs, an SD card reader and Gigabit Ethernet in a compact aluminium enclosure. It connects to computers with a Thunderbolt 3 or USB-C port that supports DisplayPort Alt Mode and is bus-powered for plug-and-play use without an external adapter.

Advantages

The hub supports USB3.1 Gen1 data rates up to 5 Gbps and is backward compatible with USB2.0/1.1. USB-C Power Delivery delivers up to 100W (20V/5A) to the connected computer depending on the power adapter. Video output supports DisplayPort and HDMI up to 4K@30Hz, and MST allows streaming to two independent displays (HDMI limited to 1080p@60Hz when MST is active). The SD card reader accepts SDHC/SDXC cards up to 24mm and 2TB. Gigabit Ethernet supports IPv4/IPv6, Wake-on-LAN and IEEE 802.3 standards. The aluminium housing offers durability and a compact design.

Key specifications

• USB ports: 2 × USB-A (USB3.1 Gen1, up to 5 Gbps)
• USB-C Power Delivery: up to 100W (20V/5A), actual output depends on adapter
• Video outputs: DisplayPort and HDMI; up to 4K@30Hz
• MST support: up to 2 independent displays (HDMI limited to 1080p@60Hz with MST); MacOS does not support MST
• Card reader: SDHC / SDXC, supports cards up to 24mm and 2TB
• Ethernet: Gigabit Ethernet (10/100/1000 Mbps), IPv4/IPv6, COE, Wake-on-LAN, full/half duplex, IEEE 802.3 compatible
• Connection: USB-C connector; compatible with Thunderbolt 3 or USB-C with DisplayPort Alt Mode
• Power: Bus-powered, no external adapter required
• Housing: aluminium

How to use

Plug the docking hub into a computer USB-C or Thunderbolt 3 port that supports DisplayPort Alt Mode. If you need to charge the computer while using the hub, connect an appropriate USB-C power adapter to the USB-C PD port; the hub will deliver up to 100W depending on the adapter. Connect displays to the DisplayPort and/or HDMI outputs; when using MST to run two independent monitors, note that HDMI output will be limited to 1080p@60Hz and MacOS does not support MST. Insert SD cards into the card reader and connect wired network, USB devices or peripherals to the remaining ports. The hub is bus-powered and requires no additional drivers for typical plug-and-play operation.

Recommendations

Use a USB-C power adapter that provides sufficient wattage (up to 100W) to ensure full charging capability. For dual-monitor setups using MST, check that your computer’s USB-C/Thunderbolt controller supports MST and set display resolutions accordingly. On macOS, for multiple external displays consider using a different hub or native GPU outputs since macOS does not support MST.
