Hub USB EXSYS EX-1186HMVS-2

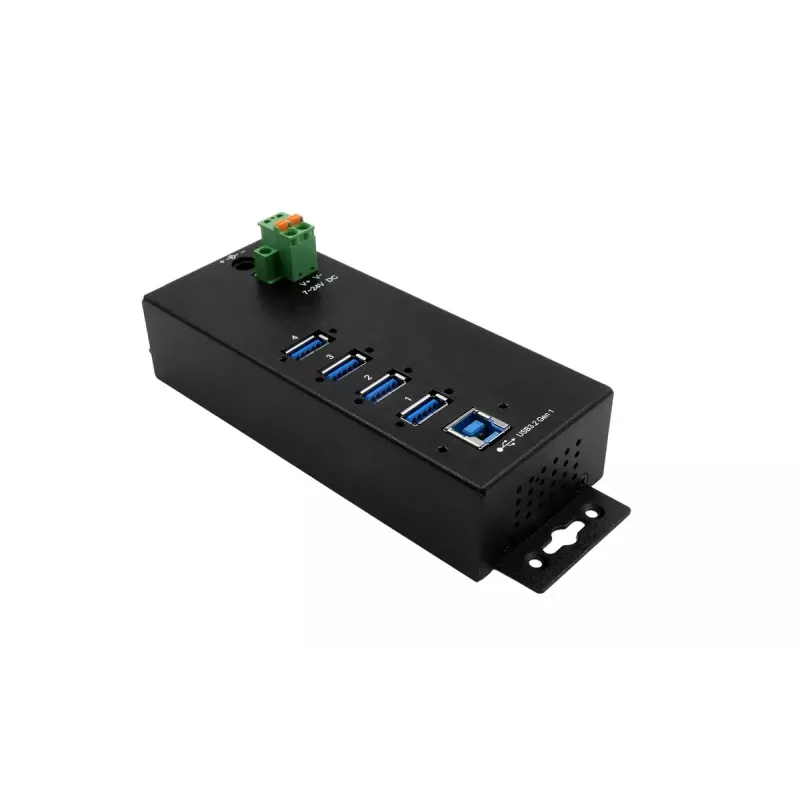

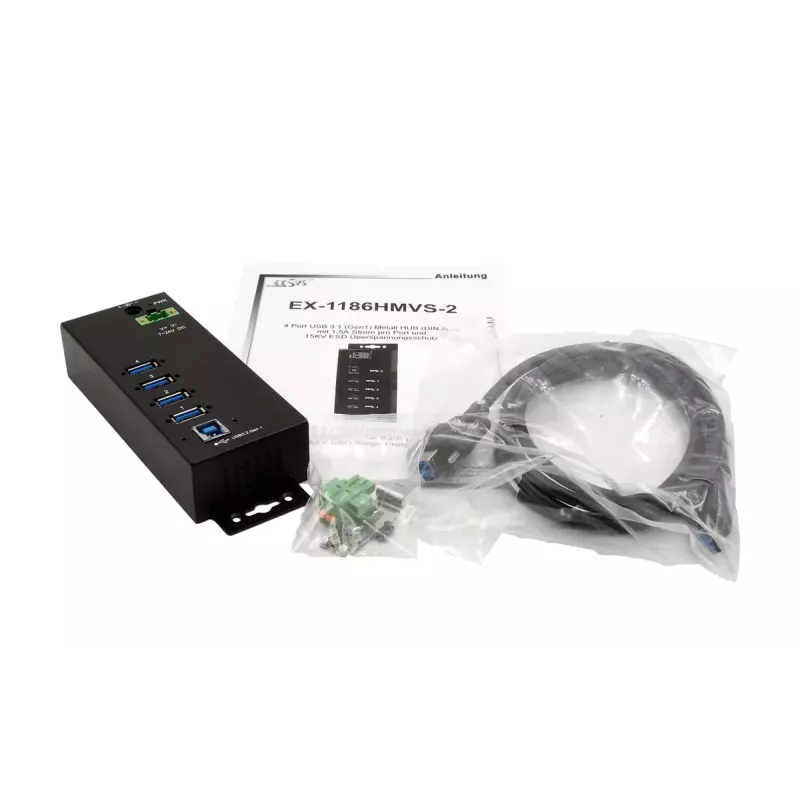

The EXSYS EX-1186HMVS-2 is a rugged USB hub with four screwable USB 3.2 Gen 1 Type-A outputs and a Type-B host interface. Housed in a durable metal enclosure with a black finish, the hub supports data transfer rates up to 5 Gbps (Hi-Speed USB 3.0) and is backward compatible with USB 1.1. It includes 15 kV ESD overvoltage protection and can be installed on a wall or mounted in a 19-inch rack. The device connects to a computer or server using the supplied USB 3.2 Gen 1 cable and can be powered either from the USB bus or via a two-wire terminal block (+7 V to +24 V).

Advantages

The EX-1186HMVS-2 provides four screwable Type-A ports that each support up to 1.5 A charging current, enabling simultaneous charging of phones and tablets while maintaining USB 3.2 Gen 1 data speeds. Its robust metal housing and 15 kV ESD protection increase reliability in industrial and public environments. Flexible mounting options (wall or 19-inch rack) and dual-power choices (USB bus or external terminal block) make the hub suitable for varied installations.

Suitable for

• Expanding USB connectivity for desktops and servers in offices and data centers
• Charging and connecting smartphones and tablets in kiosks, POS, or public access stations
• Industrial and embedded systems requiring durable, mountable USB hubs with ESD protection

Key specifications

• Model: EXSYS EX-1186HMVS-2
• Host interface: USB 3.2 Gen 1 (Type-B)
• Hub interfaces: 4 × USB 3.2 Gen 1 Type-A (screwable)
• Maximum data rate: up to 5 Gbps (Hi-Speed USB 3.0)
• Port charging: up to 1.5 A per port
• ESD protection: 15 kV overvoltage protection

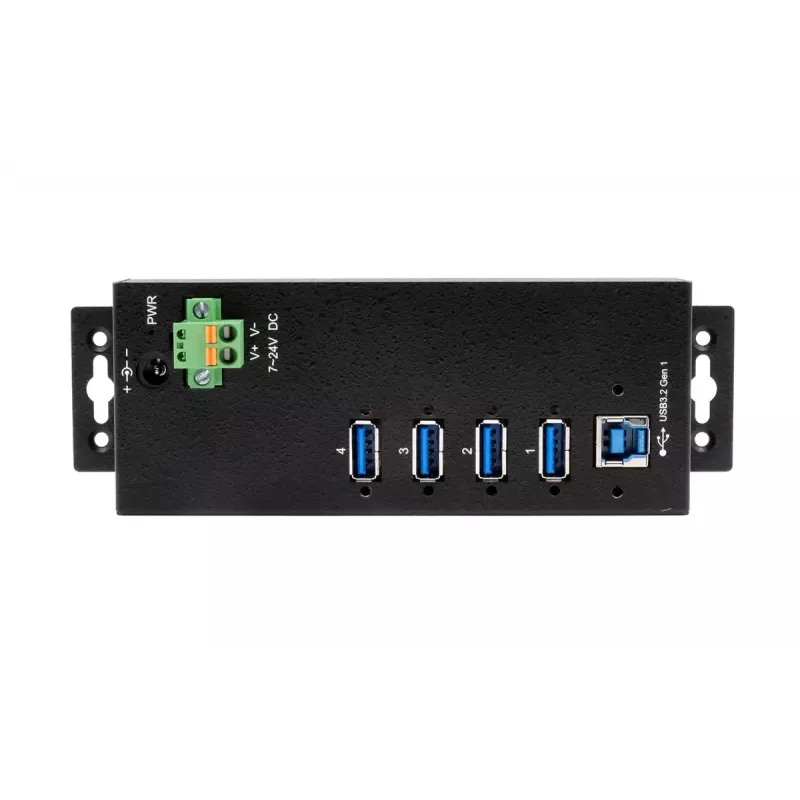

• Power: USB bus powered or external +7 V to +24 V via two-wire terminal block

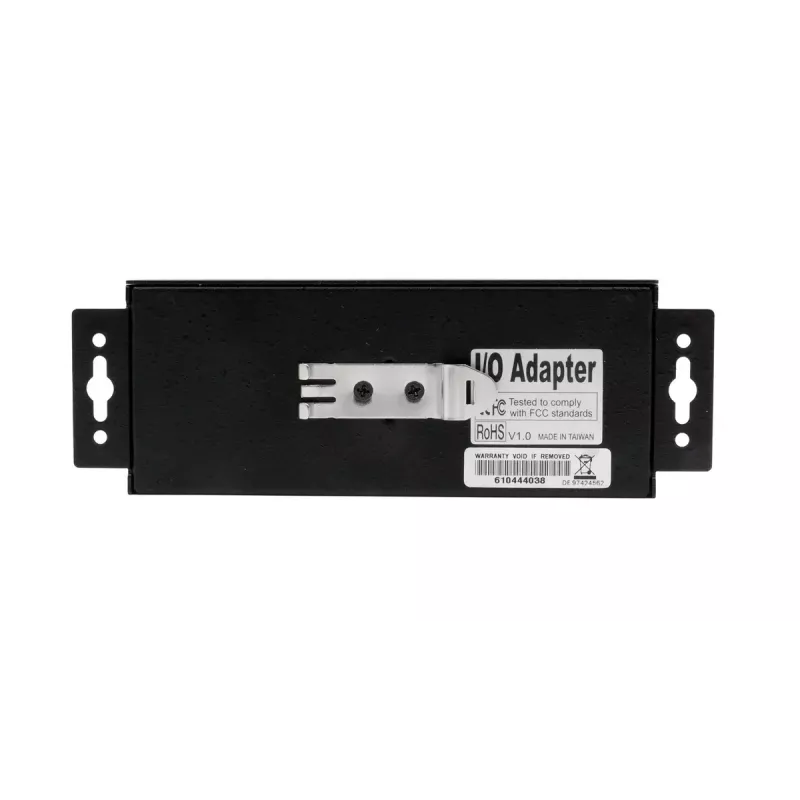

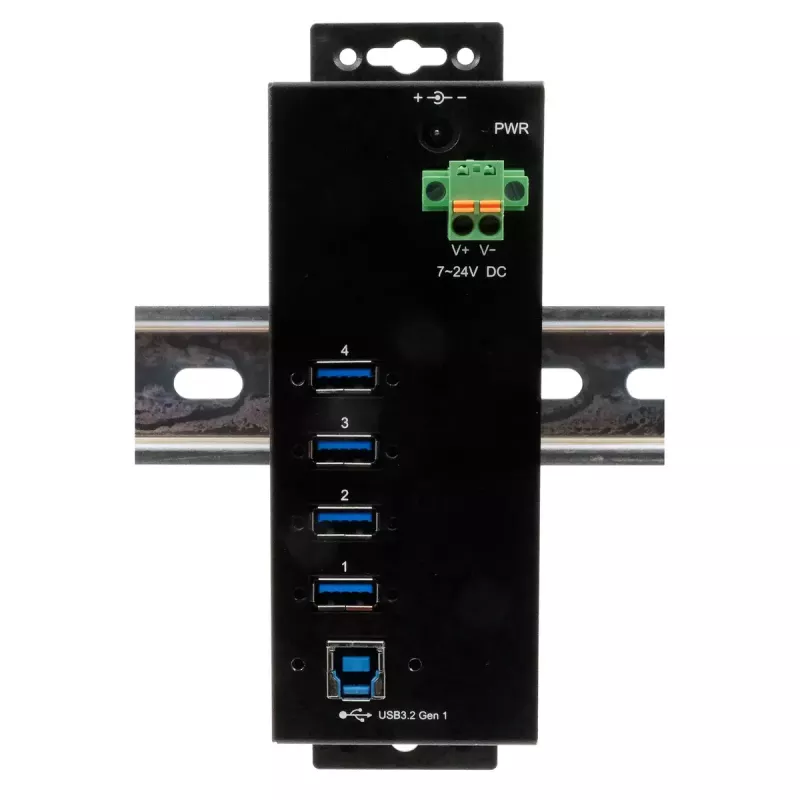

• Mounting: wall or 19-inch rack mountable
• Colour: Black

How to use

Connect the EX-1186HMVS-2 to your computer or server using the supplied USB 3.2 Gen 1 Type-B to Type-A cable. Mount the hub on a wall or install it in a 19-inch rack using appropriate hardware. Plug USB devices into the screwable Type-A ports and secure cables as needed. If higher or stable power is required, provide external power via the two-wire terminal block with a supply between +7 V and +24 V; otherwise use bus power from the host. The hub is plug-and-play and supports standard USB drivers.

Recommendations

For reliable charging and data transfer in industrial or public environments, secure cables to the screwable ports and choose external power when multiple high-current devices are connected. Ensure the external supply is within +7 V to +24 V and properly fused according to your installation standards.
