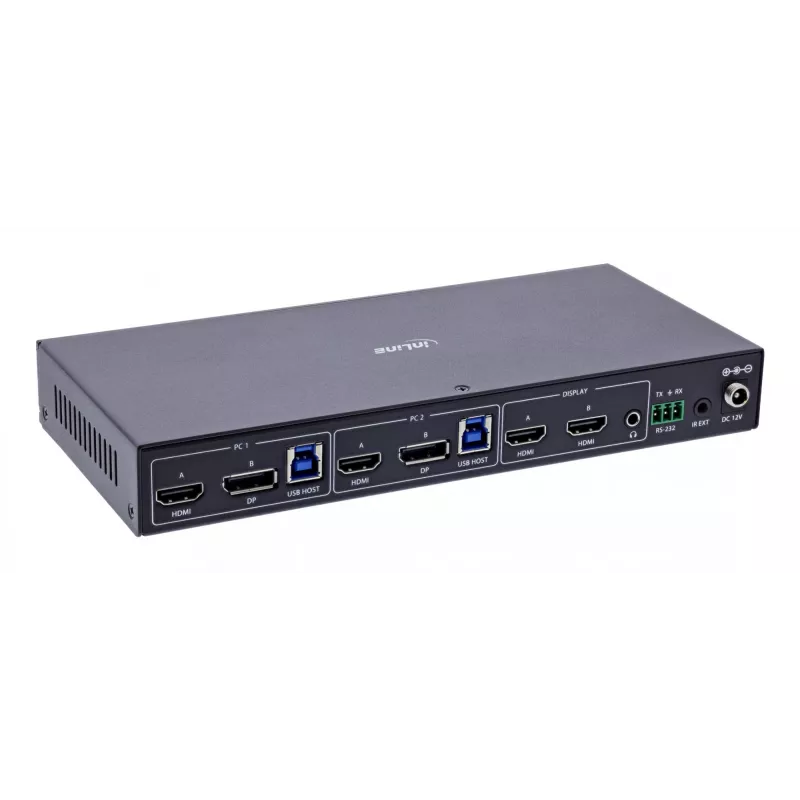

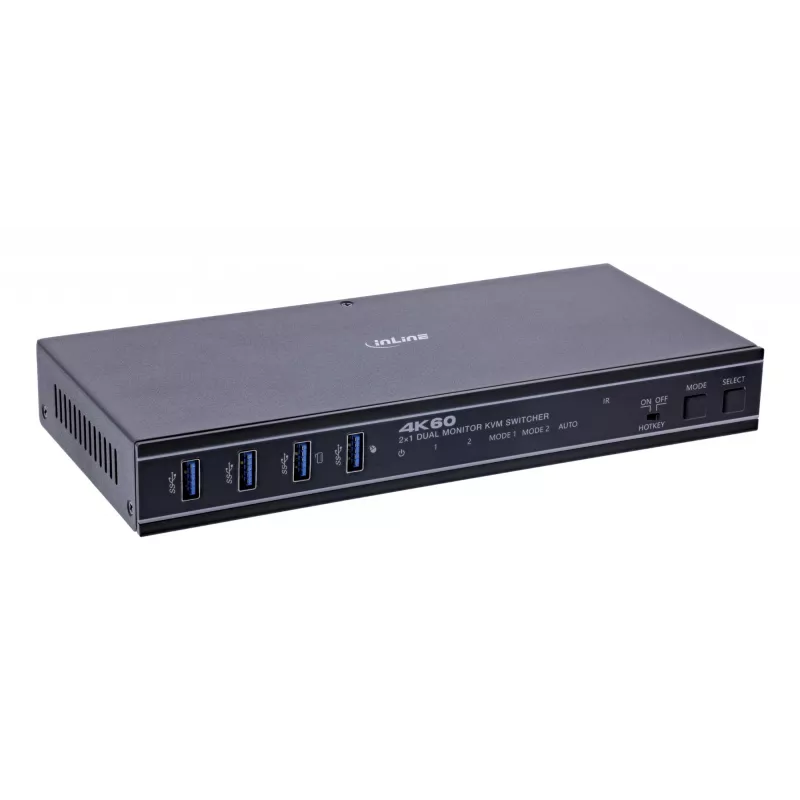

InLine 57885G Switch KVM, 2 vie, HDMI & DP, doppio monitor, 4K60Hz, hub USB, nero

The InLine 57885G is a 2-port KVM switch that lets you control two computers from a single setup with dual monitors, one keyboard, one mouse and multiple USB devices. It supports HDMI 2.0 and DisplayPort 1.2a with resolutions up to 4K@60Hz and HDR formats including HDR10, Dolby Vision and HLG. Switching between systems is possible via hotkey, button, IR remote control or RS-232 interface.

Key features

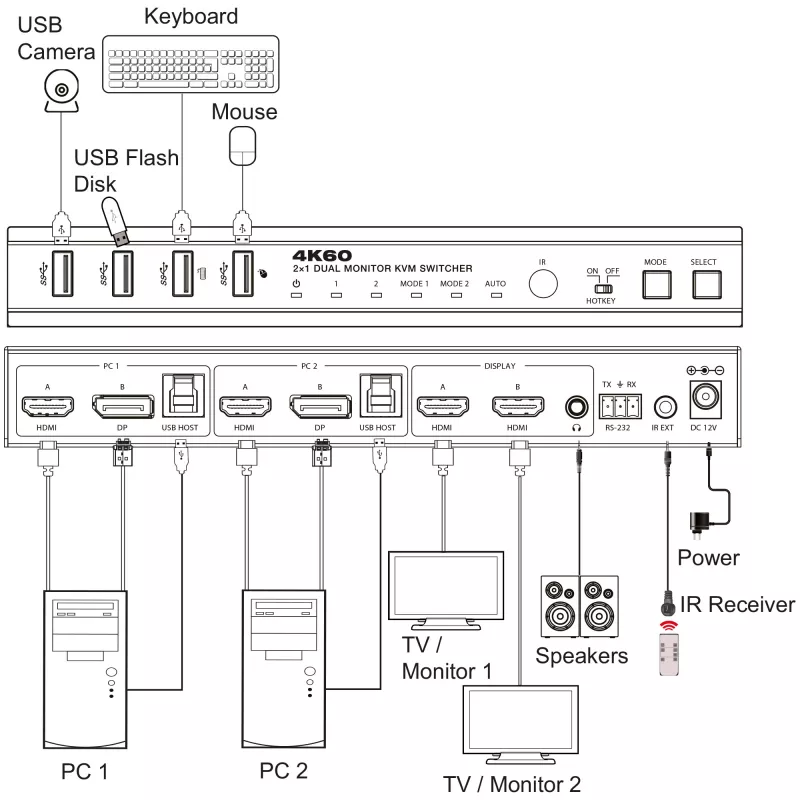

• Control two PCs with one keyboard, one mouse and multiple USB devices
• Dual monitor support
• HDMI 2.0 and DP 1.2a with resolutions up to 4K@60Hz and 2K@144Hz
• HDR support: HDR, HDR10, HDR10+, Dolby Vision, HLG
• Switching via hotkey, button, IR remote control or RS-232 interface
• Integrated USB 3.2 Gen.1 hub with four USB-A ports
• Metal housing, black
• Plug & play without drivers

Specifications

• Brand: InLine
• MPN: 57885G
• Product colour: Black
• Inputs: 2 × HDMI (Type A), 2 × DP (20-pin), 2 × USB Host (USB-B)
• Outputs: 2 × HDMI (Type A), 1 × 3.5 mm stereo audio output
• HDMI standard: HDMI 2.0
• DP standard: DP 1.2a
• HDCP version: HDCP 2.3
• Colour depth: 8 / 10 / 12 bits
• Colour spaces: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
• Supported audio formats HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD
• Audio output (L/R): PCM 2.0CH
• Latency: none
• CEC support: yes
• USB ports: 4 × USB 3.2 Gen.1 (USB-A)
• ESD protection: ±8 kV air / ±4 kV contact
• Housing: Metal, black
• Dimensions: 220 × 100 × 30 mm
• Weight: 626 g
• Operating temperature: 0–40 °C
• Storage temperature: –20–60 °C
• Humidity: 20–90 % (non-condensing)
• Recommended cable lengths HDMI: up to 5 m for 4K@60Hz, up to 10 m for 1080p
• External power supply: 100–240 V AC, 50/60 Hz input; 12.0 V DC, max. 1.0 A, 12.0 W output
• Average operating efficiency: 85.23%
• Efficiency at low load (10%): 78.53%
• Power consumption at zero load: 0.09 W

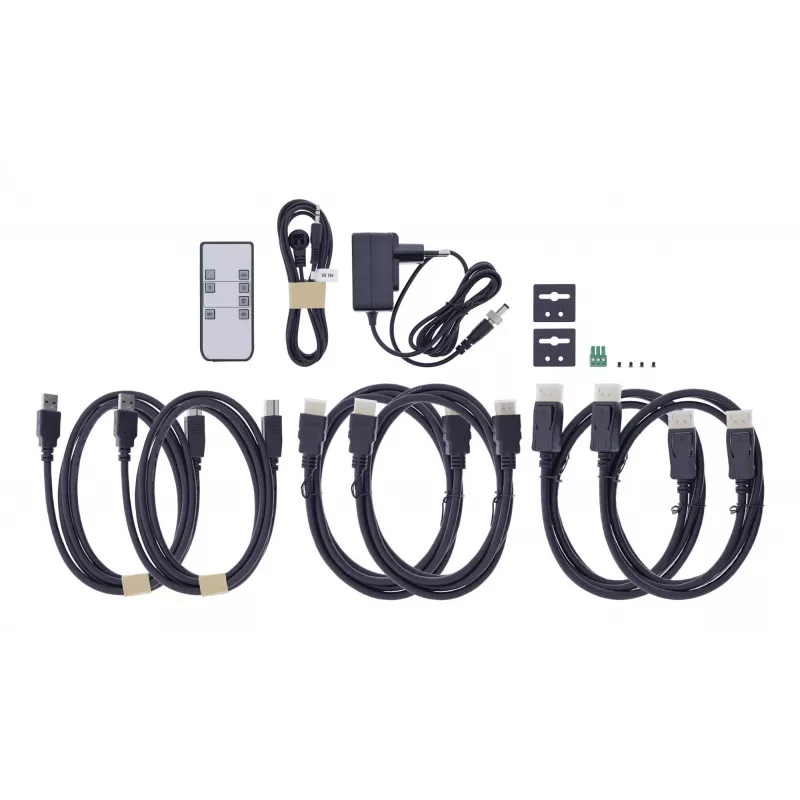

• Scope of delivery: 1 × KVM switch, 1 × IR remote control, 1 × IR receiver cable (1.5 m, 38 kHz), 2 × HDMI cables (1.5 m, male/male), 2 × DP cables (1.5 m, male/male), 2 × USB cables (USB 3.2 Gen.1, USB-A to USB-B, 1.8 m), 1 × 12 V/1 A power supply with lock, 1 × 3-pin terminal connection plug, 2 × mounting brackets, 4 × screws (KM3×4), 1 × user manual in German/English
• Number of CPU: 2
• Number of consoles: 1
• Audio outputs per console: 3.5mm jack x1
• Audio per CPU: 3.5mm jack x1
• Video outputs per console: HDMI x2
• Screen connectors per console: 1
• Peripheral outputs per console: USB-A female x2
• Video inputs per CPU: DisplayPort x1 / HDMI x1
• USB peripherals: Yes
• USB specification: USB 3.2 Gen.1
