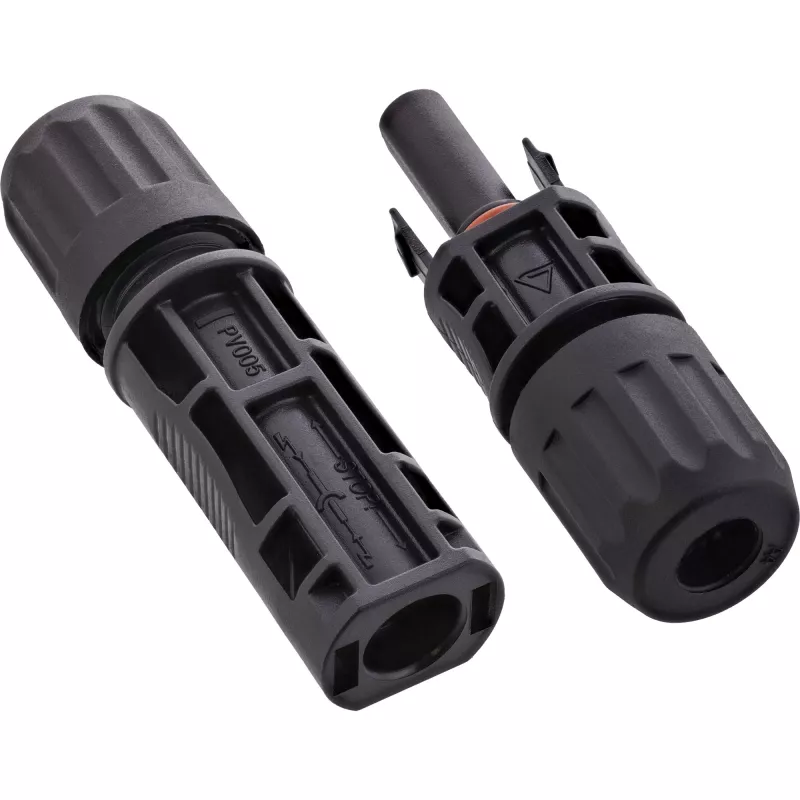

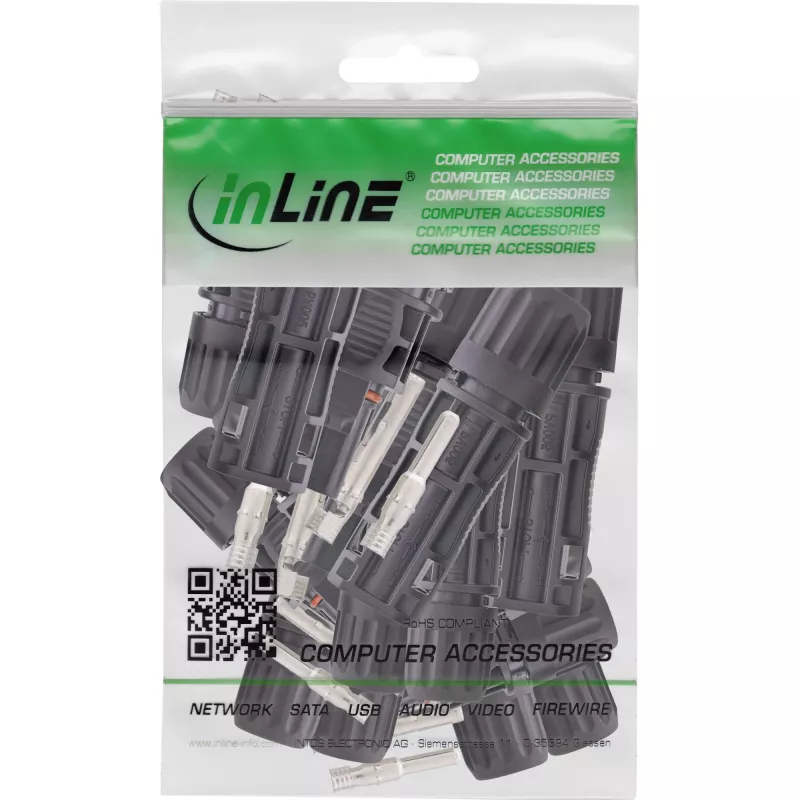

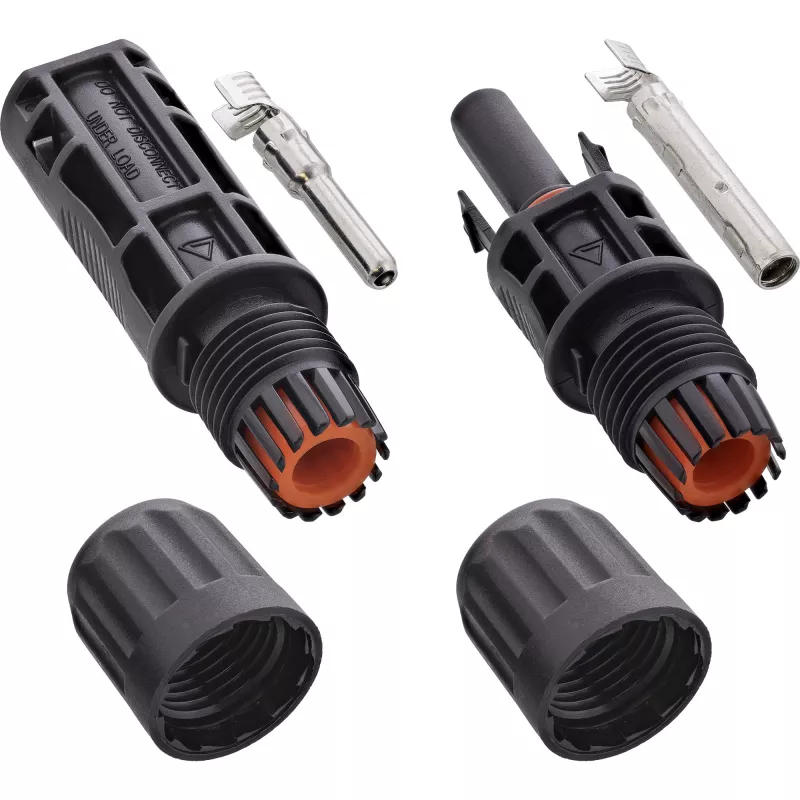

InLine 94010 connettore per cavi Standard4/MC4/PV4 nero connettore maschio/femmina

The InLine 94010 wire connector is a photovoltaic plug and socket set designed for solar panel installations. It provides Standard4/MC4/PV4 compatibility in a black housing and includes both male and female connectors. Certified to TÜV and RoHS standards, this connector set is intended for reliable electrical connections in PV systems and complies with common safety and environmental requirements.

Advantages

The connector set supports widely used photovoltaic connector standards (Standard4, MC4, PV4), offers a compact design with a 24 mm width and 112 mm depth, and has a low weight of 24 g for easy handling. TÜV and RoHS certifications confirm compliance with safety and material restrictions typical for solar accessories.

Suitable for

Key specifications

How to use

Match the male and female halves of the connector set to the corresponding Standard4/MC4/PV4 cables in your PV installation. Ensure cables are stripped to the correct length and that contact surfaces are clean before crimping or inserting conductors according to the cable and connector manufacturer's instructions. After assembly, verify secure locking of the plug and socket and test the electrical continuity and insulation resistance as part of standard commissioning procedures.

Recommendations

Use the connector set only within the specified compatibility (Standard4/MC4/PV4) and in accordance with local electrical codes. Avoid exposing the assembled connectors to mechanical strain or corrosive environments beyond the product's intended use. For safety, perform installation and testing by qualified personnel.
