InLine Cavo da installazione Cat.7a PiMF 4x2x0.58 AWG23, 1200MHz, LSZH, 500m

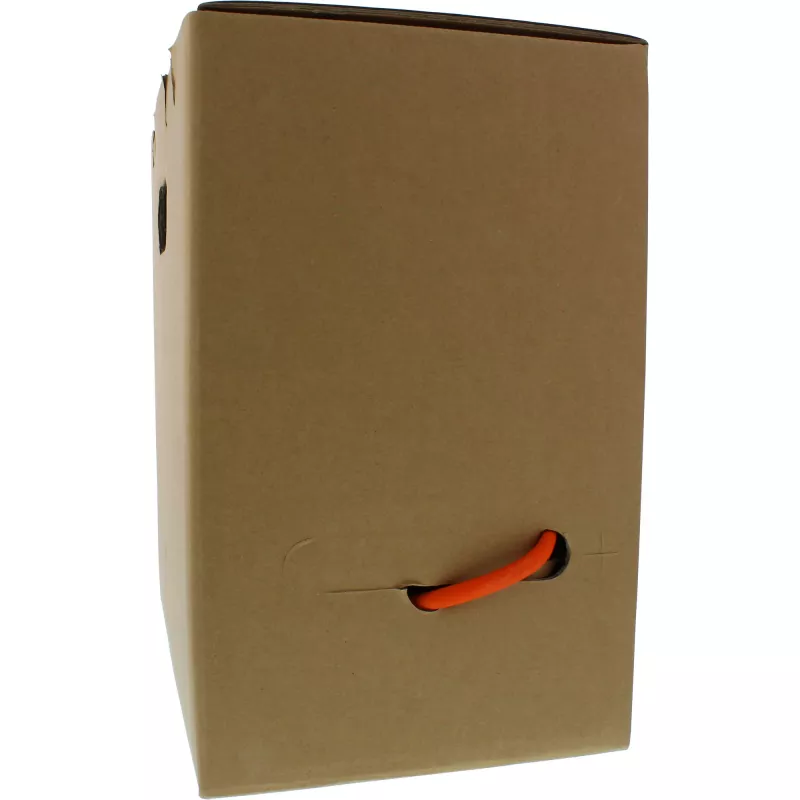

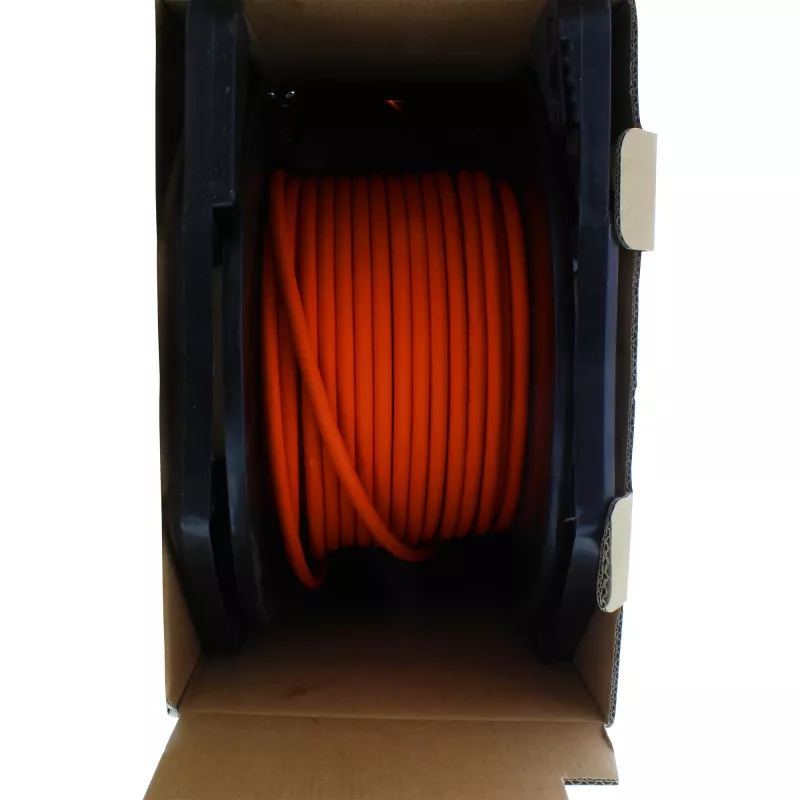

The InLine Installation cab. Cat.7a PiMF 4x2x0.58 AWG23 1200MHz LSZH 500m is a Cat.7a installation cable supplied on a drum box for convenient length reference and easy handling on site. The cable is manufactured as S-FTP (pairs in metal foil plus overall braid) with full copper conductors, an orange halogen-free (LSZH) jacket and meter-printing along the sheath. It supports transmission up to 1200 MHz and is intended for structured cabling and high-performance network installations. The drum box packaging uses a plastic roller fixed in a cardboard box to allow simple unwinding and protection during transport and storage.

Advantages

Drum box delivery reduces handling time on site and eliminates the need for additional drum tooling, while the lightweight, stackable packaging is easy to carry and suitable for packing in construction vehicles. Cardboard protection helps prevent pollution and mechanical damage to the cable and reduces average costs for small quantity requirements. The LSZH jacket and full copper conductors provide reliable electrical performance and lower fire hazard emissions.

Suitable for

• Structured Ethernet networks up to 10 Gbps
• High-performance data centers and server rooms
• Cable installation in commercial and industrial buildings
• Applications requiring low-smoke zero-halogen (LSZH) cables

Key specifications

• Cable type: Cat.7a installation cable

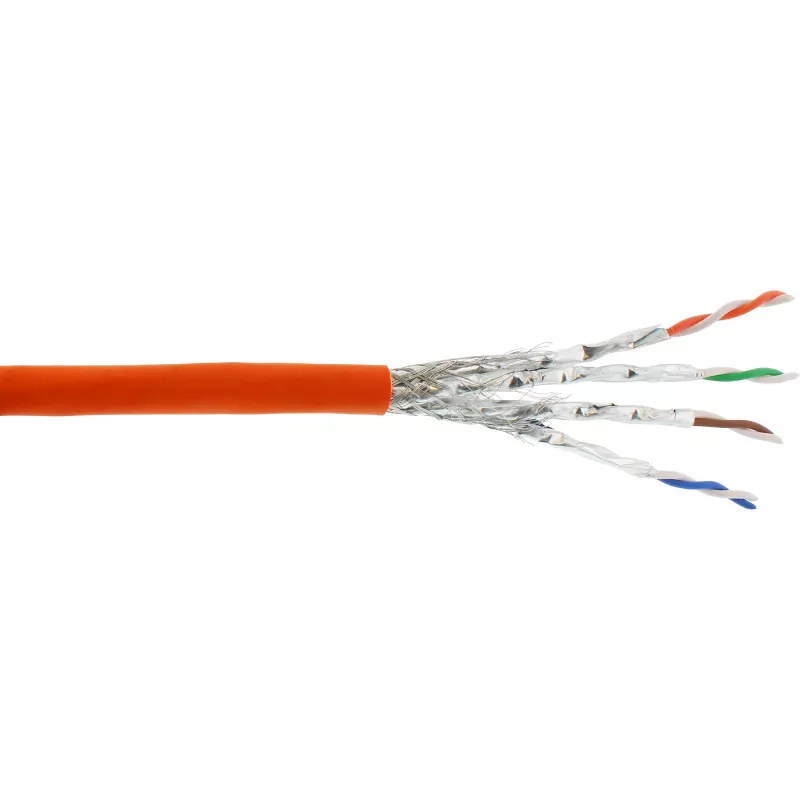

• Construction: 4x2xAWG23/1 S-FTP (pairs in metal foil) with overall braid shielding
• Conductor: full copper, AWG23 (Ø approx. 0.58 mm)
• Frequency range: up to 1200 MHz
• Data rate: suitable up to 10 Gbps
• Impedance: 100 Ω
• DC resistance: max. 87 Ω/km
• Outer sheath: LSZH, orange
• Cable diameter: approx. 8.2 mm
• Installation temperature: 0 °C to 50 °C; Operating temperature: -20 °C to 60 °C
• Fire reaction: Eca according to EN 50575:2014/A1:2016
• Length / packaging: 500 m on cable drum (drum box available for 50 m, 100 m, 300 m only)

How to use

Unpack the drum box or cable drum and position it so the cable can unwind freely from the plastic roller. Pull the required length and cut the cable following standard installation practices. Terminate the cable with appropriate Cat.7a compatible connectors and follow shield termination procedures to maintain S-FTP performance. Observe the printed meter markings for accurate measurement during installation and avoid sharp bends or crushing to protect the shielding and conductor integrity.

Recommendations

Install within the recommended temperature range and avoid prolonged exposure to direct sunlight or aggressive chemicals. For runs longer than standard horizontal cabling, verify link performance and grounding of overall braid shielding. Choose the drum box packaging for smaller quantities (50 m, 100 m, 300 m) to simplify handling; 500 m length is supplied on a cable drum.
