InLine cavo da installazione Cat.7a, S/FTP (PiMF) 4x2x0.58 AWG23 1200MHz B2ca 50m

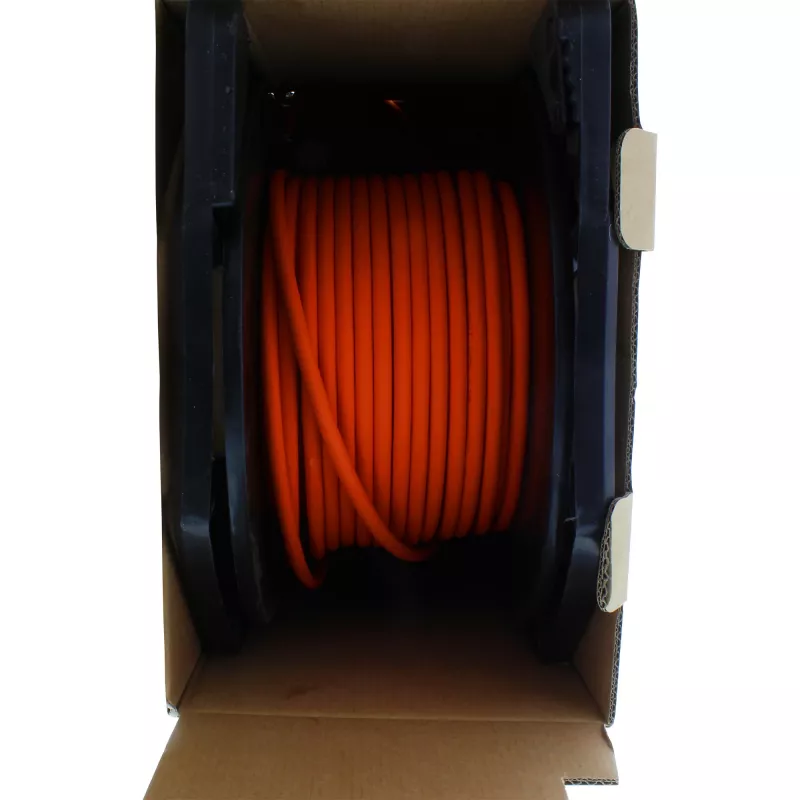

The InLine installation cable Cat.7a S/FTP on a cardboard reel box delivers 50 m of high-performance network cable designed for structured cabling and installation environments. The packaging uses a plastic reel fixed inside a reinforced cardboard box to enable easy, tangle-free removal of the required length and to protect the cable during storage and transport. The cable supports transmission up to 1200 MHz and data rates up to 10 Gbit/s, with full-copper conductors and an orange halogen-free (LSZH) sheath.

Advantages

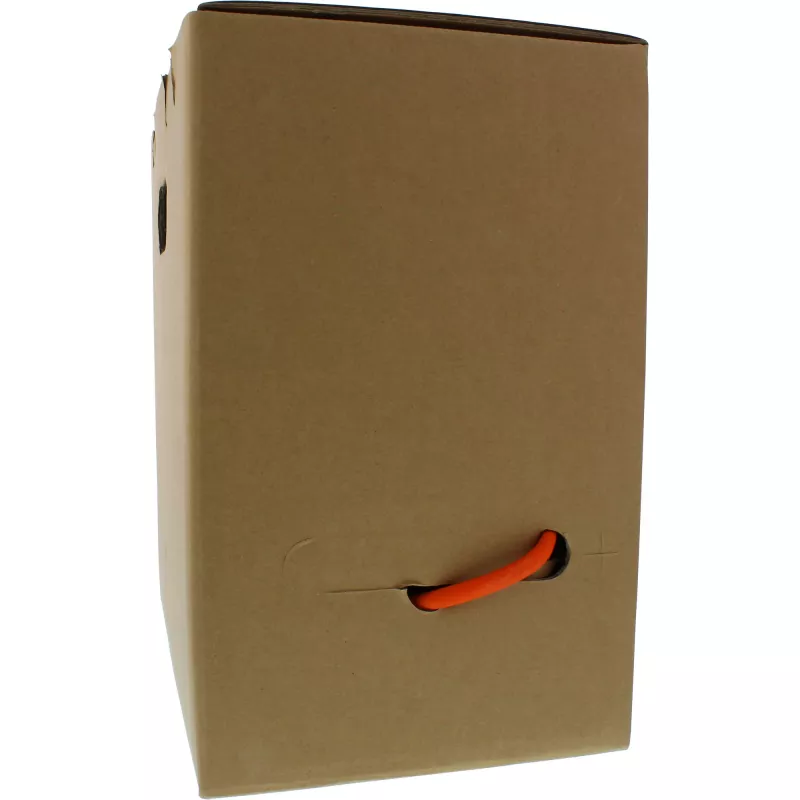

The drum box reduces handling effort on site by allowing direct unwinding without an extra device and lowers transport costs due to low weight and stackable, handy packaging. The reinforced cardboard protects the cable from dirt and damage, the remaining-metre marking on the cable simplifies cutting to length and helps reduce waste and cutting costs for small quantities.

Suitable for

• Structured LAN installations in offices and data rooms
• High-speed Ethernet up to 10 Gbit/s
• Permanent cabling in installation channels and conduits
• Projects requiring halogen-free (LSZH) cable sheaths

Key specifications

• Cable type: Cat.7a S/FTP installation cable
• Length: 50 m
• Bandwidth: up to 1200 MHz

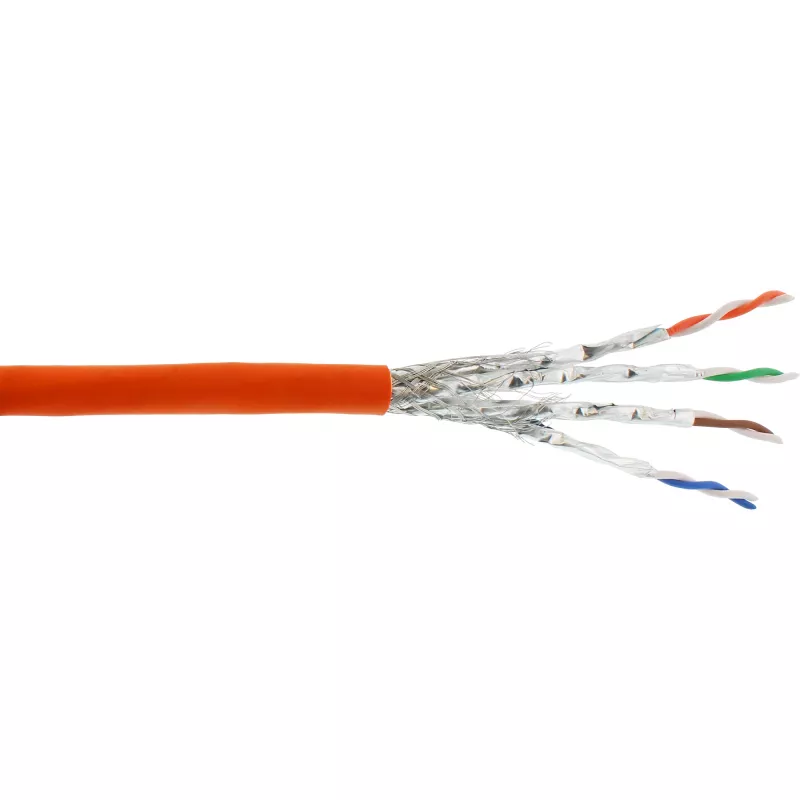

• Construction: 4 x 2 x AWG23/1 PIMF (0.58 mm²), pairs in metal foil, overall braided shielding
• Conductors: full copper cores
• Impedance: 100 Ω
• DC resistance: max. 93.8 Ω/km
• Sheath: halogen-free (LSZH), colour: orange
• Cable diameter: approx. 7.8 mm
• Temperature range: Installation 0 °C to 50 °C; Operation −20 °C to 60 °C; Storage −20 °C to 50 °C
• Fire classification: B2ca according to EN 50575:2014/A1:2016
• Additional: remaining-metre indication on cable

How to use

Place the reel box at the desired cable route and pull the cable from the plastic reel through the box opening to unwind the required length. Cut the cable at the remaining-metre marking or required length and perform termination with compatible connectors and patch panels according to Cat.7a installation practices. Ensure bending radii and installation temperatures follow the specified limits to maintain performance.

Recommendations

For best results, store and install the cable within the given temperature ranges, avoid sharp bends and mechanical stress, and use approved termination tools and components for Cat.7a S/FTP to preserve shielding integrity and achieve reliable 10 Gbit/s performance.
