InLine Cavo da installazione duplex S/FTP PiMF Cat.7a AWG23 1200MHz, LSOH, 500m

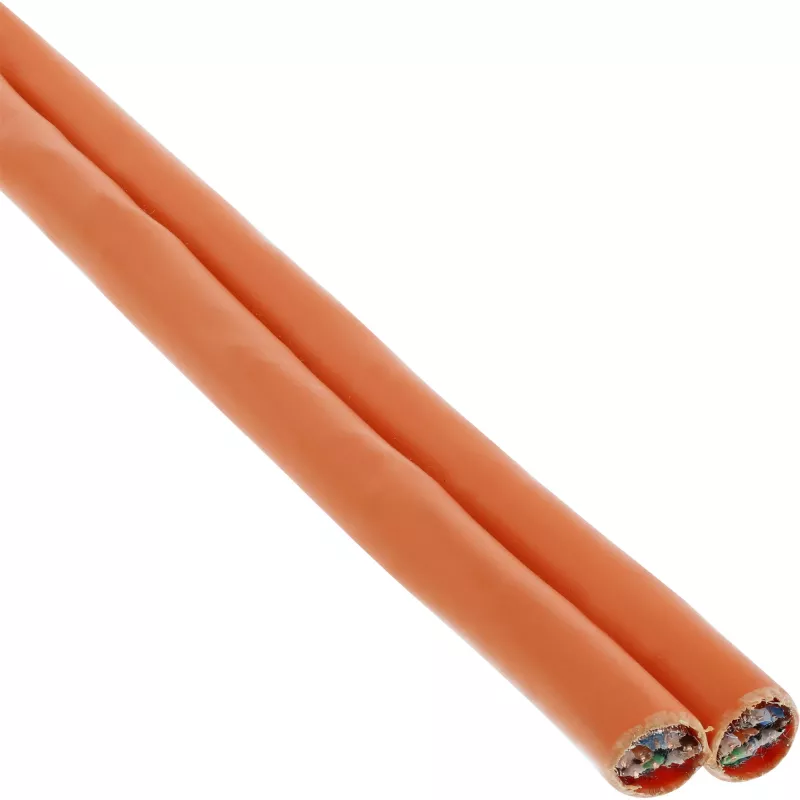

The InLine Duplex Installation Cable S/FTP PiMF Cat.7a AWG23 1200MHz is supplied on a removable drum box that allows easy unwinding and convenient access to the required length. The cable is a duplex installation type with full copper conductors, an orange LSOH jacket and meter printing for straightforward measurement during installation.

Advantages

The drum box reduces handling time on site and eliminates the need for additional drum tooling. Its lightweight, stackable cardboard packaging protects the cable from dirt and damage while remaining easy to carry and suitable for parcel shipment. For small quantities the packaging helps reduce overall costs. The cable construction (S/FTP PiMF) and Cat.7a rating provide high shielding performance for reliable high-speed data transmission.

Suitable for

• Structured network installations in buildings
• High-speed data transmission up to 10 Gb/s
• Installation runs requiring halogen-free (LSOH) cabling
• Situations where an easily unwound drum box is preferred (50 m / 100 m bundles; note 300 m & 500 m supplied on drum)

Key specifications

• Type: Duplex installation cable, Cat.7a

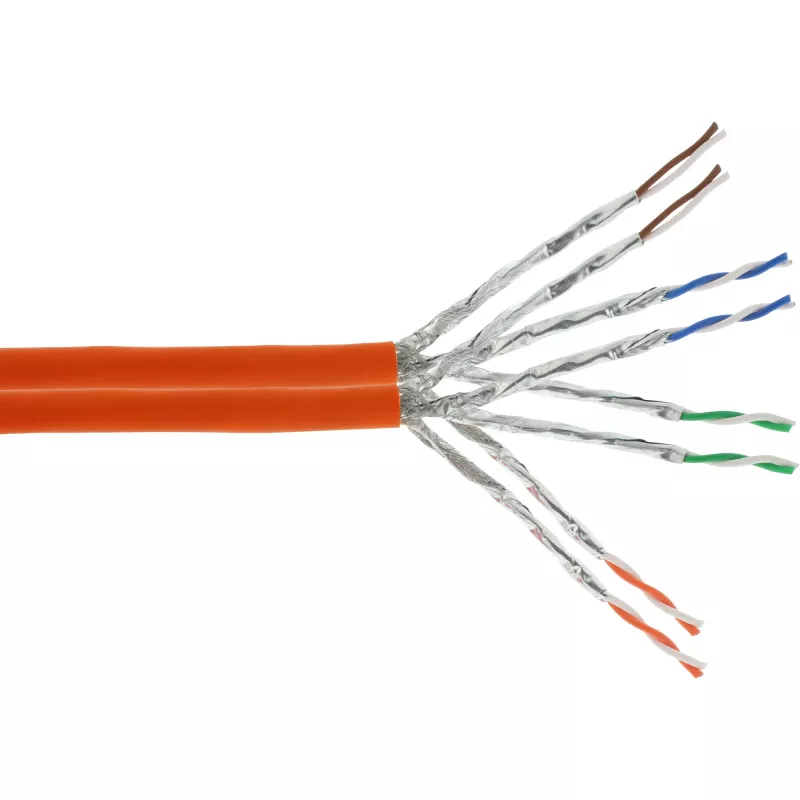

• Construction: (2x) 4x2x AWG23/1 S-FTP PiMF with overall braid
• Bandwidth: up to 1200 MHz
• Data rate: suitable up to 10 Gb
• Conductors: full copper
• Impedance: 100 Ω
• DC resistance: max. 87 Ω/km
• Jacket: halogen-free (LSOH), orange
• Cable diameter: approx. 2 x 8.2 mm
• Temperature: installation 0 °C to 50 °C; operating −20 °C to 60 °C
• Fire reaction: Eca according to EN 50575:2014 / A1:2016
• Length: 500 m (product variant); meter-printing on cable

How to use

Place the drum box on a stable surface or mount the plastic roller to allow free unwinding. Pull the cable to the required length and cut at the marked meter printing. Follow standard installation practices for Cat.7a S/FTP PiMF cables: avoid tight bending radii, maintain separation from strong electrical sources when required, and ensure proper termination with compatible connectors and shielding continuity to preserve performance.

Recommendations

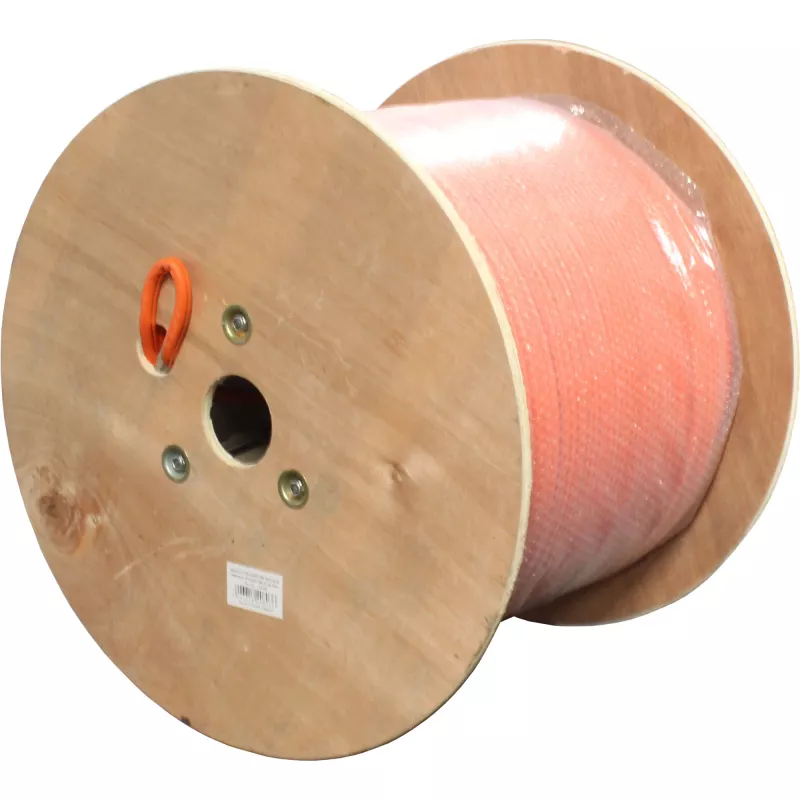

For on-site handling, use the drum box for 50 m and 100 m bundles to simplify deployment; 300 m and 500 m lengths are supplied on a single drum. Store in a dry environment and avoid prolonged exposure to direct sunlight to preserve the LSOH jacket and cable performance.
