InLine cavo SAS slim, SFF-8654 a 4x SATA 7-Pin, 12 Gb/s, 0,5 m

Efficient data connection:Connects SAS controllers to up to four SATA devices – ideal for professional storage environments.
High transfer rate:Supports up to 12Gb/s per channel for fast and stable data transfer.
Space-saving design:Slim SAS design allows for optimal cable routing even in compact server enclosures.
Secure connection: With locking clip on the SFF-8654 connector for reliable connection in continuous use.
Broad compatibility: SFF-8654 to 4x SATA 7-pin – suitable for use with HBA cards, RAID controllers, JBOD, and DAS.

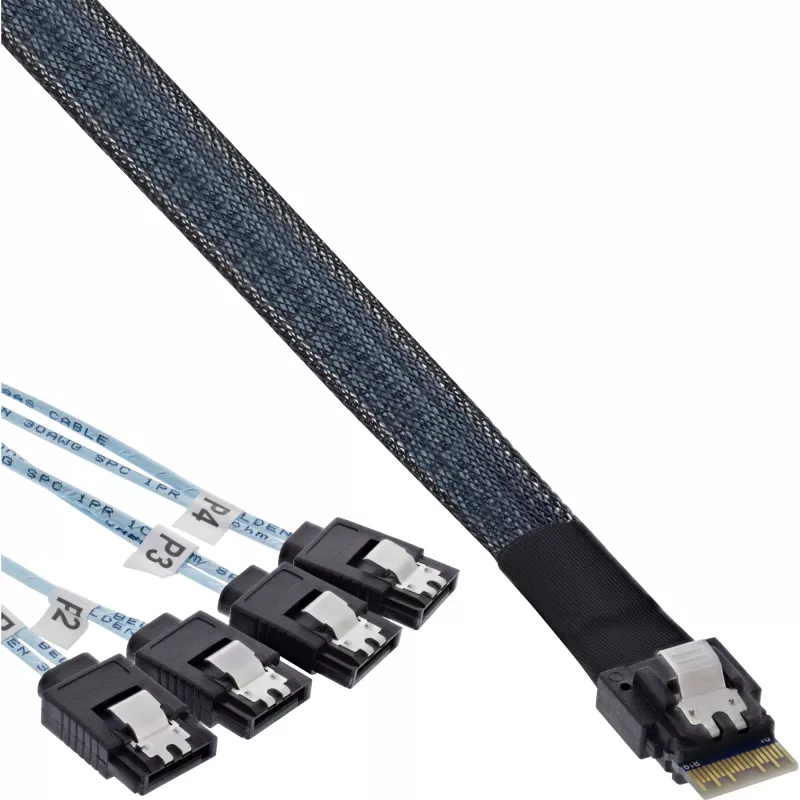

The InLine® Slim SAS cable with an SFF-8654 4i connector on one end and four SATA 7-pin connectors on the other is specially designed for professional use in server and storage environments. It enables the connection of modern SAS controllers with up to four SATA hard drives or SSDs. Thanks to support for up to 12 Gb/s per channel, fast and stable data transfer is possible – even with data-intensive applications. The robust locking clip on the Slim SAS connector ensures a secure fit and protects against accidental removal. The space-saving Slim SAS design also allows for flexible cable routing, even in confined spaces. The cable is ideal for use in JBOD, DAS, or other enterprise storage solutions. Its high-quality workmanship and precise specifications make it the optimal choice for professional applications.

Connector type:Slim SAS 4i (SFF-8654) to 4x SATA 7-pin
Transfer rate:Up to 12Gb/s per channel
With locking clip:For secure connection
Specification:Compliant with SAS 4.0 SFF-8654
Use:Internal connection cable for servers, JBOD, DAS

InLine Slim SAS cable, SFF-8654 to 4x SATA 7-pin, 12Gb/s, 0.5m. Cable length: 0.5 m, Connector 1: SFF-8654 male, Connector 2: 4x SATA 7-pin. Dimensions (WxDxH): 14 x 500 x 11 mm. Package width: 120 mm, Package depth: 165 mm, Package height: 20 mm

How to use

Connect one end of the InLine Slim SAS cable to the controller card’s SAS port and the other end to the SAS device’s internal port. Ensure secure seating of connectors and route the cable to avoid sharp bends and interference with cooling airflow. Power the system and verify device recognition in the controller or operating system BIOS/firmware.

Recommendations

For best results, use the slim SAS cable in environments where space is limited and maintain manufacturer-recommended bend radii. Verify compatibility with your specific controller model and firmware before installation.
