InLine cavo telefonico per installazione 8 fili massiccio 4x2x0,6mm schermato 100 m

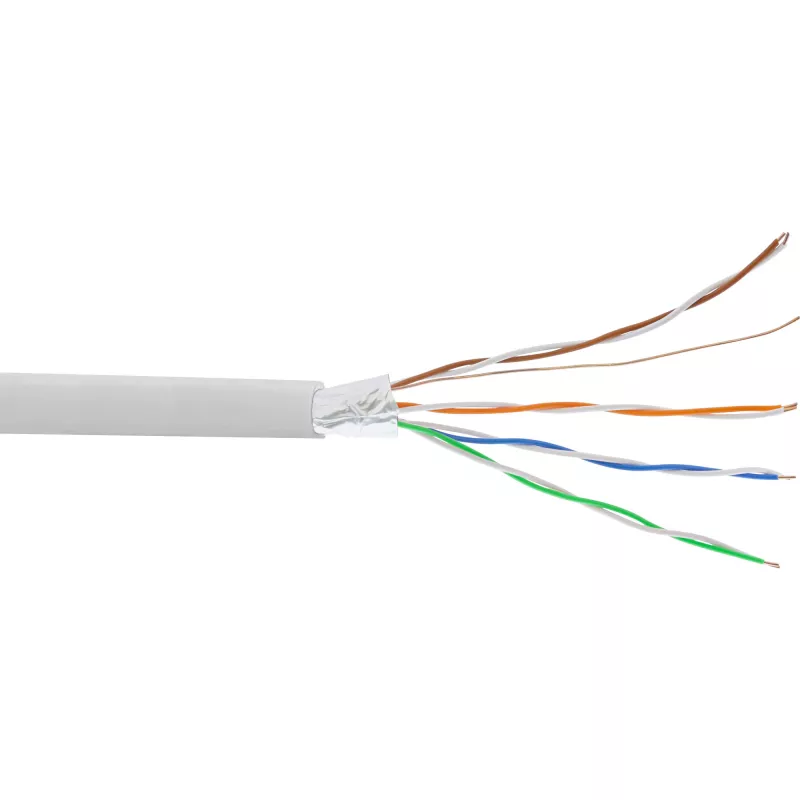

The InLine Telephone Installation Cable 8 Wire solid 4x2x0.6mm shielded 100m is a shielded telephone cable with eight solid conductors arranged as four pairs. Conductors are made of CCA (copper-clad aluminum) and the pairs are color-coded for easy identification. The cable includes overall foil shielding with a drain wire and is sheathed in 0.5 mm PVC, supplied on a 100 m roll in beige color.

Advantages

The use of CCA conductors provides a cost-effective alternative to solid copper while maintaining adequate electrical performance for telephone lines. Overall foil shielding and a drain wire reduce electromagnetic interference, improving signal clarity. Solid 0.6 mm conductors and pair color-coding simplify termination and installation.

Suitable for

• Fixed telephone wiring in residential buildings
• Telephone and low-frequency voice cabling in commercial premises
• Internal horizontal cabling between patch panels and telephone sockets

Key specifications

• Brand: InLine
• Model/MPN: 69987
• EAN: 4043718013487
• Configuration: 8 solid wires (4 pairs)
• Conductor type: CCA (copper-clad aluminum)
• Conductor dimensions: 4x2x0.6 mm
• Shielding: overall foil with drain wire
• Jacket material: PVC, 0.5 mm
• Length: 100 m
• Color: beige

How to use

Strip the outer PVC jacket carefully to expose the four color-coded pairs. Separate and trim individual conductors to the required length for the terminal or connector. Terminate each pair according to the telephone system's wiring standard, ensuring good contact with the solid CCA conductors. If grounding is required, connect the drain wire to the system ground to maintain the effectiveness of the foil shield.

Recommendations

For best performance, use this cable for indoor telephone or low-frequency voice installations. Avoid running the cable parallel to high-voltage power lines for long distances. When installing in environments with heavy electromagnetic interference, verify grounding of the drain wire and consider additional shielding or alternative copper conductors if higher conductivity is required.
