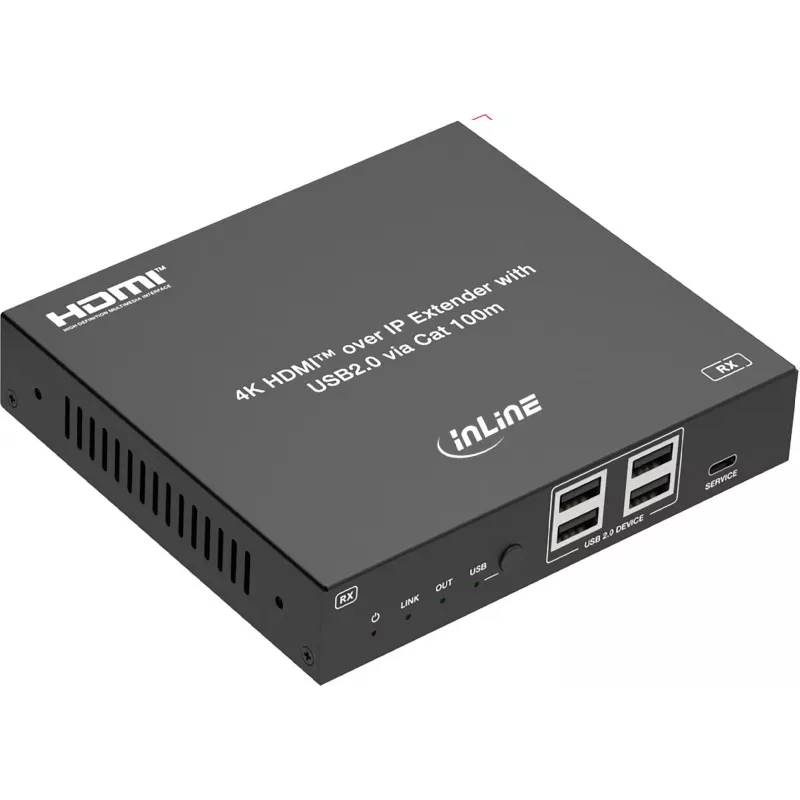

InLine® KVM Extender su IP, HDMI 4K/60Hz, 100 m, ricevitore (RX) (57886H)

Ultra-low latency 4K@60Hz KVM extension over IP with YUV 4:4:4 color, reaching up to 100 meters over standard Cat5e/6/7 cabling. This receiver unit pairs with the InLine transmitter to create a flexible point-to-point or switched multipoint KVM system, delivering uncompressed HDMI video, USB keyboard/mouse control, and embedded audio with HDCP 2.2 compliance.

Overview

The InLine 57886H is the receiver (RX) component of an IP-based KVM extender set, engineered for professional AV and IT environments where a workstation must be operated from a remote location. It connects to a Gigabit Ethernet network and outputs HDMI 4K UHD video at 60Hz with 4:4:4 chroma subsampling for crisp text and graphics. Two USB 2.0 ports allow direct connection of keyboard and mouse, while the integrated EDID management ensures consistent display behavior. The metal chassis is wall-mountable and includes a 5V/2A power adapter.

What stands out

• True 4K UHD at 60Hz with YUV 4:4:4 color for pixel-perfect image quality.
• Ultra-low latency IP transmission over Cat5e/6/7 up to 100 meters.
• Supports point-to-point, point-to-multipoint, and multipoint-to-multipoint via Gigabit switch with IGMP.
• HDCP 2.2 and 1.4 compliant for protected content playback.
• Plug-and-play with EDID management and no driver installation required.
• Robust metal housing with wall-mount option for clean installations.

Technical details

• Product type: KVM Extender Receiver (RX)
• Connectivity technology: IP over Gigabit Ethernet (RJ45)
• Video output: 1x HDMI Type A Female
• Maximum resolution: 3840 x 2160 @ 60Hz (4K UHD), YUV 4:4:4
• Transmission distance: up to 100 m (330 ft) over Cat5e/6/7
• USB ports: 2x USB 2.0 Type A Female (for keyboard and mouse)
• Network interface: 1x RJ45 Gigabit Ethernet
• HDCP support: HDCP 2.2 / 1.4
• Audio: HDMI embedded audio
• EDID management: Yes
• Chassis material: Metal
• Mounting: Wall-mountable
• Power supply: DC 5V / 2A (adapter included)
• Operating modes: Point-to-point, point-to-multipoint, multipoint-to-multipoint (via Gigabit switch with IGMP)

Our verdict

For integrators and IT administrators needing reliable, high-resolution KVM extension over existing network infrastructure, the InLine 57886H receiver delivers exceptional 4K60 performance with minimal latency. Its flexible IP architecture and robust build make it a future-proof choice for control rooms, digital signage, and remote workstation applications.
