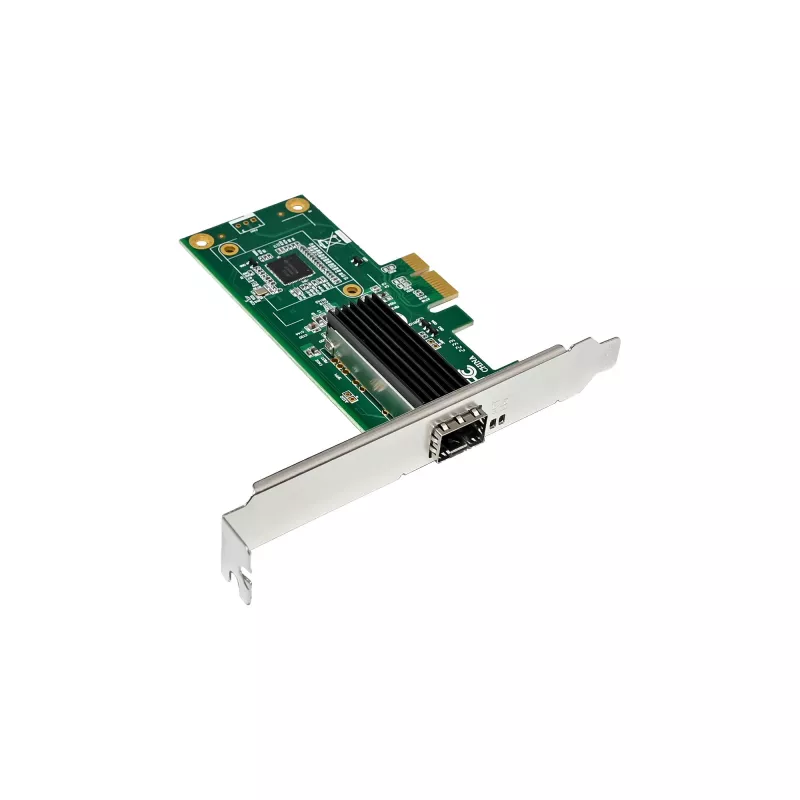

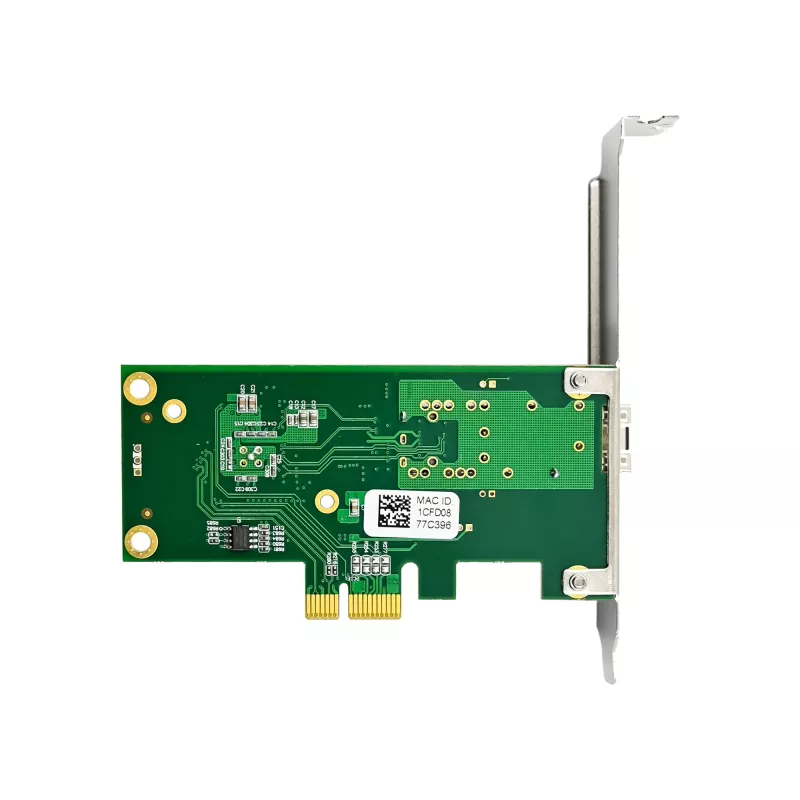

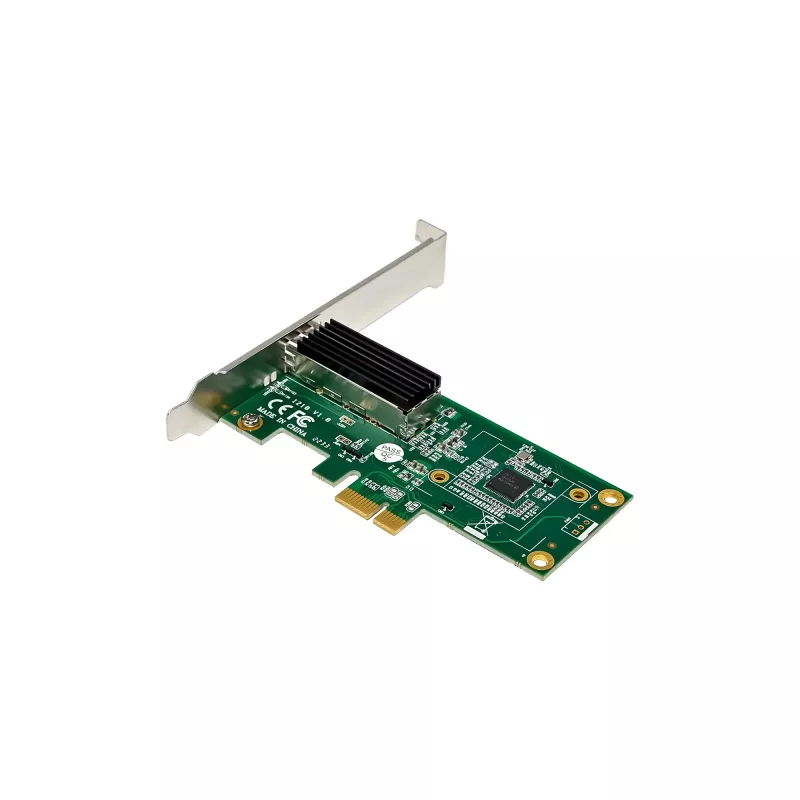

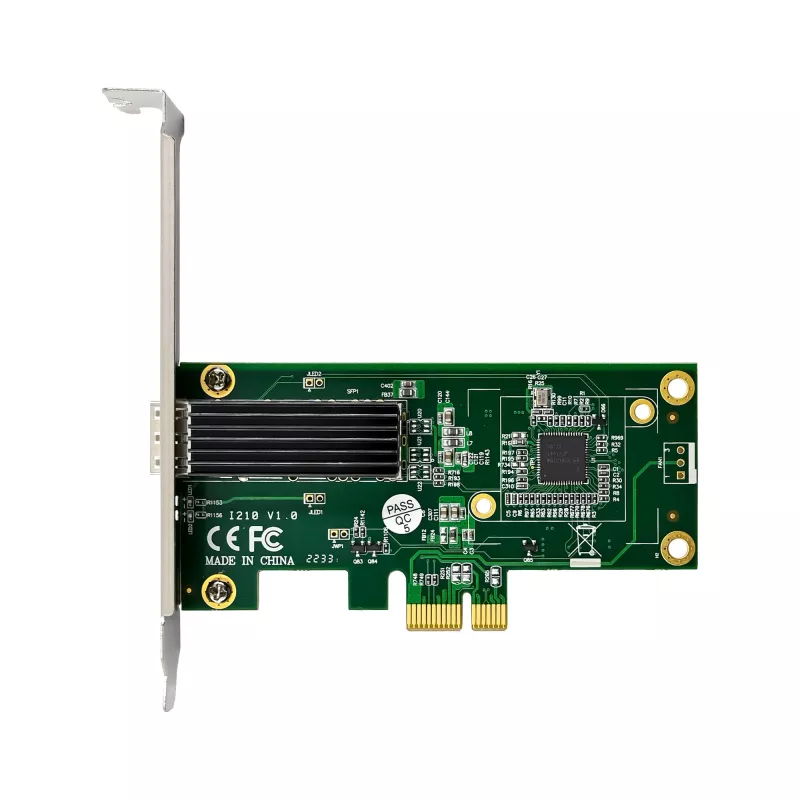

InLine scheda di rete Gigabit, 1x SFP, PCIe x1, incl. staffa low profile

Intel I210 chipset for professional requirements:Offers reliable performance and comprehensive compatibility with modern network protocols.
Flexible fiber optic connection via SFP module:Individually adaptable to different network infrastructures - from multi-mode to single-mode.
Full support for VLANs and IPv6:Ideal for virtualized environments and structured enterprise networks.

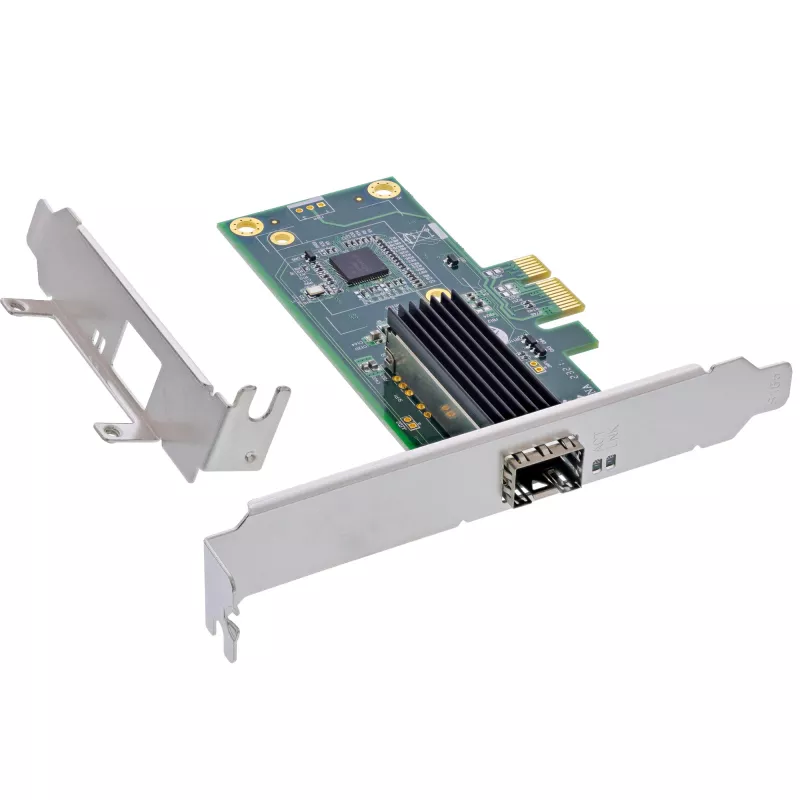

Includes low-profile slot bracket:Suitable for compact housings, e.g. mini PCs or industrial PCs.
Broad system compatibility:Supports Windows (from Vista), Windows Server (from 2008) and Linux (kernel from 2.6.x).

The InLine® Gigabit network card with SFP port and PCIe x1 connection is a powerful solution for professional network environments. Equipped with the proven Intel I210 chipset, it offers reliable data transmission at up to 1 Gb/s - ideal for structured networks with fiber optic connections.
The SFP port allows the card to be flexibly adapted to various fiber optic standards, such as 1000Base-SX (multimode), 1000Base-LX (singlemode) or 1000Base-BX (WDM). The supplied low-profile slot bracket also enables use in compact housings, for example in mini PCs or industrial PCs.
With support for IEEE 802.3x flow control, jumbo frames up to 9 KB, VLAN tagging (IEEE 802.1Q) as well as RSS and checksum swapping, the card is ideal for demanding corporate applications, virtualization environments or industrial installations. IPv4 and IPv6 compatibility round off the professional profile.
Whether in the server room, in the system house or for industrial applications - the InLine® Gigabit network card offers a cost-effective, powerful and flexible network solution for IT professionals.

Interface:PCI Express x1 (Revision 2.1)
Data rate:up to 1000 Mb/s
Supported standards:IEEE 802.3x, IEEE 802.1Q
Operating systems:Microsoft Windows Vista or newer, Server 2008 or newer, Linux Kernel 2.6.x or newer
Jumbo Frames:up to 9 KB
Low profile slot bracket:included in the scope of delivery
Operating temperature: 0° C – 55° C
Storage temperature: -40° C – 70° C
Humidity: 10% - 90% non-condensing

InLine Gigabit network card, 1x SFP, PCIe x1, incl. low profile slot bracket. Host interface: PCIe, Output interface: SFP, Host interface gender: Male. Cooling type: Passive, Country of origin: China. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Linux operating systems supported: Kernel 2.6, Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4,..., Server operating systems supported: Windows Server 2008, Windows Server 2012, Windows Server 2013, Windows Server 2016, Windows Server.... Width: 120 mm, Depth: 1.28 mm, Height: 115 mm. Package width: 140 mm, Package depth: 150 mm, Package height: 30 mm

How to use

Install the card into an available PCIe x1 slot (or a compatible PCIe slot) on the host system. Insert a suitable SFP module into the SFP port and connect the fibre-optic cable according to the module type. Install any required drivers for your operating system (Windows or Linux) and verify link status through the OS network settings or management tools. Ensure the card is secured with the low-profile bracket and the system is powered off during installation.

Recommendations

Use SFP modules and fibre cables that match your network standards (single-mode or multi-mode) and verify driver availability for your specific OS version to ensure stable Gigabit connectivity.
