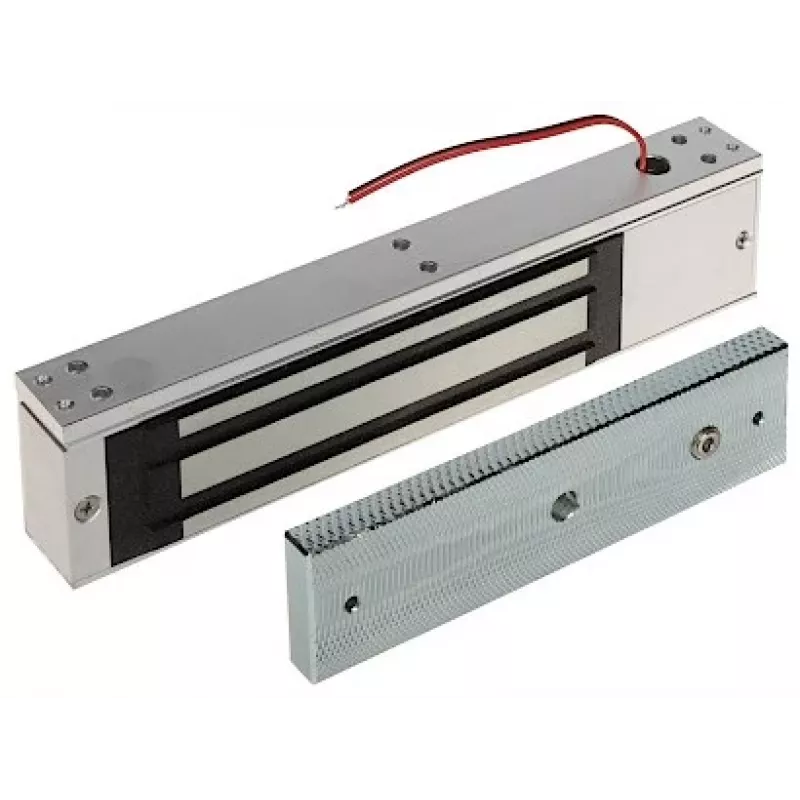

INNE ZE-320 serratura elettromagnetica, forza di tenuta 300 kg, 12/24V DC, fail-safe, montaggio a vista

The INNE ZE-320 stands apart from ordinary electromagnetic locks by combining a robust 300 kg holding force with selectable 12V or 24V DC operation, making it adaptable to a wide range of access control systems. Its fail-safe design ensures the door unlocks automatically when power is removed, providing a safe exit route in emergencies. Built with an anodized aluminum alloy housing and a zinc-plated steel armature plate, this lock is engineered for durability and reliable performance on wooden, glass, metal, and fireproof doors.

Highlights

• Strong 300 kg (600 lbs) holding force for secure door locking
• Selectable 12V DC or 24V DC operating voltage for flexible installation
• Fail-safe operation: unlocks when power is cut, enhancing safety
• Surface mount design for easy installation on single doors
• Built-in MOV surge protection safeguards against voltage spikes
• LED indicator shows lock status at a glance
• Durable anodized aluminum housing with zinc-plated steel armature
• Wide operating temperature range from -10°C to +55°C

In daily use

Installed on a door frame, the ZE-320 remains locked while powered, keeping the door securely closed. When an access control system grants entry, it cuts power to the lock, releasing the door instantly. The LED indicator provides clear visual confirmation of lock status, while the built-in MOV protection guards against electrical surges, ensuring long-term reliability. Its surface mount design simplifies installation, and the lock works with a variety of door materials, making it a versatile choice for offices, commercial buildings, and secure areas.

Full specifications

• Holding force: 300 kg (600 lbs)
• Operating voltage: 12V DC / 24V DC (selectable)
• Current consumption: 500 mA at 12V DC, 250 mA at 24V DC
• Operating mode: Fail-safe (power to lock)
• Mounting type: Surface mount
• Door type: Single door
• LED indicator: Yes (lock status)
• Housing material: Anodized aluminum alloy
• Armature plate material: Zinc-plated steel
• Operating temperature: -10°C to +55°C
• Operating humidity: 0-95% non-condensing
• Built-in MOV: Yes (surge protection)
• Application: Access control systems
• Suitable for: Wooden, glass, metal, fireproof doors

Final note

The INNE ZE-320 electromagnetic lock offers a dependable and secure solution for access control, combining strong holding power, flexible voltage options, and robust construction for long-lasting performance.
