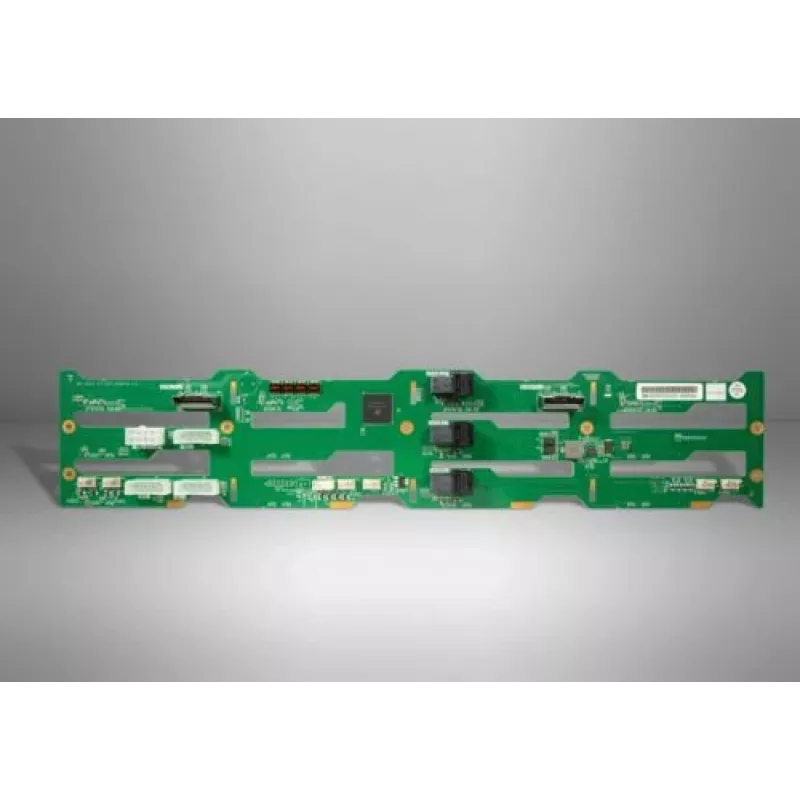

Inter-Tech IPC Backplane BP-4724-NVMe backplane hot-swap 12-bay 2,5" SAS/SATA/NVMe

Drive backplane module engineered for high-density storage servers, supporting up to 12 hot-swappable 2.5-inch drives across SAS, SATA, and NVMe interfaces. This passive backplane delivers simultaneous connectivity for mixed drive environments, making it a versatile backbone for demanding data centers and enterprise chassis.

Advantages

The BP-4724-NVMe offers a unified solution for modern storage needs. With three SFF-8643 host connectors handling both SAS/SATA and NVMe signals, it simplifies cabling while maintaining full bandwidth: up to 12 Gbps for SAS, 6 Gbps for SATA, and 32 Gbps per NVMe drive via PCIe 3.0 x4. Dual SATA power connectors ensure stable power delivery to all bays, and per-drive LED indicators provide clear status at a glance. Hot-swap support minimizes downtime during drive replacement, and the passive design reduces points of failure compared to active backplanes.

Suitable for

• Inter-Tech 4U-4724, 4U-4724L, and 4U-4724S server chassis
• High-density storage servers requiring mixed SAS/SATA/NVMe configurations
• Enterprise environments needing reliable hot-swap drive access
• IT professionals building custom storage solutions with compatible chassis

Key specifications

• Drive bays: 12 x 2.5-inch
• Supported interfaces: SATA, SAS, NVMe (U.2)
• Host connectors: 3 x SFF-8643 (Mini SAS HD)
• Power connectors: 2 x 15-pin SATA power
• Max data transfer rates: SAS 12 Gbps, SATA 6 Gbps, NVMe 32 Gbps
• Hot-swap support: Yes
• LED indicators: Power and activity per drive
• Material: PCB with metal connectors

Recommendations

For optimal performance, pair this backplane with a compatible SAS/SATA/NVMe host controller and ensure adequate airflow in your chassis to maintain drive temperatures. Verify chassis compatibility before installation.
