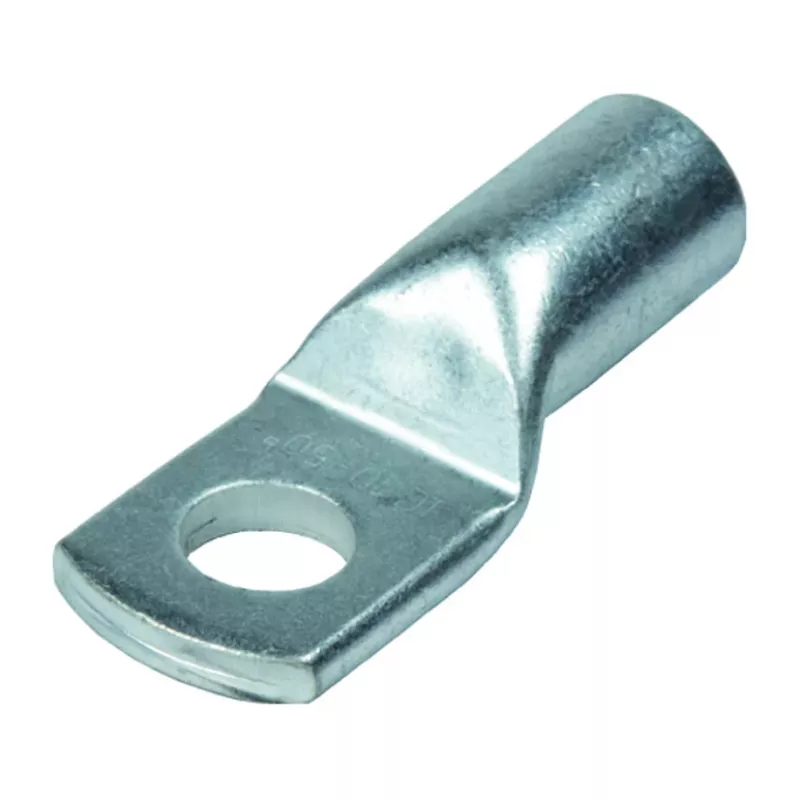

Intercable ICR9512 capocorda a tubo 95 mm² M12 stagnato serie R

In electrical installation, switchgear manufacturing, and industrial maintenance, secure and lasting cable terminations are critical to system safety and performance. The Intercable ICR9512 tubular cable lug offers a dependable solution for terminating 95 mm² copper stranded conductors with a 12 mm bolt hole, suitable for high-current applications where vibration and thermal cycling are a concern.

Key specifications

• Product type: Tubular cable lug (uninsulated)
• Cable cross-section: 95 mm²
• Bolt hole diameter: 12 mm (M12)
• Material: Electrolytic copper with tin-plated surface finish
• Connection method: Crimp connection
• Conductor compatibility: Copper stranded conductors
• Entry type: Funnel entry for easy conductor insertion
• Inspection hole: Yes, allows visual verification of proper conductor insertion
• Standard compliance: DIN 46235
• Series: R-Series
• Manufacturer part number (MPN): ICR9512
• EAN: 8014212193742

Why choose it

The ICR9512 is crafted from high-purity electrolytic copper and finished with a tin plating that provides excellent corrosion resistance and maintains a low contact resistance. The funnel entry simplifies conductor insertion, reducing installation time and the risk of stray wire strands. The inspection hole allows for quick visual checks, ensuring every crimp is fully seated and reliable. As part of the Intercable R-Series, this lug delivers consistent dimensions and dependable performance, conforming to DIN 46235 for tubular cable lugs.

Ideal use cases

• Crimping terminations for power distribution boards and switchgear
• Grounding and bonding connections in industrial plants
• Connection of heavy-duty cables in machinery and motors
• Maintenance and repair of electrical systems in commercial buildings

Good to know

For best results, use a crimping tool and die specifically sized for 95 mm² copper lugs. Strip the conductor to the recommended length, insert fully, and crimp securely. The tin-plated finish is compatible with copper conductors and standard crimping dies. This product is uninsulated; use appropriate heat-shrink tubing or insulation where required. Always follow local electrical codes and manufacturer guidelines.
