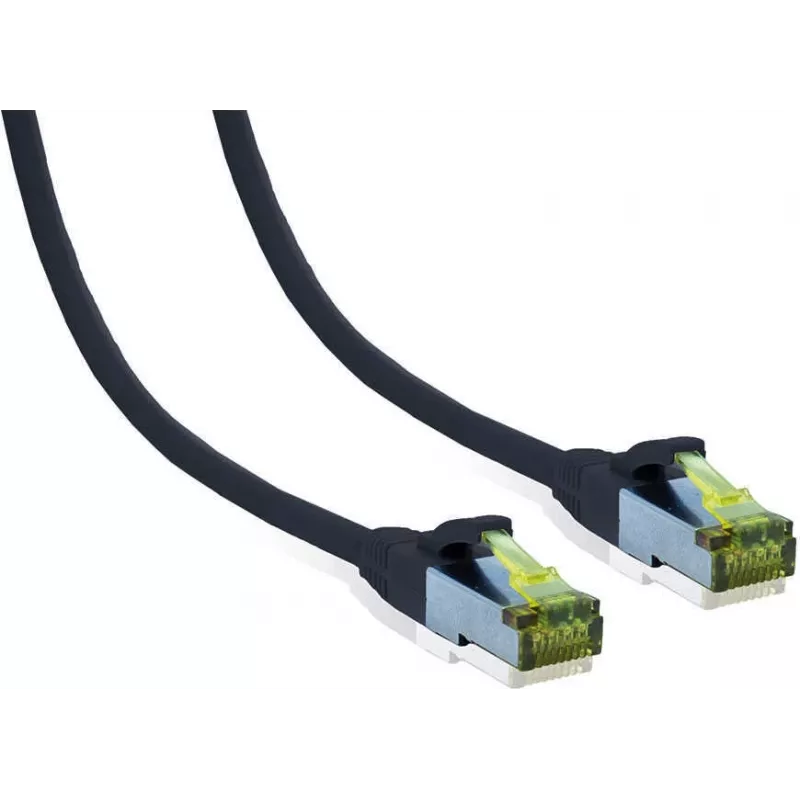

IT-BUDGET Cavo patch Premium Cat.6A con cavo grezzo Cat.7 - 600 MHz - LSZH - PoE+ - 10 Gbit - nero - 15 m

The IT-BUDGET Premium Patch Cable is a high-performance Ethernet cable designed for demanding network environments. It combines Cat.6A performance with Cat.7 raw cable construction, ensuring reliable 10 Gigabit data transmission over 15 meters. The cable features 100% copper conductors, S/FTP shielding, and a halogen-free LSZH jacket, making it ideal for data centers, offices, and home networks where safety and performance are paramount.

Advantages

This patch cable offers superior signal integrity and reduced crosstalk thanks to its S/FTP shielding (pairs in metal foil plus overall braid). The 100% copper stranded conductors provide flexibility and durability, while the LSZH jacket ensures low smoke and zero halogen emissions in case of fire, enhancing safety in enclosed spaces. With PoE+ support, it can power devices such as IP cameras and wireless access points directly through the cable.

Suitable for

• Data centers requiring high-speed, reliable connections
• Enterprise networks with 10GBase-T infrastructure
• Home networks for future-proofing against bandwidth demands
• Power over Ethernet applications (PoE+)
• Environments where fire safety is critical (LSZH)

Key specifications

• Cable Type: Ethernet Patch Cable
• Category: Cat.6A (Class EA) with Cat.7 raw cable
• Data Transfer Rate: 10 Gigabit Ethernet (10GBase-T)
• Bandwidth: 600 MHz
• Conductor Material: 100% Copper (Vollkupfer)
• Conductor Construction: Stranded
• Conductor Gauge: 26 AWG
• Shielding: S/FTP (PiMF)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• PoE Support: PoE+ (IEEE 802.3at)
• Connector Type: RJ45 with gold-plated contacts
• Length: 15 meters
• Colour: Black
• Wiring Standard: TIA/EIA 568B
• Flammability Rating: IEC 60332-1
• Operating Temperature: -20°C to 60°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, use this cable with Cat.6A or higher compatible network equipment. Ensure proper cable management to avoid kinking or sharp bends. This cable is not suitable for outdoor installation.
