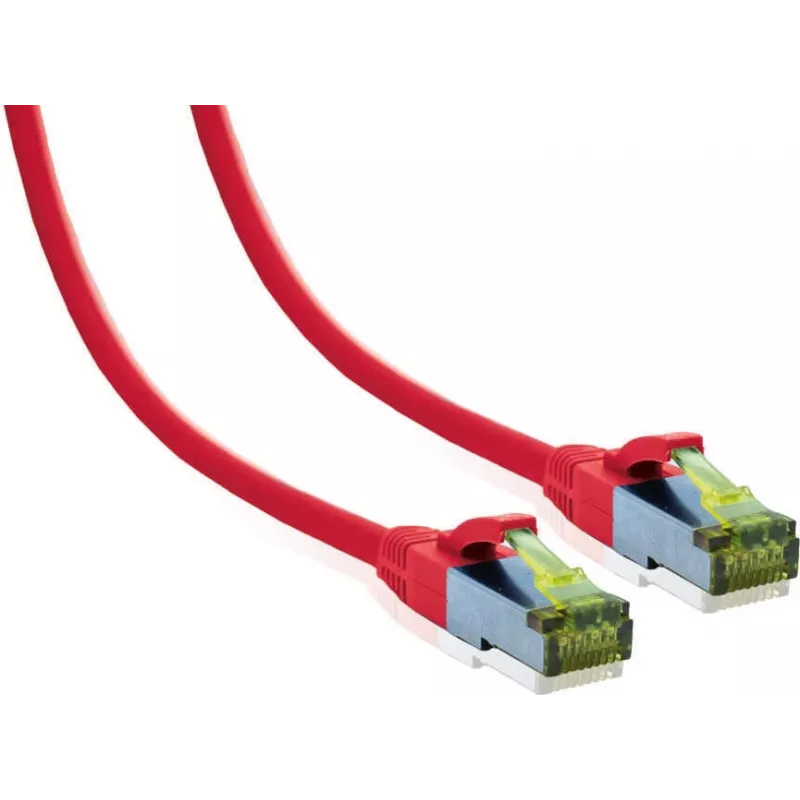

IT-BUDGET Cavo patch Premium Cat.6A con cavo grezzo Cat.7 - 600 MHz - senza alogeni - PoE+ - 10Gbit - rosso - 15 m

The IT-BUDGET Premium Patch Cable is a high-performance Ethernet cable designed for demanding network environments. It combines Cat.6A assembly with Cat.7 raw cable technology, offering exceptional bandwidth and reliability. With 100% copper conductors and S/FTP shielding, this cable ensures minimal interference and maximum data integrity.

Advantages

This patch cable delivers superior performance with 600 MHz bandwidth and support for 10 Gigabit Ethernet (10GBase-T). It is PoE+ compatible, making it ideal for powering devices such as IP cameras and wireless access points. The halogen-free LSZH jacket enhances safety in enclosed spaces, reducing toxic smoke emissions in case of fire.

Suitable for

• Data centers and server rooms
• Enterprise networks requiring high-speed data transfer
• PoE+ applications (IEEE 802.3at)
• Installations where fire safety is critical (halogen-free)

Key specifications

• Cable Type: Ethernet Patch Cable
• Cable Category (Assembled): Cat.6A
• Raw Cable Category: Cat.7
• Data Transfer Rate: 10 Gigabit Ethernet (10GBase-T)
• Bandwidth: 600 MHz
• Shielding: S/FTP (PiMF - Pairs in Metal Foil, Overall Braided Shield)
• Conductor Material: 100% Copper (Vollkupfer)
• Conductor Type: Stranded
• PoE Support: PoE+ (Power over Ethernet Plus, IEEE 802.3at)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Length: 15 meters
• Color: Red
• Connector Type (Ends): RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated contacts
• Wiring Standard: TIA/EIA-568B
• Compatibility: Backward compatible with Cat.6, Cat.5e, Cat.5
• Features: Snagless boot, Strain relief
• Application: LAN, Network, Data Center, Server, Switch, Router, Modem

Recommendations

For optimal performance, use this cable with 10GBASE-T compatible network equipment. Ensure proper cable management to avoid bending beyond the recommended radius.
