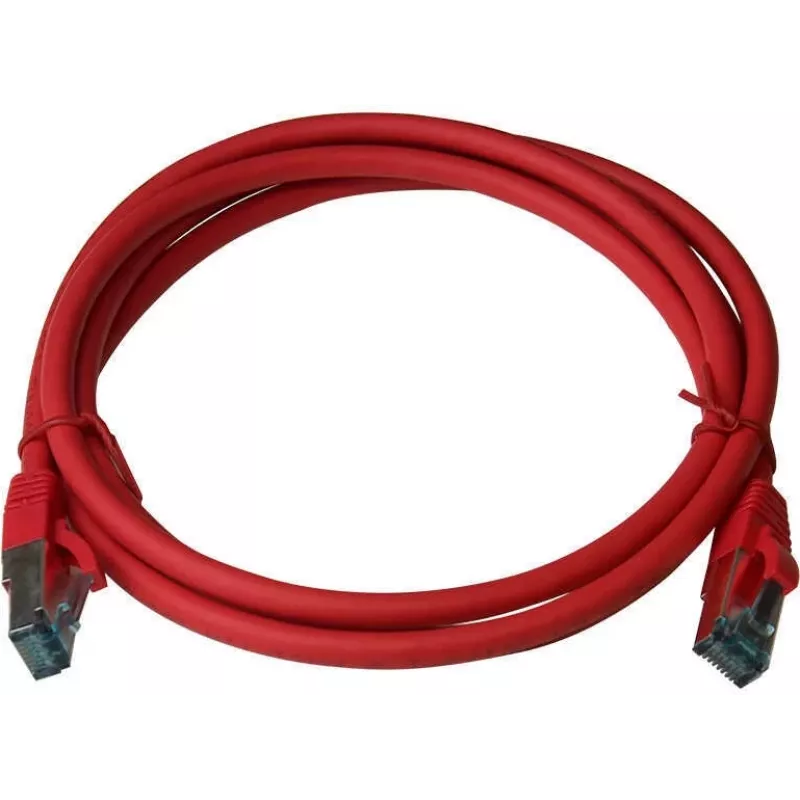

IT-BUDGET Cavo patch Premium Full Copper Cat.6A 500 MHz LSZH PoE+ AWG 26/7 rosso 25 m

The IT-BUDGET Premium Patch Cable is a high-performance Cat.6A shielded patch cord designed for demanding network environments. With full copper conductors and S/FTP shielding, it ensures reliable data transmission up to 10 Gbps over 25 meters. The LSZH jacket makes it safe for use in public and residential areas, while the snagless boot protects the RJ45 connectors during installation.

Advantages

Full copper conductors guarantee optimal signal integrity and PoE+ compatibility. The 500 MHz bandwidth supports high-speed applications, and the halogen-free jacket reduces toxic smoke in case of fire.

Suitable for

• Data centers and server rooms
• Enterprise network infrastructure
• PoE+ devices such as IP cameras and access points
• 10GBASE-T Ethernet networks

Key specifications

• Cable Type: Patch Cable
• Cable Standard: Cat.6A (Category 6A)
• Bandwidth: 500 MHz
• Data Transfer Rate: Up to 10 Gbps
• Conductor Material: Full Copper
• Conductor Gauge: AWG 26/7
• Conductor Type: Stranded
• Shielding: S/FTP (PiMF)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• PoE Support: PoE+ (IEEE 802.3at)
• Cable Length: 25 m
• Colour: Red
• Connector Type: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated
• Boot Type: Snagless
• Wiring Standard: TIA/EIA 568B
• Flame Retardancy: IEC 60332-1
• Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Recommendations

For optimal performance, use with Cat.6A compatible switches and network cards. Ensure proper cable management to avoid kinking or sharp bends.
