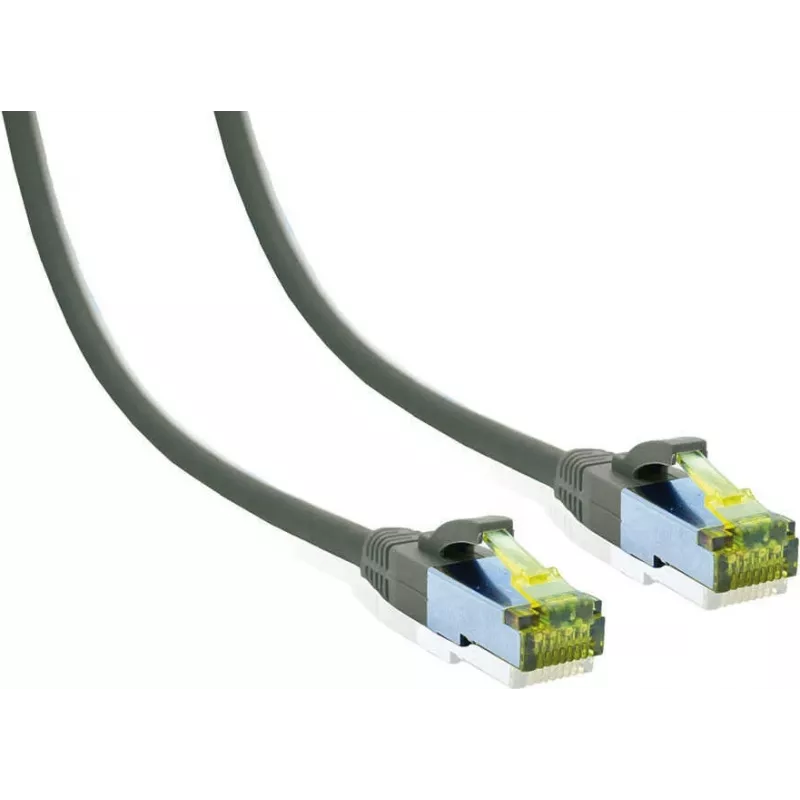

IT-BUDGET Cavo patch Premium Full Copper - Cat.6A con cavo grezzo Cat.7 - 600 MHz - halogen-free - PoE+ - 10 Gigabit - grigio - 30 m

The IT-BUDGET Premium Patch Cable is a high-performance network cable designed for demanding data center and enterprise environments. It combines Cat.6A performance with a Cat.7 raw cable construction, delivering exceptional bandwidth and reliability. With full copper conductors, S/FTP shielding, and LSZH jacket, this cable ensures optimal signal integrity, safety, and durability.

Advantages

Full copper conductors guarantee maximum conductivity and signal quality, while the S/FTP shielding (pairs in metal foil plus overall braid) provides excellent protection against electromagnetic interference. The LSZH jacket makes it safe for use in enclosed spaces, emitting low smoke and no halogen in case of fire. PoE+ support allows power and data transmission over a single cable, simplifying installations.

Suitable for

• Data centers and server rooms
• Enterprise network infrastructure
• High-speed LAN connections
• 10 Gigabit Ethernet networks
• Power over Ethernet applications (PoE+)

Key specifications

• Cable Type: Patch Cable
• Standard: Cat.6A (Class EA) with Cat.7 raw cable
• Data Transfer Rate: 10 Gigabit Ethernet (10GBase-T)
• Bandwidth: 600 MHz
• Conductor Material: Full Copper (Cu)
• Shielding: S/FTP (PiMF)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• PoE Support: PoE+ (IEEE 802.3at)
• Length: 30 m
• Colour: Grey
• Connector: RJ45 Male to RJ45 Male with gold-plated contacts
• Conductor Gauge: AWG 26/7 (stranded)
• Outer Diameter: approx. 6.2 mm
• Operating Temperature: -20°C to 60°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, use this cable with Cat.6A or higher compatible network equipment. Ensure proper cable management to maintain bend radius and avoid signal degradation. Ideal for structured cabling systems requiring high reliability and future-proofing.
