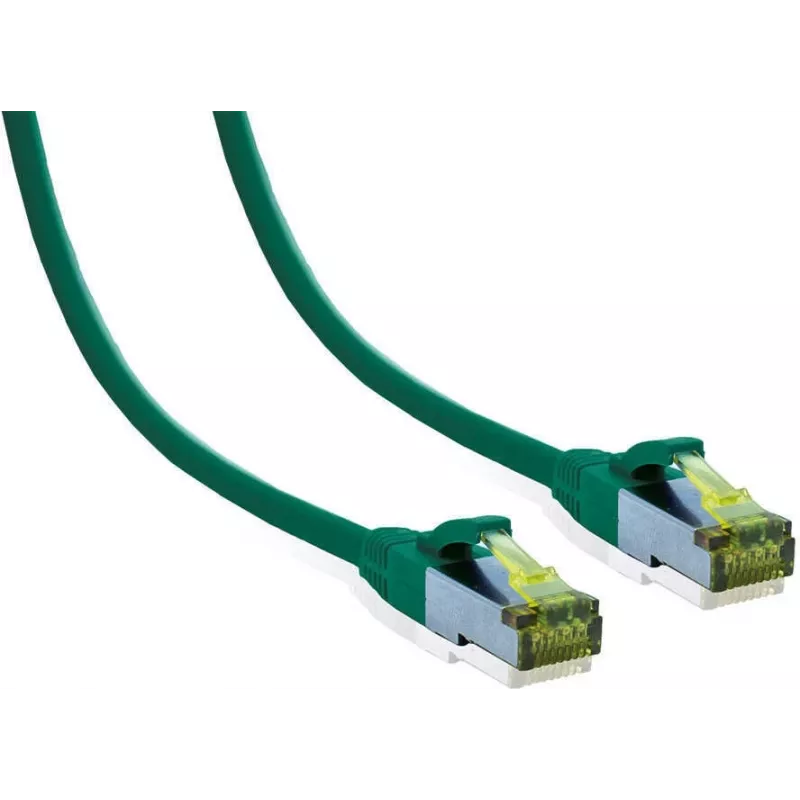

IT-BUDGET Cavo patch Premium Full Copper - Cat.6A con cavo grezzo Cat.7 - 600 MHz - senza alogeni - PoE+ - 10GBit - verde - 1,5 m

The IT-BUDGET Full Copper Premium Patch Cable is a high-performance networking solution designed for demanding environments. Combining Cat.6A performance with a Cat.7 raw cable construction, it delivers exceptional bandwidth and reliability for 10 Gigabit Ethernet networks. The cable features full copper conductors, S/FTP shielding, and a halogen-free LSZH jacket, making it ideal for data centers, offices, and home networks where safety and performance are paramount.

Advantages

This patch cable offers superior signal integrity and reduced crosstalk thanks to its S/FTP shielding (PiMF with overall braid). The full copper conductors ensure optimal conductivity and durability, while the LSZH jacket minimizes toxic smoke in case of fire, complying with strict safety standards. With PoE+ support, it can power devices like IP cameras and access points directly through the cable, simplifying installation.

Suitable for

• 10 Gigabit Ethernet (10GBase-T) networks
• Data centers and server rooms
• Office and home high-speed connections
• PoE+ devices (IEEE 802.3at)
• Applications requiring halogen-free materials

Key specifications

• Category: Cat.6A (Class EA) with Cat.7 raw cable
• Bandwidth: 600 MHz
• Data transfer rate: 10 Gbps
• Conductor: Full copper, AWG 26/7 stranded
• Shielding: S/FTP (PiMF + braid)
• Jacket: LSZH (Low Smoke Zero Halogen)
• Connectors: RJ45 male to RJ45 male with gold-plated contacts (50µ)
• Length: 1.5 m
• Colour: Green
• Wiring standard: TIA/EIA 568B
• Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Recommendations

For optimal performance in high-speed networks, pair this cable with compatible Cat.6A or Cat.7 components. Ensure proper cable management to maintain signal integrity. Ideal for structured cabling systems requiring future-proof bandwidth.
