IT-BUDGET patch panel 10" - schermato - Cat.6A - 500MHz - 12 porte RJ45 - compatibile PoE+ - 1U - grigio (90ITB10PP6AG)

Handle 500 MHz bandwidth with this shielded Cat.6A patch panel, built for 10-inch racks and PoE+ deployments. Its 12 gold-plated RJ45 ports deliver reliable, high-frequency performance in a compact 1U form factor.

Overview

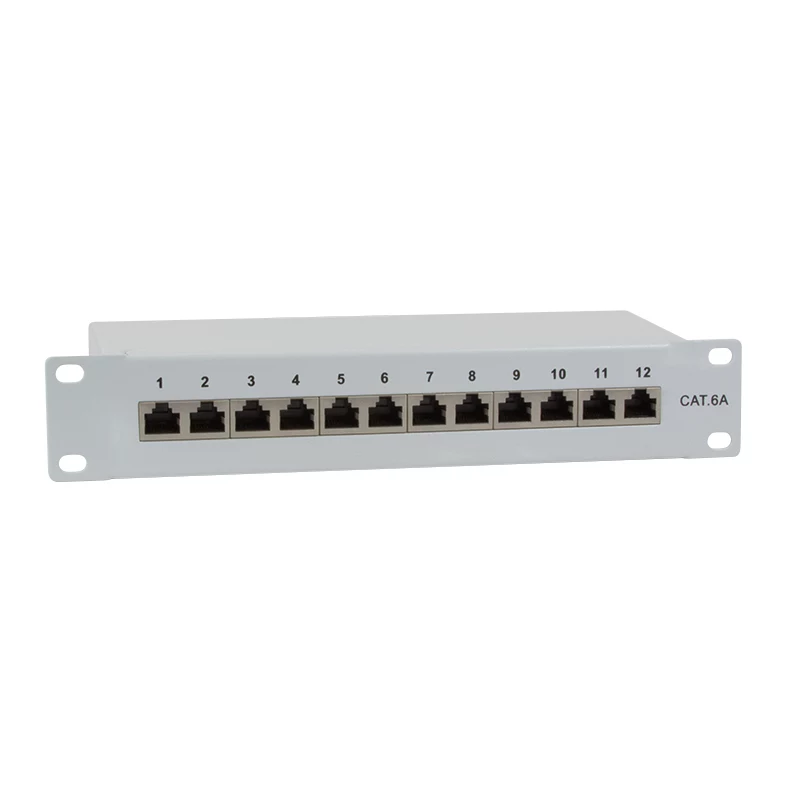

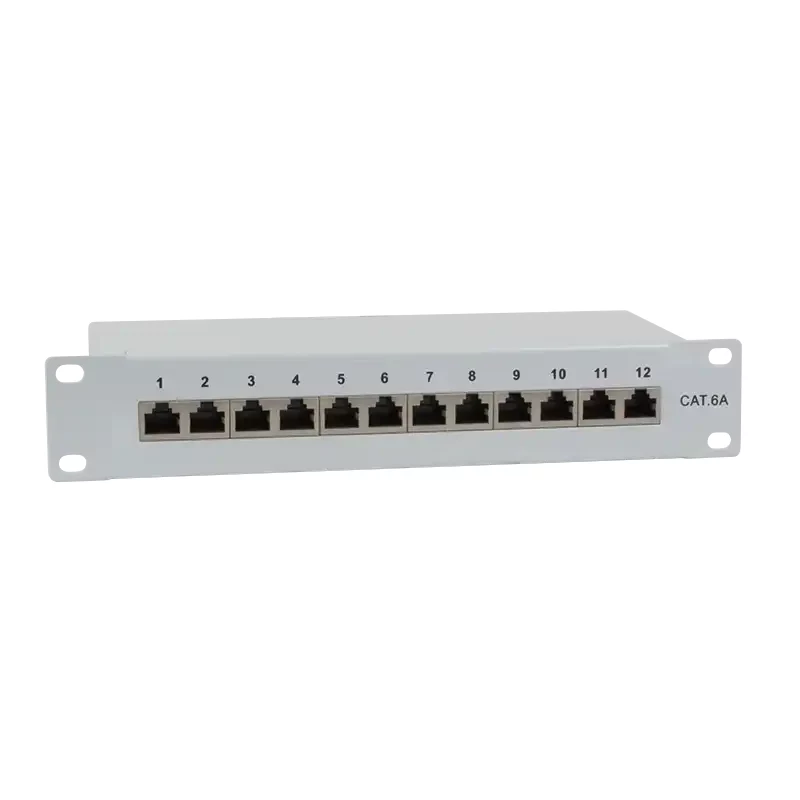

The IT-BUDGET 10" patch panel provides a shielded, Cat.6A compliant termination point for up to 12 network connections. With a frequency rating of 500 MHz, it supports demanding applications such as 10GBASE-T Ethernet. The panel is PoE+ capable, allowing it to pass power to connected devices like IP cameras and wireless access points. Its 1U height and 10-inch width make it ideal for smaller rack installations.

What stands out

• Shielded Cat.6A design with 500 MHz bandwidth
• 12 RJ45 ports with gold-plated contacts
• PoE+ (IEEE 802.3at) support for powered devices
• Compact 1U height for 10-inch racks
• Integrated grounding point for reliable shielding
• LSA/IDC termination compatible with Krone tools

Technical details

• Network Category: Cat.6A
• Shielding Type: Shielded (FTP/STP compatible)
• Frequency Bandwidth: 500 MHz
• Number of Ports: 12
• Connector Type: RJ45
• Rack Height: 1U
• PoE Support: PoE+ (IEEE 802.3at)
• Colour: Grey
• Mounting: 19-inch Rack Mountable (with 10-inch width)
• Termination Type: LSA / IDC (Krone compatible)
• Wiring Standard: TIA/EIA 568 A/B
• Housing Material: Steel
• Contact Material: Gold-plated contacts
• Operating Temperature: -10°C to 60°C
• Operating Humidity: 10% to 90% RH (non-condensing)

Our verdict

A dependable shielded patch panel for high-density 10-inch rack setups, delivering Cat.6A performance and PoE+ readiness without compromise.
