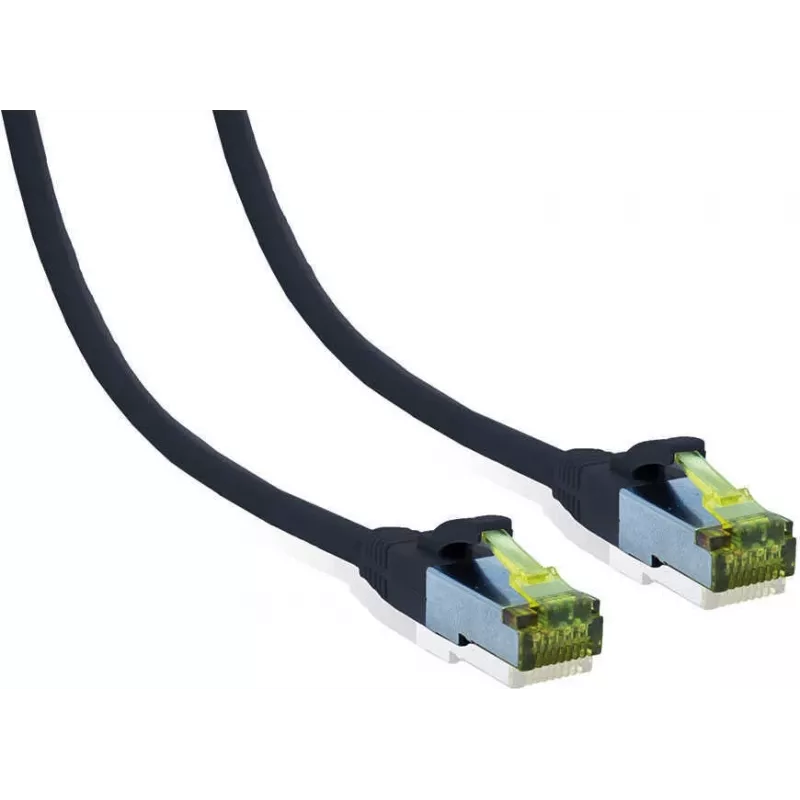

IT-BUDGET Patchcable Premium Cat.6A con cavo grezzo Cat.7 - 600 MHz - Halogen Free - PoE+ - 10G - Nero - 25 m

The IT-BUDGET Premium Patch Cable is a high-performance network cable designed for demanding professional environments. It combines Cat.6A performance with a Cat.7 raw cable construction, delivering exceptional bandwidth and reliability. With 100% copper conductors, S/FTP shielding, and LSZH jacket, this cable ensures optimal signal integrity, safety, and durability.

Advantages

This patch cable offers superior data transmission rates of up to 10 Gbps over 25 meters, making it ideal for high-speed networks. The full copper construction guarantees excellent conductivity and signal quality, while the S/FTP shielding minimizes electromagnetic interference. The halogen-free jacket ensures safety in case of fire, and PoE+ support allows power delivery to devices such as IP cameras and access points.

Suitable for

• Data centers and server rooms requiring high-speed, reliable connections
• Enterprise networks with 10 Gigabit Ethernet infrastructure
• Power over Ethernet applications (PoE and PoE+)
• Installations where fire safety and low smoke emission are critical

Key specifications

• Cable Type: Patch Cable
• Cable Category: Cat.6A (Augmented Category 6)
• Raw Cable Standard: Cat.7
• Bandwidth: 600 MHz
• Data Transfer Rate: 10 Gigabit Ethernet (10GBase-T)
• Conductor Material: 100% Copper (Vollkupfer)
• Conductor Construction: Stranded
• Conductor Gauge: AWG26/7
• Shielding: S/FTP (PiMF - Pairs in Metal Foil, overall braid shield)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• PoE Support: PoE, PoE+ (IEEE 802.3af/at)
• Connector Type: RJ45 (8P8C)
• Connector Plating: Gold-plated contacts
• Wiring Standard: TIA/EIA 568B
• Cable Length: 25 m
• Color: Black
• Standards Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-B.2-10
• Flame Retardancy: IEC 60332-1

Recommendations

For optimal performance, ensure that all network components (switches, routers, NICs) support Cat.6A or higher standards. This cable is backward compatible with Cat.5e and Cat.6 networks but will operate at the highest common speed.
