IT-BUDGET tester di rete per connessioni di rete e ISDN Cat. 5e, Cat.6, Cat.6a, Cat.6A, Cat.7, Cat.7A, Cat.8 (90ITBUNT)

This IT-BUDGET network tester stands out by covering a wide range of cable categories from Cat. 5e to Cat. 8, plus ISDN connections, in a single handheld device. It verifies wiring integrity with clear LED indicators, making it practical for installers and technicians who need quick, reliable checks without complex setup.

Highlights

• Tests Ethernet (RJ45) and ISDN/telephone (RJ11/RJ12) connections
• Supports Cat. 5e, Cat.6, Cat.6a, Cat.6A, Cat.7, Cat.7A, and Cat.8 cables
• Detects open circuits, short circuits, crossed pairs, and split pairs
• LED display shows wiremap and status at a glance

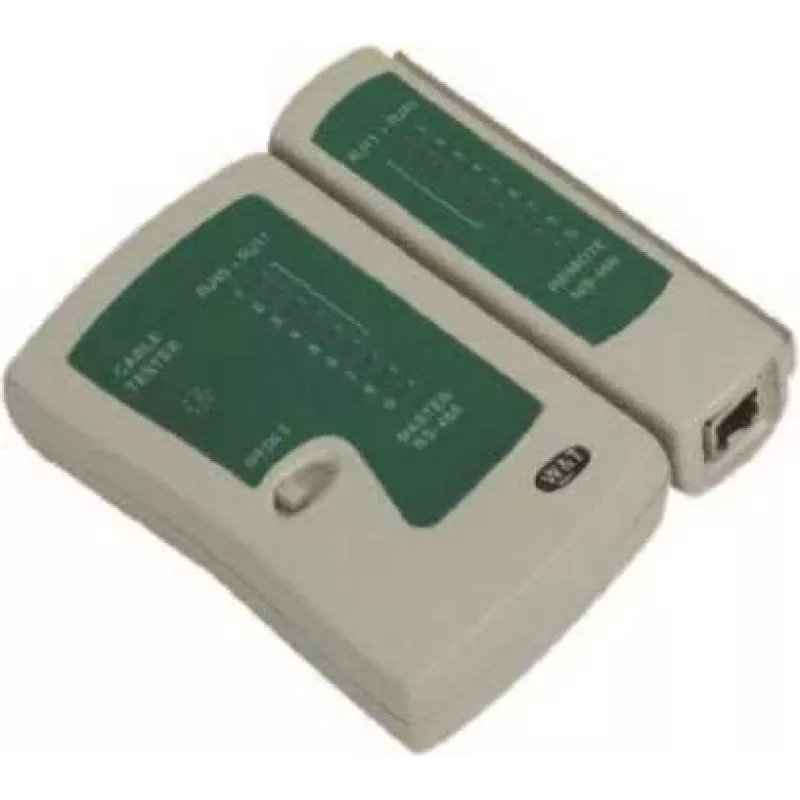

• Includes main tester unit and remote unit for end-to-end testing

In daily use

The tester is powered by a 9V block battery (not included) and features auto power off to conserve energy. It operates from 0°C to 50°C and can be stored from -10°C to 60°C. The durable ABS housing withstands typical field use. Maximum testable cable length is 100 meters, and it can verify shield continuity on shielded cables.

Full specifications

• Supported cable categories: Cat. 5e, Cat.6, Cat.6a, Cat.6A, Cat.7, Cat.7A, Cat.8
• Supported connection types: Ethernet (RJ45), ISDN/Telephone (RJ11/RJ12)
• Test functions: Wiremap, open circuit, short circuit, crossed pairs, split pairs
• Main unit connector ports: 1x RJ45, 1x RJ11/RJ12
• Remote unit connector ports: 1x RJ45, 1x RJ11/RJ12
• Display type: LED indicators for each wire and status
• Power source: 1x 9V block battery (not included)
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Housing material: Durable ABS plastic
• Included components: Main tester unit, remote unit
• Max. testable cable length: Up to 100 meters
• Low battery indication: Yes
• Auto power off: Yes
• Shielded cable test: Yes (for continuity of shield)

Final note

A straightforward, no-frills tester that covers the essential cable verification tasks for both network and ISDN installations.
