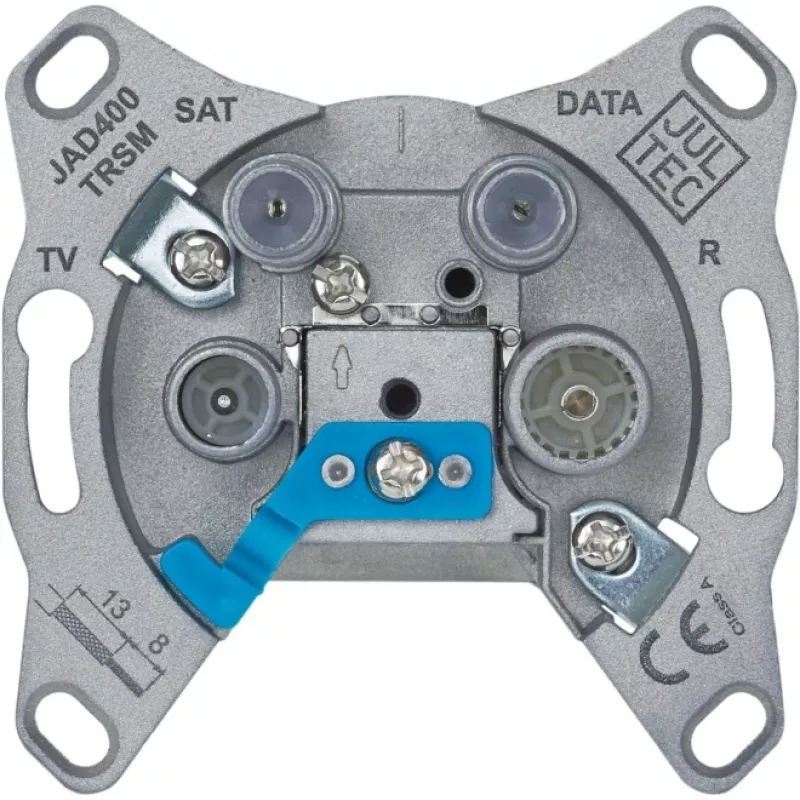

JULTEC JAD400TRSM presa a muro multimediale 4 porte TV/RADIO/SAT/MODEM 5-2400 MHz

The JULTEC JAD400TRSM is a high-quality 4-port multimedia wall socket designed for distributing TV, radio, satellite (SAT), and modem signals in modern residential and commercial installations. This flush-mount socket supports frequencies from 5 to 2400 MHz, covering all common broadcasting and broadband services. With its robust shielding and low insertion loss, it ensures excellent signal integrity for both analog and digital systems, including Unicable/JESS (EN 50494/EN 50607).

Advantages

This multimedia socket offers a compact, all-in-one solution for connecting multiple devices at a single wall point. The integrated DC pass for SAT allows powering of LNB directly through the socket, simplifying installation. The return path capability for modem ensures compatibility with modern cable internet services. Its high shielding effectiveness (>100 dB) minimizes interference, guaranteeing reliable performance even in demanding environments.

Suitable for

• Residential and commercial buildings requiring TV, radio, satellite, and modem connectivity
• New installations or upgrades of multimedia distribution systems
• Use with Unicable/JESS compatible satellite systems
• Flush-mount installations in standard wall boxes

Key specifications

• Product Type: Multimedia End Socket (Stichdose)
• Number of Ports: 4
• Supported Services: TV, Radio, Satellite (SAT), Modem
• TV/Radio Frequency Range: 5-862 MHz
• SAT Frequency Range: 950-2400 MHz
• Modem Frequency Range (Return Path): 5-65 MHz
• Modem Frequency Range (Forward Path): 108-862 MHz
• TV Connector Type: IEC Male (Coaxial Plug)
• Radio Connector Type: IEC Female (Coaxial Socket)
• SAT Connector Type: F-Connector
• Modem Connector Type: F-Connector
• Insertion Loss (TV/Radio): 1.5 dB (typical)
• Insertion Loss (SAT): 1.5 dB (typical)
• Insertion Loss (Modem): 1.5 dB (typical)
• DC Pass for SAT: Yes (for LNB power)
• Return Path Capability: Yes (for Modem)
• Shielding Effectiveness: >100 dB
• Mounting Type: Flush-mount (Unterputz)
• System Compatibility: Unicable/JESS (EN 50494 / EN 50607)
• Impedance: 75 Ohm

Recommendations

For optimal performance, use high-quality coaxial cables and F-connectors. Ensure proper grounding of the installation. This socket is designed for indoor use only. Professional installation is recommended.
