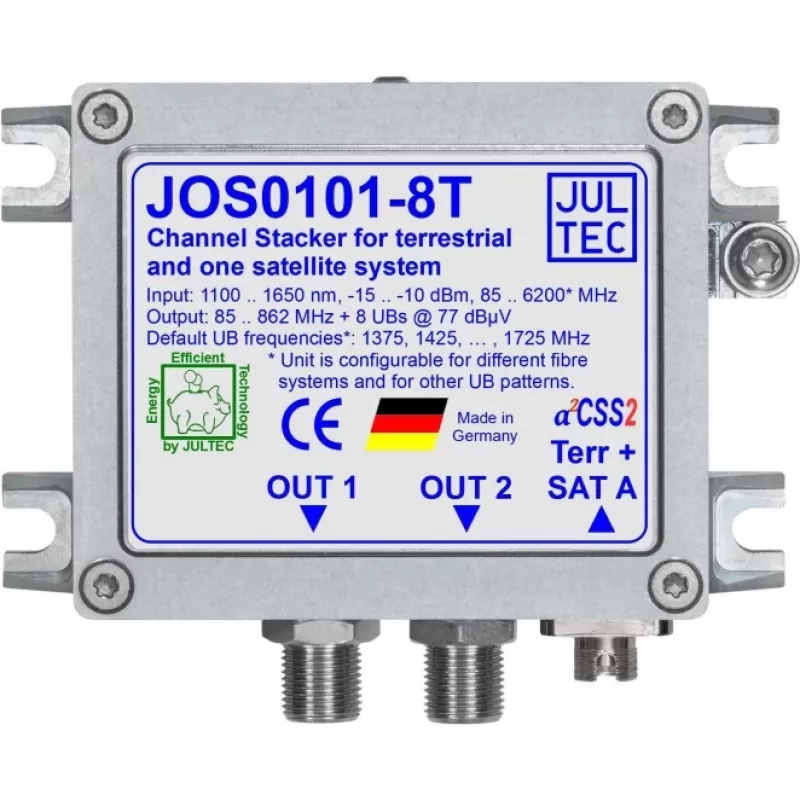

JULTEC JOS0101-8T convertitore Unicable II JESS 1x fibra ottica FC/PC 8x ricevitore

The JULTEC JOS0101-8T is a subscriber-controlled single-cable converter with fiber optic input, designed for modern satellite and terrestrial signal distribution. Part of the JOS series, this device is extremely compact, making it easy to integrate into media distribution cabinets or discreetly place in apartments during retrofitting. It supports both Unicable I (EN50494) and Unicable II / JESS (EN50607) standards, providing up to 8 receiver outputs for satellite and terrestrial signals.

Advantages

Compact metal housing for easy installation; supports both legacy and JESS Unicable standards; fiber optic input for long-distance signal transmission; integrated terrestrial signal support (DVB-T/T2, DAB+, FM); low power consumption (<5 W).

Suitable for

• Single-cable satellite systems with fiber optic infrastructure
• Multi-dwelling units (MDUs) and hotels requiring discreet receiver distribution
• Retrofitting existing satellite installations with Unicable II technology
• Professional media distribution in cabinets or wall-mounted enclosures

Key specifications

• Product Type: Unicable II (JESS) Converter
• Input: Optical Fiber, FC/PC connector
• Number of Satellite Positions: 1
• Terrestrial Signal Support: DVB-T/T2, DAB+, FM
• Number of Unicable Outputs: 8
• Standards: EN50494 (Unicable I) & EN50607 (Unicable II / JESS)
• Control Protocol: DiSEqC 1.x, SCR, JESS
• SAT Frequency Range (Output): 950 - 2150 MHz
• Terrestrial Frequency Range (Output): 47 - 862 MHz
• Optical Wavelength: 1310 nm
• Optical Input Power Range: -10 to +0 dBm
• Power Supply: External 12V DC (via receiver or separate PSU)
• Power Consumption: <5 W
• Housing Material: Metal
• Installation: Indoor, wall-mountable
• Max. Output Level (Unicable): 90 dBµV
• Return Loss: >10 dB
• Operating Temperature: -20 to +50 °C

Recommendations

For optimal performance, use with an optical LNB or a Quattro LNB with an optical converter. Ensure the connected receivers support Unicable II (JESS) or are compatible with SCR/DiSEqC control.
