Jung attuatore KNX, 2 canali, 16 A, 230 V AC, guida DIN, 2 moduli 2302.16REGHM

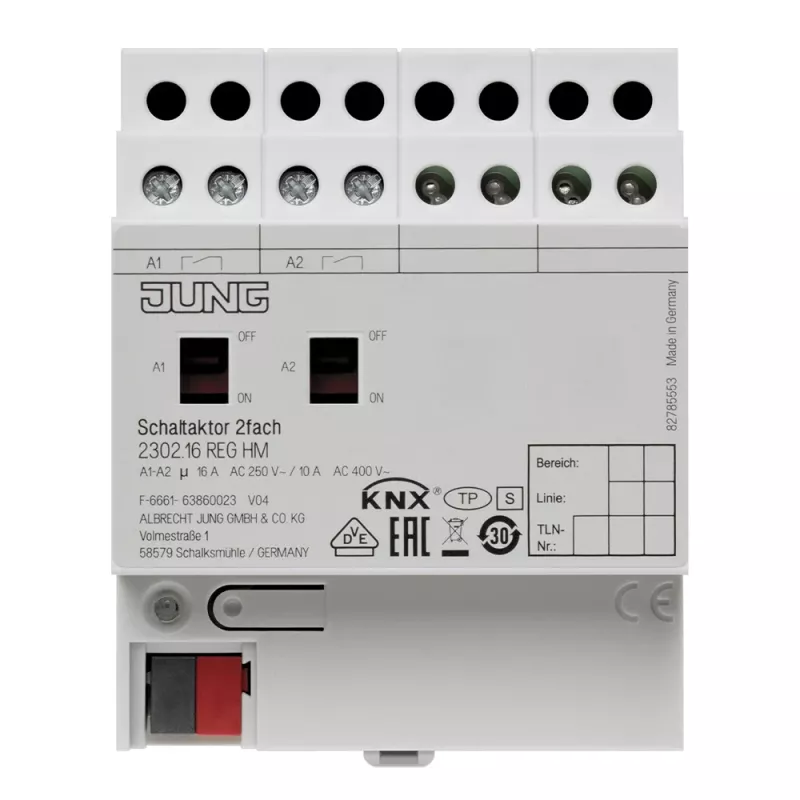

Handle two independent 16 A loads with a single KNX module. The Jung 2302.16REGHM switching actuator delivers two channels, each rated for 16 A at 230 V AC, in a compact 2 TE DIN rail housing. Manual push buttons and LED status indicators give you direct on-site control and clear feedback.

Overview

This KNX actuator is designed for switching resistive, inductive, capacitive, fluorescent, halogen, and LED loads. It supports scene control, time functions, logic functions, and status feedback, making it suitable for lighting and other electrical loads in KNX installations. The device connects to the KNX bus via a dedicated bus terminal and uses screw terminals for load connections.

What stands out

• Two independent channels, each rated 16 A at 230 V AC
• Manual operation via push buttons with LED status indication
• Supports a wide range of load types including LED and fluorescent
• Compact 2 TE DIN rail mounting
• Integrated scene, time, and logic functions

Technical details

• Product type: KNX switching actuator
• Number of channels: 2
• Switching current per channel: 16 A
• Rated voltage: 230 V AC

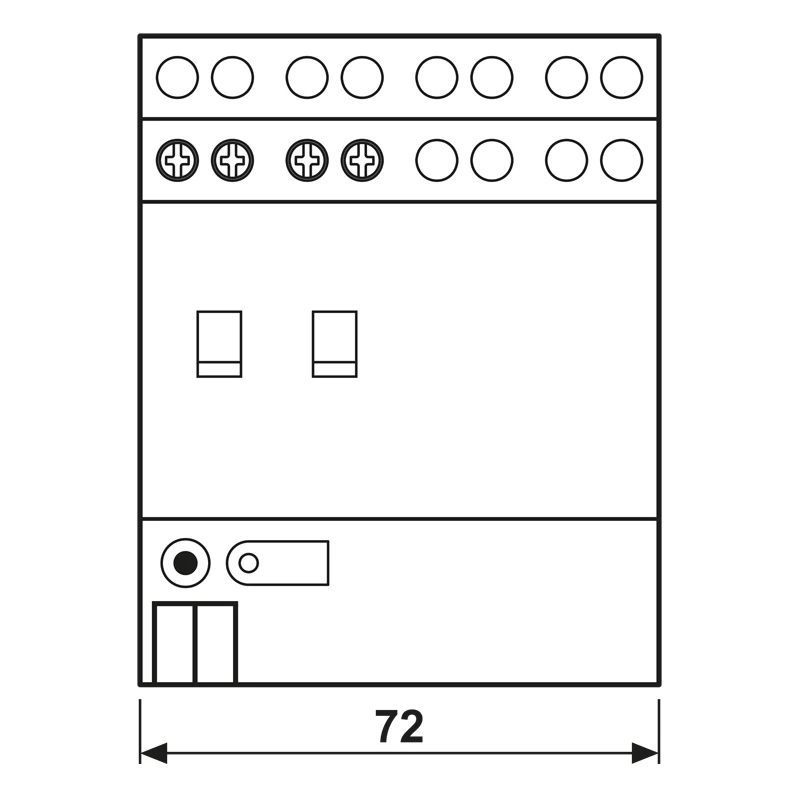

• Mounting: DIN rail (REG), width 2 TE
• Bus system: KNX
• Load types: resistive, inductive, capacitive, fluorescent, halogen, LED
• Manual operation: yes, push buttons
• Status indication: yes, LEDs
• Functions: switching, scene control, time functions, logic functions, status feedback
• Connection: screw terminals, KNX bus terminal
• Protection class: IP20
• Operating temperature: -5 °C to +45 °C
• Power consumption (KNX): max. 10 mA
• Short-circuit protection: requires upstream fuse
• Overload protection: requires upstream fuse

Our verdict

A reliable and feature-rich KNX switching actuator for two 16 A loads, with manual override and clear status indication, all in a compact DIN rail module.
