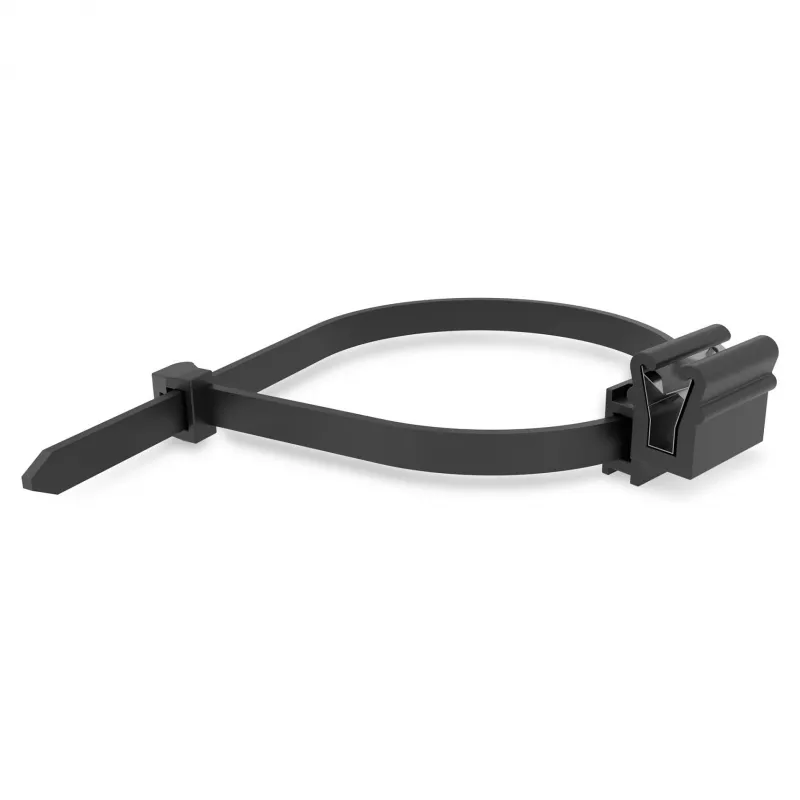

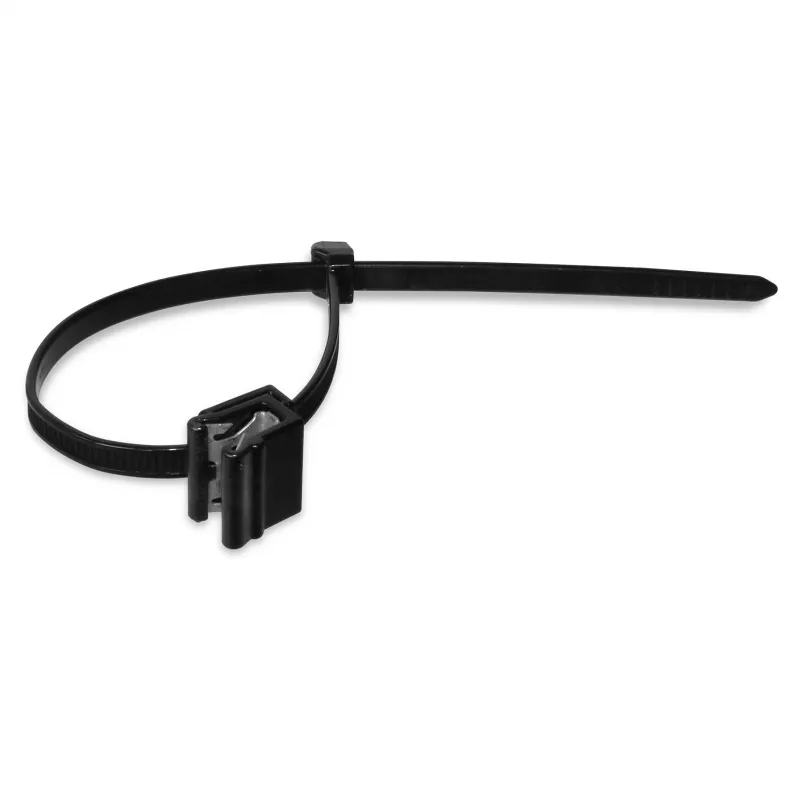

K2 Kabelmanager PA66W 2002870 fascette con clip di montaggio

The K2 Cable Manager PA66W is a robust cable tie with an integrated mounting clip, engineered specifically for solar PV cable management. Its standout feature is the tool-free clip-on installation that snaps directly onto K2 mounting rails, providing a secure and efficient way to organize DC and AC cables.

Advantages

This cable manager offers high UV stability and weather resistance, ensuring long-term durability in outdoor solar installations. The polyamide 66 (PA66) material is halogen-free and self-extinguishing, enhancing safety. The integrated locking mechanism keeps cables firmly in place, while the white colour blends seamlessly with most solar mounting systems.

Suitable for

• Solar PV installations using K2 Systems mounting rails such as SolidRail and CrossRail
• Managing up to 4 solar cables with cross-sections of 4-6mm²
• Both DC solar cables and AC cables in residential or commercial solar projects
• Installers seeking a quick, tool-free cable management solution

Key specifications

• Material: Polyamide 66 (PA66), halogen-free and self-extinguishing
• Colour: White
• Mounting method: Clip-on / snap-in for K2 rails
• Temperature range: -40°C to +85°C
• Max cable capacity: 4 cables (4-6mm²)
• Installation: Tool-free
• UV and weather resistance: High
• Manufacturer part number: 2002870
• EAN: 4251786217120

Recommendations

For a clean and professional solar installation, use the K2 Cable Manager PA66W to securely route cables along mounting rails. Its quick snap-in design reduces installation time and ensures reliable cable retention even in harsh environmental conditions.
