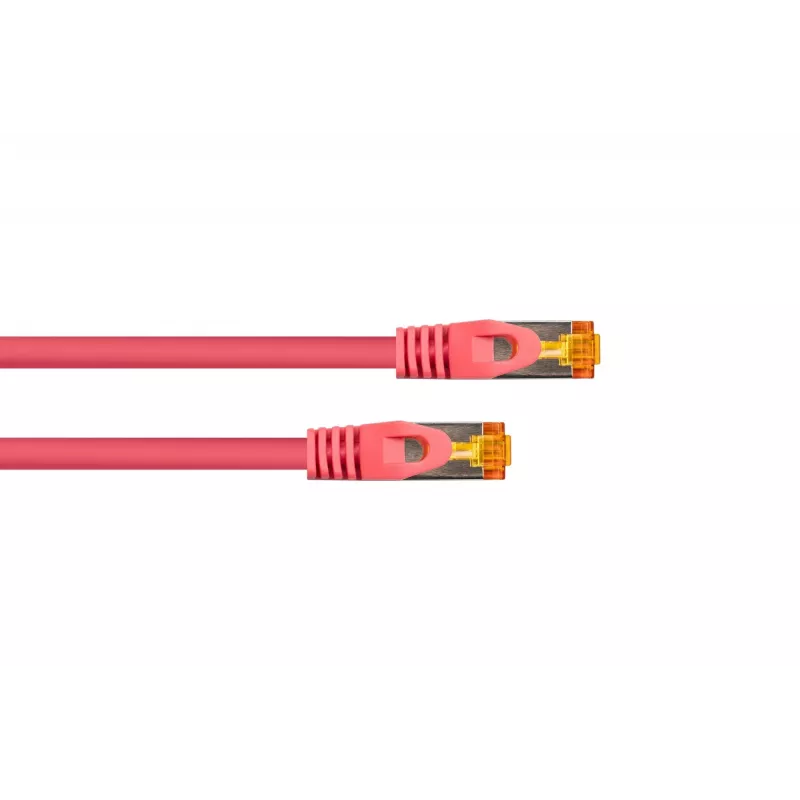

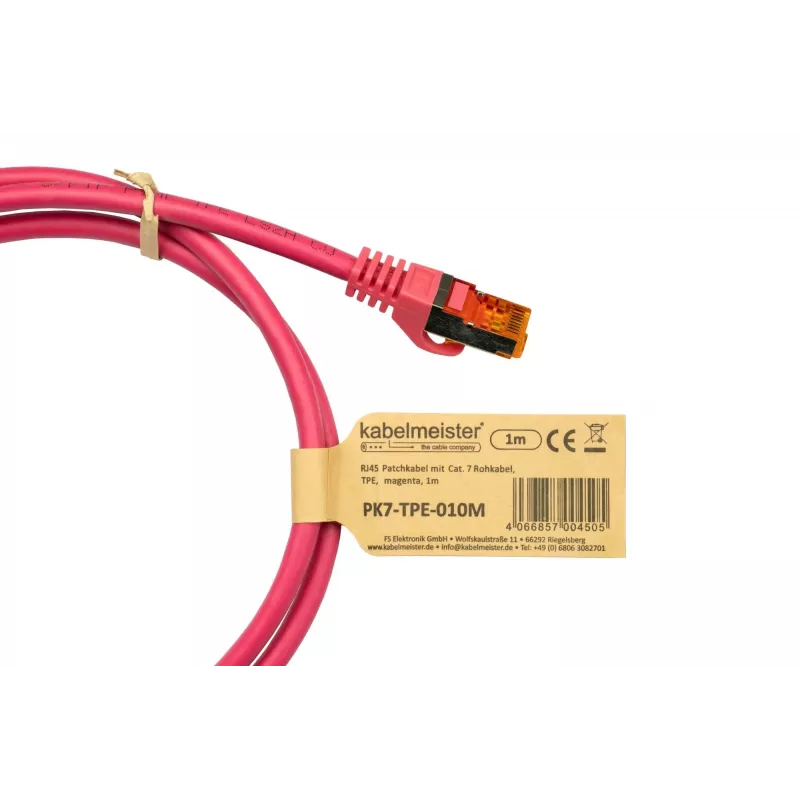

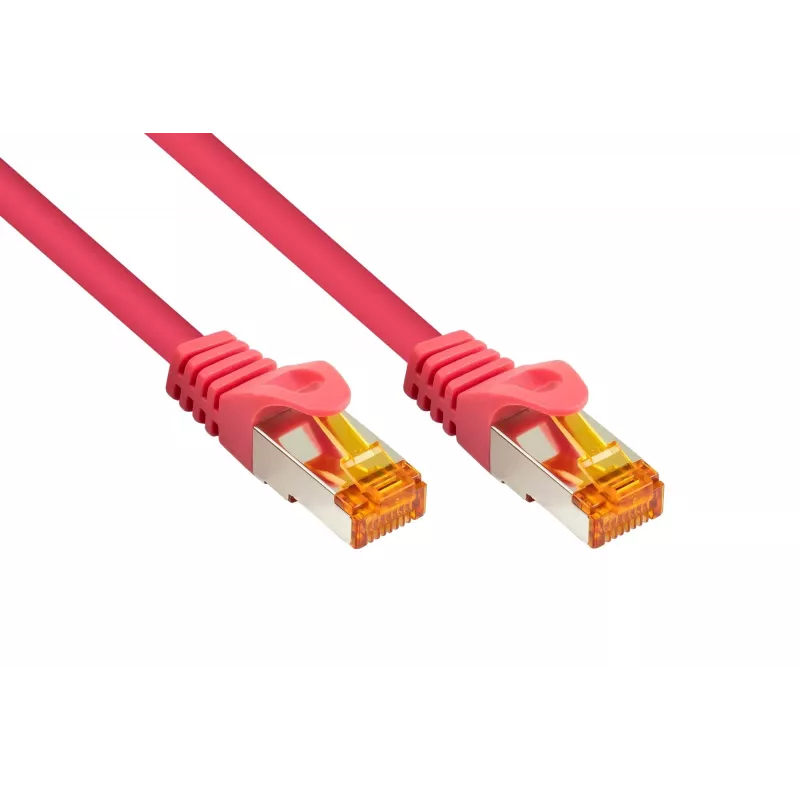

Kabelmeister cavo patch Cat.7 S/FTP, guaina TPE, magenta, 15m

High-speed networks demand cabling that can handle 10 Gigabit Ethernet without interference, yet many installations still rely on outdated cables that bottleneck performance. The Kabelmeister Cat.7 S/FTP Patch Cable solves this by providing robust shielding and a flexible, halogen-free TPE jacket, ensuring reliable, high-bandwidth connections in data centers, offices, and industrial environments. Its magenta color also simplifies cable identification in complex setups.

Who is it for

This cable is ideal for network administrators, IT professionals, and tech-savvy users who need to connect servers, switches, routers, and workstations with maximum speed and minimal crosstalk. It is also suitable for high-performance home networks, gaming setups, and any application requiring 10GBASE-T connectivity over distances up to 15 meters.

Main features

• Cat.7 (Class F) performance with S/FTP shielding (pairs in metal foil plus overall braid) for superior protection against alien crosstalk and EMI.
• Supports data transfer rates up to 10 Gbps and bandwidth up to 600 MHz, ensuring future-proof performance.
• Highly flexible TPE (thermoplastic elastomer) jacket that is halogen-free and LSZH, making it safe for use in public buildings and reducing toxic smoke in case of fire.

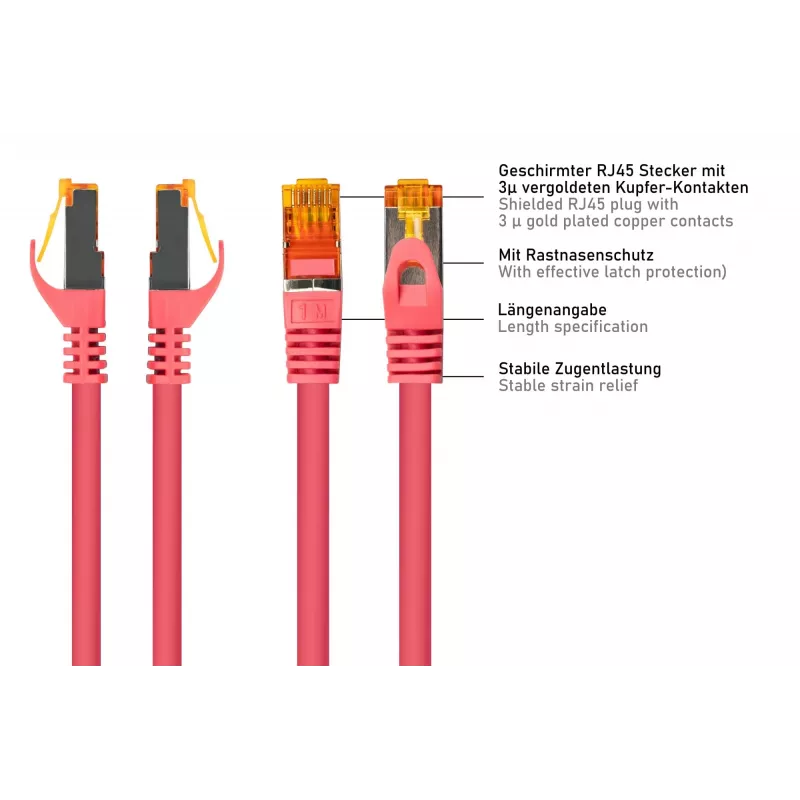

• Gold-plated RJ45 connectors (50µ") with snagless boots for corrosion resistance and reliable connections.
• Stranded copper conductors (AWG 27/7) provide excellent flexibility and durability for frequent bending.
• Backward compatible with Cat.6a, Cat.6, Cat.5e, and Cat.5 networks.
• Vibrant magenta color for easy identification and organization.

Specifications

• Cable type: Shielded Ethernet Patch Cable (S/FTP)
• Cable category: Cat.7 (Class F)
• Shielding: S/FTP (PIMF - pairs in metal foil)
• Connector type: RJ45 (8P8C) male to male
• Connector plating: Gold-plated contacts (50µ")
• Jacket material: TPE (thermoplastic elastomer), halogen-free (LSZH)
• Color: Magenta
• Length: 15.0 meters
• Conductor material: Oxygen-free copper (OFC)
• Conductor gauge: AWG 27/7 (stranded)
• Bandwidth: Up to 600 MHz
• Data transfer rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Wiring standard: TIA/EIA 568B
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-B.2-10
• Number of pairs: 4 twisted pairs
• Compatibility: Backward compatible with Cat.6a, Cat.6, Cat.5e, Cat.5

Tips

To achieve optimal performance, avoid bending the cable beyond its minimum bend radius and keep it away from sources of electromagnetic interference such as power lines and fluorescent lights. When routing through tight spaces, the flexible TPE jacket allows for easier installation without kinking. For best results, pair this cable with Cat.7 compatible network equipment.
