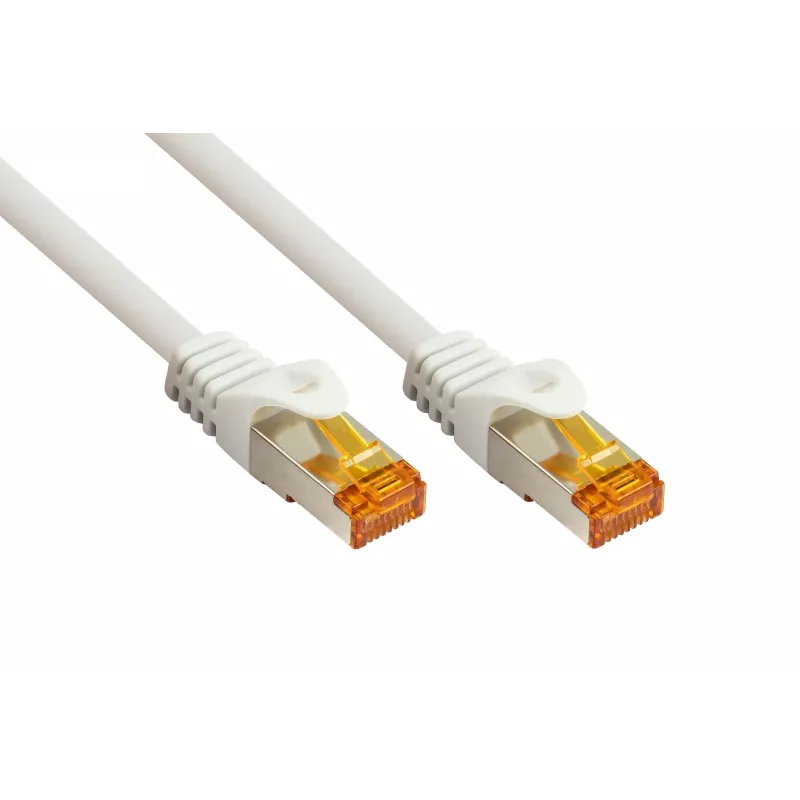

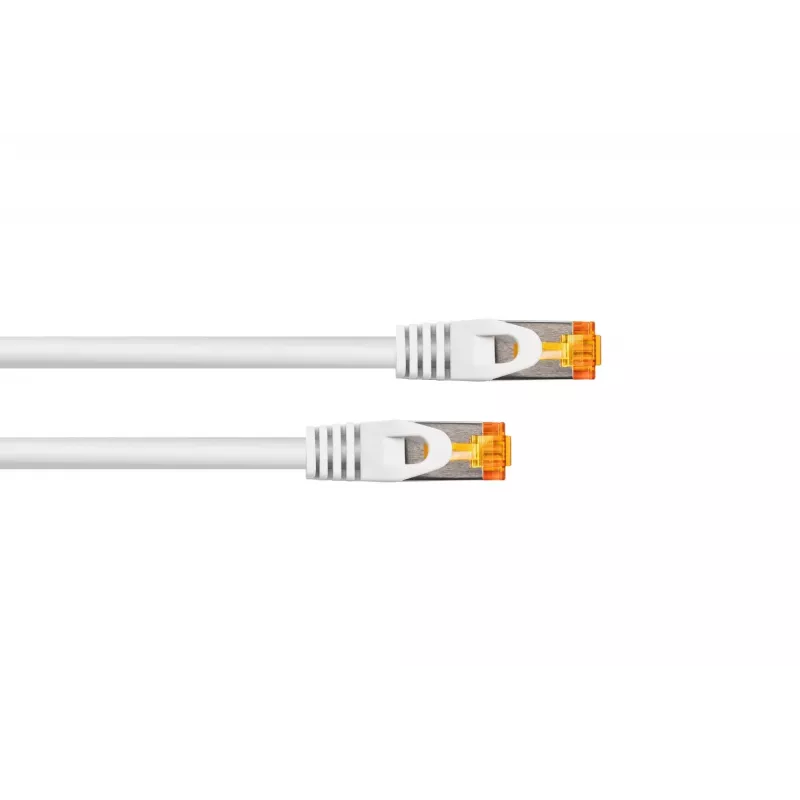

Kabelmeister Cavo patch Cat.7 S/FTP, guaina TPE, senza alogeni, bianco, 5m

Experience 10 Gigabit Ethernet at up to 600 MHz with this Kabelmeister Cat.7 patch cable, built with S/FTP shielding (PiMF) for maximum signal integrity in high-density network environments. The 5-metre length and white TPE jacket make it a clean, flexible, and halogen-free solution for professional installations.

Overview

This Kabelmeister patch cable is engineered for reliable, high-speed data transmission in demanding LAN applications. It features four individually shielded twisted pairs (PiMF) wrapped in an overall braided shield (S/FTP), providing superior protection against electromagnetic interference (EMI) and crosstalk. The cable is constructed with stranded 26 AWG copper conductors, ensuring excellent flexibility and durability for frequent patching. The halogen-free TPE jacket is not only environmentally friendly but also highly flexible and resistant to wear, making it ideal for use in offices, data centres, and industrial settings.

What stands out

• Cat.7 performance: supports 10GBASE-T Ethernet up to 600 MHz bandwidth
• S/FTP shielding: PiMF (pairs in metal foil) plus overall braided shield for superior noise immunity
• Halogen-free TPE jacket: low smoke, zero halogen, and highly flexible for easy routing

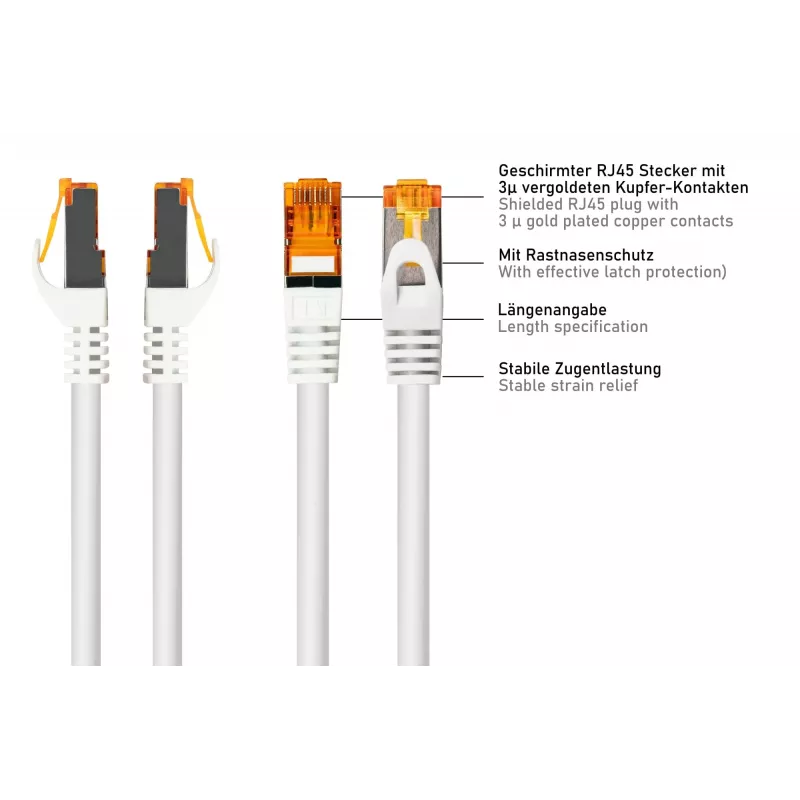

• Gold-plated RJ45 connectors: 50µ" gold plating ensures reliable, corrosion-resistant connections
• Snagless molded boots: protect the locking tab and prevent accidental disconnections
• Backward compatible: works with Cat.6a, Cat.6, Cat.5e, and Cat.5 networks

Technical details

• Cable length: 5 m
• Cable type: Patch cable
• Cable standard: Cat.7
• Shielding: S/FTP (PiMF)
• Connector type: RJ45 (both ends)
• Jacket material: TPE (halogen-free)
• Colour: White
• Data transfer rate: 10 Gbps
• Bandwidth: 600 MHz
• Conductor material: Copper
• Conductor gauge: AWG 26/7 (stranded)
• Connector plating: Gold (50µ")
• Boot type: Snagless, molded
• Wiring standard: TIA/EIA 568B
• Operating temperature: -20°C to +60°C
• Standards compliance: ISO/IEC 11801, EN 50173, IEC 60332-1

Our verdict

For high-density network environments where interference is a concern, this Cat.7 cable delivers top-tier performance and durability. The halogen-free TPE jacket adds safety and flexibility, making it a smart choice for professional installations.
