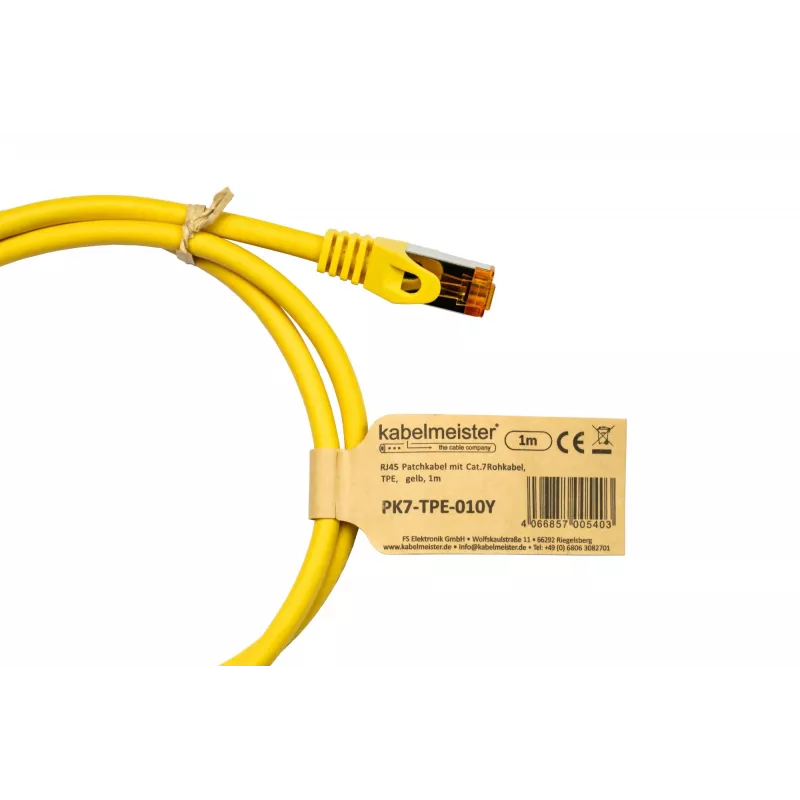

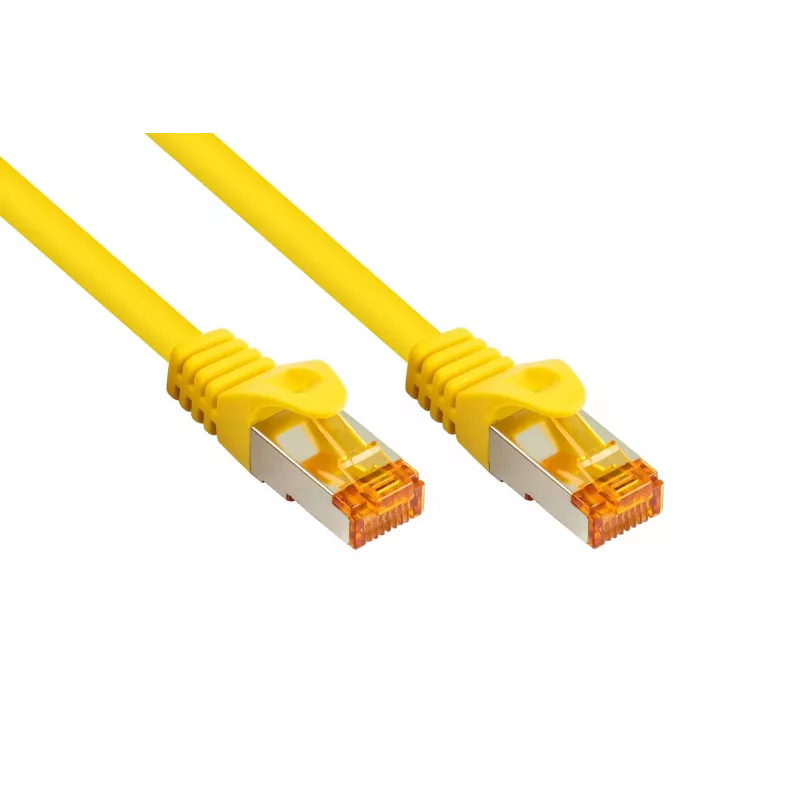

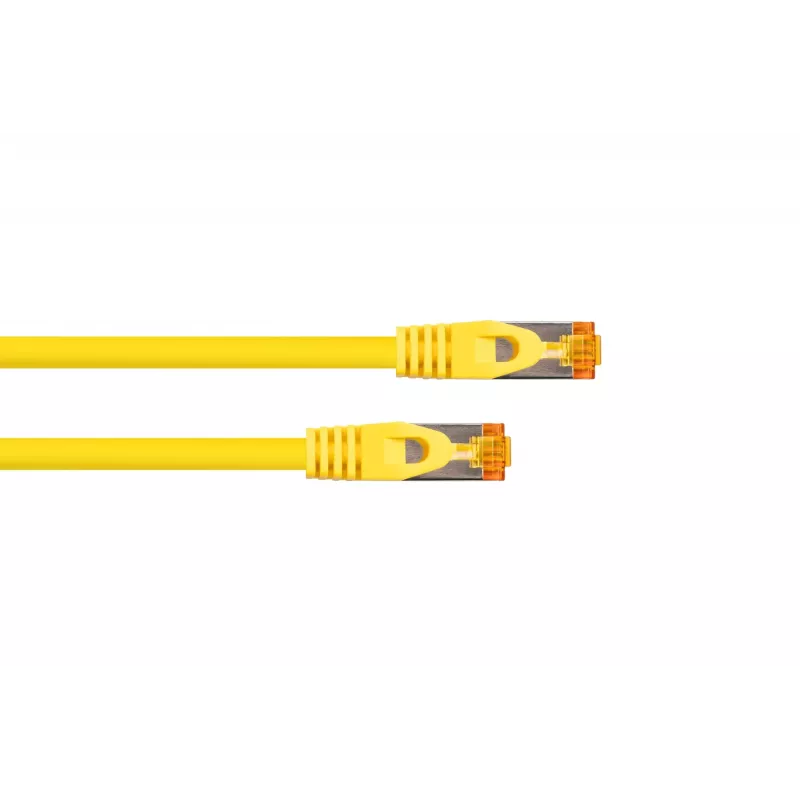

Kabelmeister cavo patch Cat.7 S/FTP, guaina TPE, senza alogeni, giallo, 0,25m

Experience 10 Gigabit Ethernet at 600 MHz bandwidth with this ultra-flexible, halogen-free Cat.7 patch cable from Kabelmeister. The S/FTP shielding with PiMF (Pair in Metal Foil) and overall braid virtually eliminates crosstalk and EMI, making it ideal for high-density data centers and PoE applications. The TPE jacket offers exceptional flexibility and durability, while the gold-plated contacts ensure reliable, corrosion-resistant connections. At just 0.25 m, it's perfect for neat, short-distance patching.

Overview

The Kabelmeister PK7-TPE-003Y is a premium Cat.7 (Class F) Ethernet patch cable engineered for maximum performance and reliability. It features S/FTP construction: each twisted pair is individually wrapped in metal foil, and the entire cable core is protected by an overall braided shield. This dual-layer shielding provides superior protection against alien crosstalk and electromagnetic interference, enabling stable 10GBASE-T connections up to 600 MHz. The cable is backward compatible with Cat.6a, Cat.6, Cat.5e, and Cat.5 networks, making it a versatile choice for any modern infrastructure.

What stands out

• High-speed performance: Supports up to 10 Gigabit Ethernet (10GBASE-T) with a bandwidth of 600 MHz, ideal for demanding network applications.
• Superior shielding: S/FTP (PiMF) design with individual pair foil and overall braid minimizes interference and ensures signal integrity.
• Flexible and halogen-free: The TPE (thermoplastic elastomer) jacket is highly flexible, durable, and free of halogens, meeting LSZH (Low Smoke Zero Halogen) safety standards.

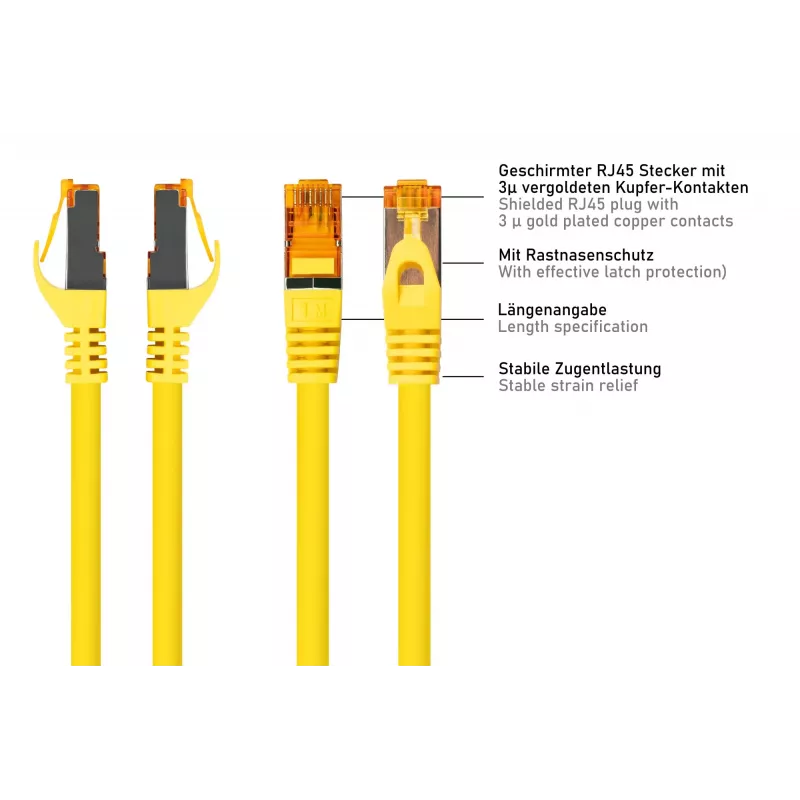

• Gold-plated connectors: RJ45 male connectors with gold-plated contacts provide excellent conductivity and resistance to corrosion.
• Molded anti-snag boot: Protects the latch from damage and prevents snagging during installation, extending the cable's lifespan.
• PoE support: Suitable for Power over Ethernet applications, delivering both data and power to compatible devices.

Technical details

• Cable category: Cat.7 (Class F)
• Shielding: S/FTP (PiMF - Pair in Metal Foil, overall braid)
• Data transfer rate: Up to 10 Gbps
• Bandwidth: Up to 600 MHz
• Length: 0.25 m
• Color: Yellow
• Jacket material: TPE (Thermoplastic Elastomer), halogen-free (LSZH)
• Connector type: RJ45 male to RJ45 male
• Connector plating: Gold-plated contacts
• Conductor material: Bare copper
• Conductor gauge: AWG 26/7 (stranded)
• Wiring standard: TIA/EIA 568B
• Compatibility: Backward compatible with Cat.6a, Cat.6, Cat.5e, Cat.5
• Application: LAN, network, data center, PoE

Our verdict

The Kabelmeister Cat.7 S/FTP patch cable delivers exceptional performance and reliability in a compact, flexible package. Its robust shielding and halogen-free TPE jacket make it a safe and future-proof choice for high-speed networking, especially in environments where cable management and safety are paramount.
