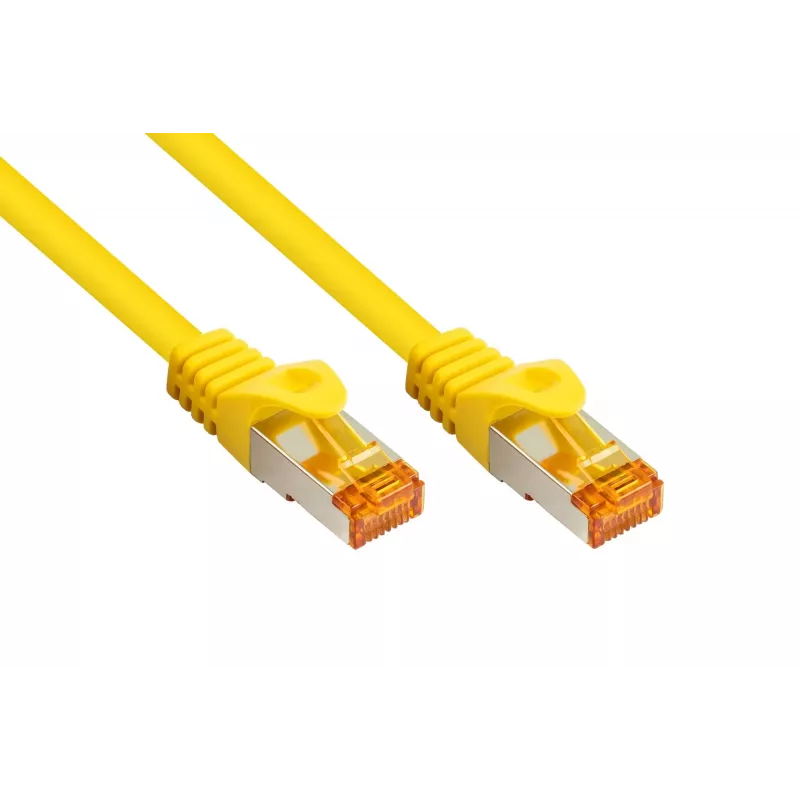

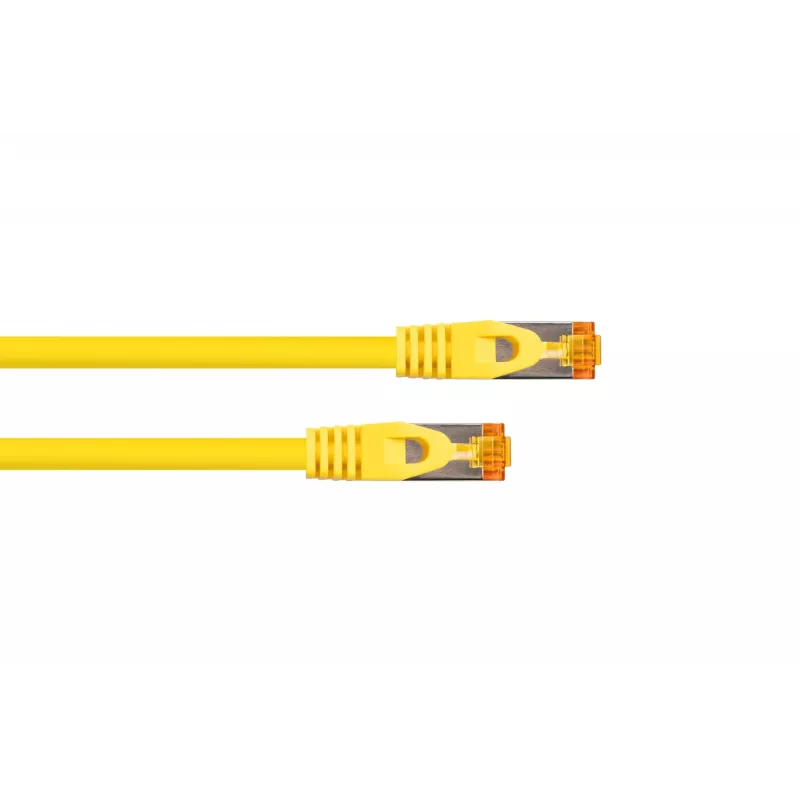

Kabelmeister cavo patch Cat.7 S/FTP, guaina TPE, senza alogeni, giallo, 5m

Network cables often fail when flexibility and safety are paramount—stiff jackets crack under stress, and halogenated materials release toxic fumes in a fire. The Kabelmeister Cat.7 patch cable solves both problems with a highly flexible TPE jacket that is halogen-free, making it ideal for dense installations and public spaces. It delivers 10 Gigabit Ethernet performance up to 600 MHz, ensuring your high-speed network runs flawlessly.

Who is it for

This cable is perfect for IT professionals, data center technicians, and home users who demand reliable, high-speed connections in environments where cable management is tight and safety standards are strict. Whether you're wiring a server rack, connecting a high-performance workstation, or setting up a home office, this cable provides the durability and performance you need.

Main features

• Cat.7 S/FTP shielding with individually foiled pairs (PiMF) for superior crosstalk resistance.
• Supports 10GBASE-T Ethernet up to 600 MHz bandwidth.
• Highly flexible TPE jacket that resists cracking and tangling.
• Halogen-free (LSZH) construction for low smoke and toxicity in fire conditions.

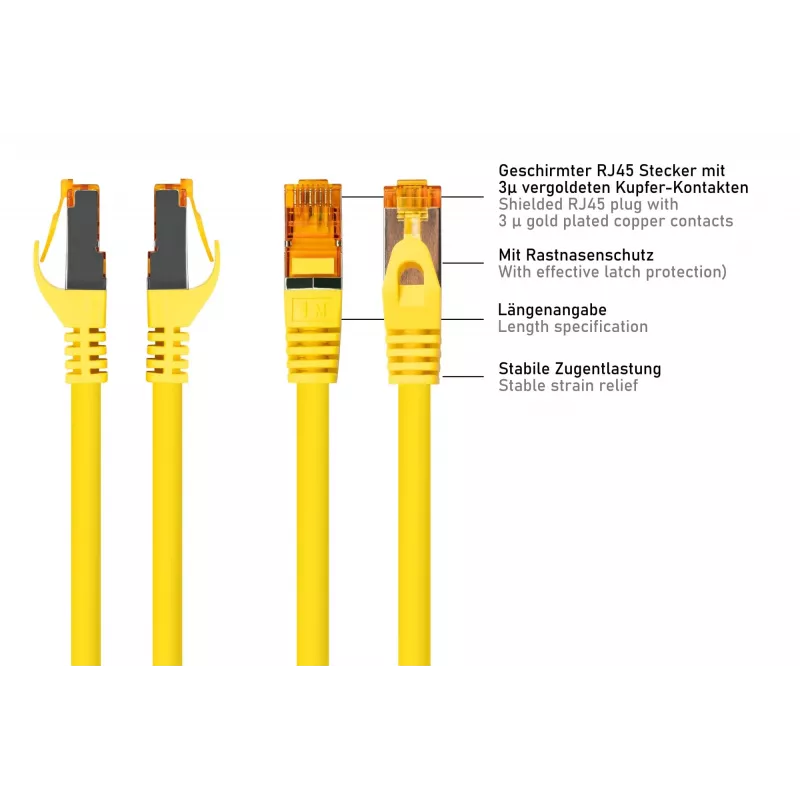

• Gold-plated RJ45 connectors (50µm) with snagless molded boots for reliable connections.
• Stranded copper conductors (AWG 26/7) for flexibility without signal loss.
• Yellow color for easy identification in crowded racks.

Specifications

• Cable length: 5 meters
• Cable category: Cat.7
• Shielding: S/FTP (PiMF)
• Connector type: RJ45 male to RJ45 male
• Bandwidth: up to 600 MHz
• Data transfer rate: up to 10 Gbps
• Jacket material: TPE (thermoplastic elastomer)
• Jacket features: highly flexible, halogen-free (LSZH)
• Conductor material: oxygen-free copper (OFC), stranded AWG 26/7
• Wiring standard: TIA/EIA-568B
• Contact plating: gold (50µm)
• Outer diameter: approx. 6.2 mm
• Operating temperature: -20°C to +60°C
• Compliance: RoHS, REACH, IEC 60332-1

Tips

To maximize performance, avoid bending the cable beyond a 4x outer diameter radius (approx. 25 mm). Use cable ties with rounded edges to prevent jacket damage. For 10G connections, ensure both network devices and switches support 10GBASE-T. The yellow color is excellent for color-coding VLANs or critical links.
