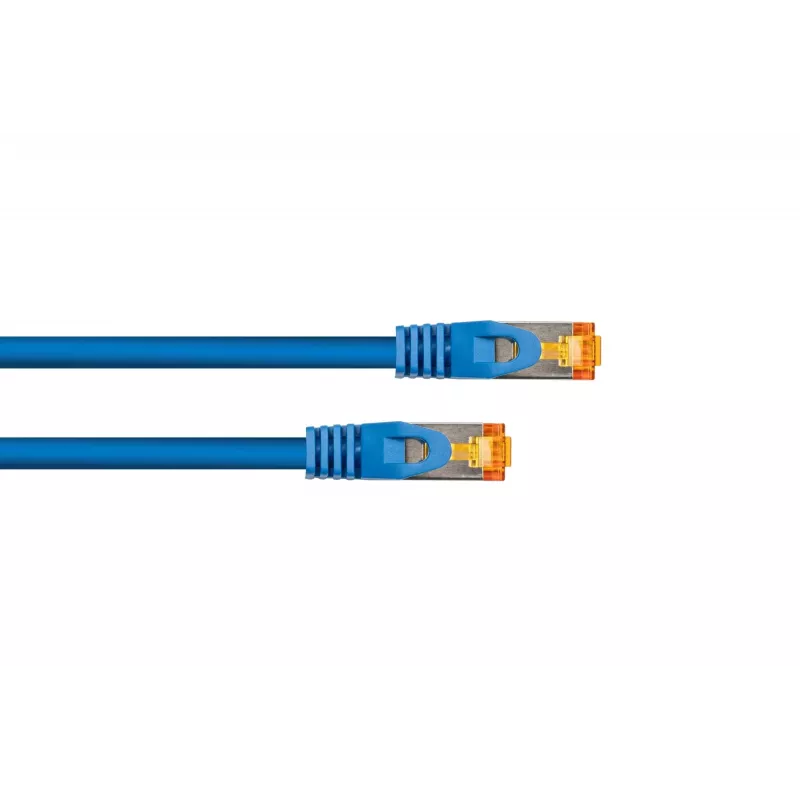

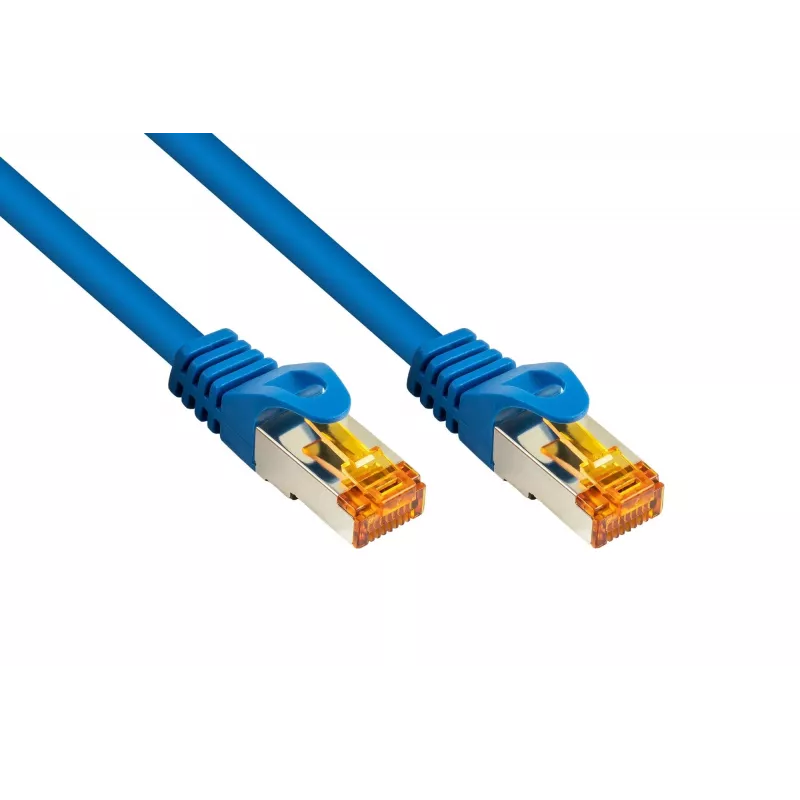

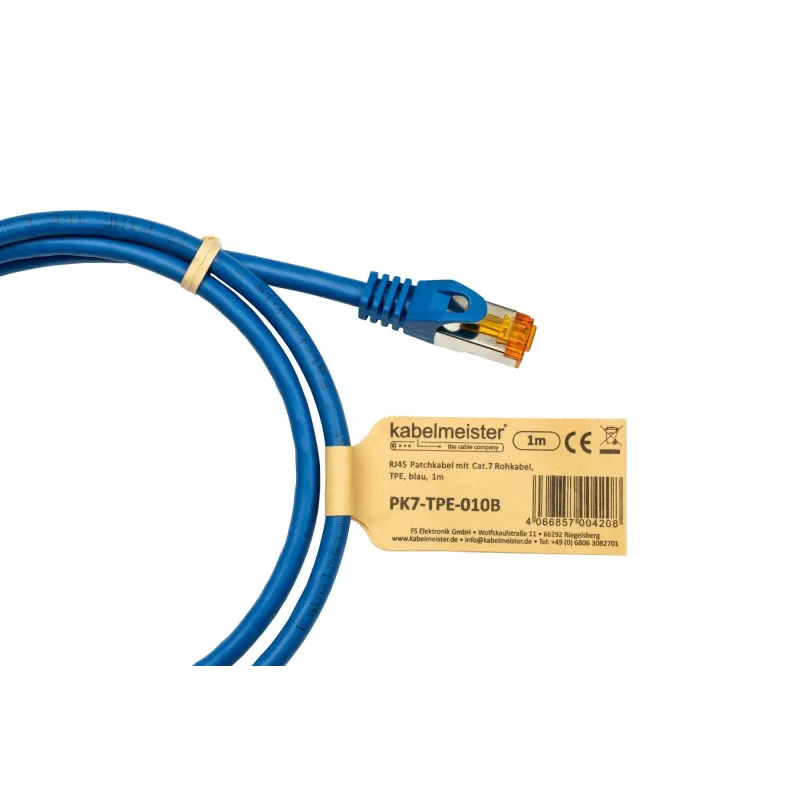

KABELMEISTER cavo patch Cat.7 S/FTP, RJ45, TPE, senza alogeni, blu, 3m

High-performance Cat.7 Ethernet patch cable engineered for 10 Gigabit networks, delivering up to 600 MHz bandwidth with S/FTP shielding and gold-plated RJ45 connectors. The halogen-free TPE jacket ensures flexibility, durability, and safety in demanding installations.

Advantages

This cable combines robust shielding with a highly flexible, halogen-free TPE outer jacket. The S/FTP construction with PIMF pair shielding virtually eliminates crosstalk and EMI, while the stranded copper conductors (AWG 26/7) provide excellent bend tolerance for tight routing. Gold-plated contacts (50µ") resist corrosion and maintain signal integrity over thousands of mating cycles. The blue jacket allows easy color-coding in structured cabling systems.

Suitable for

• 10GBASE-T Ethernet networks requiring Cat.7 performance
• Data centers and server rooms with high-density patching
• Industrial environments where halogen-free cabling is mandated
• PoE applications up to IEEE 802.3bt (PoE++)
• Professional AV-over-IP and HDBaseT installations

Key specifications

• Category: Cat.7 (S/FTP, PIMF)
• Length: 3 meters
• Bandwidth: 600 MHz
• Data rate: 10 Gbps
• Conductor: Stranded copper, AWG 26/7
• Jacket: TPE, halogen-free (LSZH)

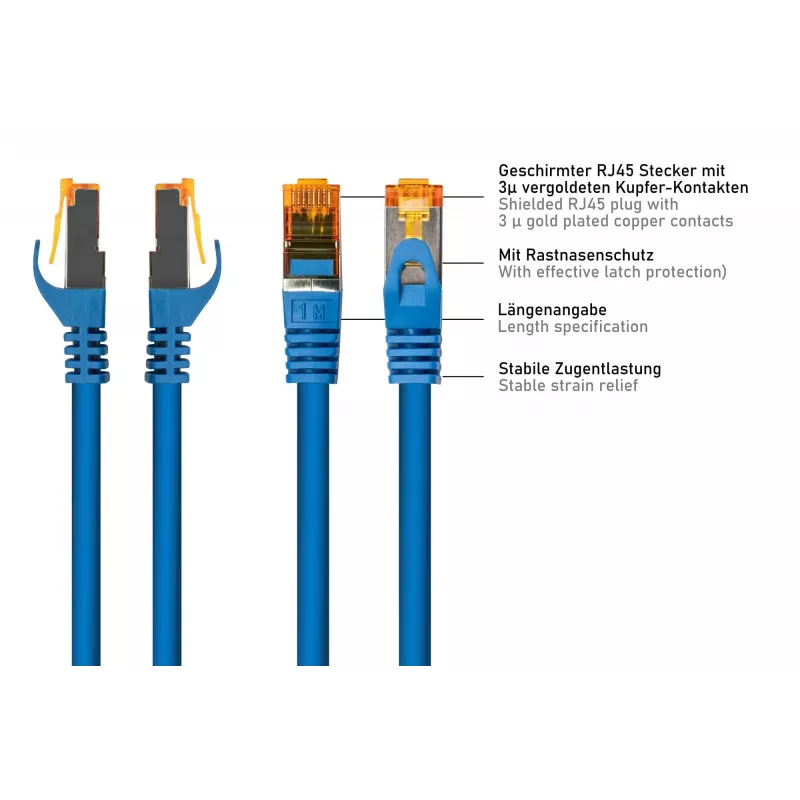

• Connectors: RJ45 male to RJ45 male, gold-plated 50µ"
• Wiring: TIA/EIA 568B
• Outer diameter: 6.2 mm
• Operating temperature: -20°C to 60°C

Recommendations

For optimal performance, pair with Cat.7 shielded patch panels and keystone jacks. Avoid sharp bends below the minimum bend radius (typically 4x cable diameter). Test with a network certifier to verify 10G link quality. Store in a dry environment when not in use.
