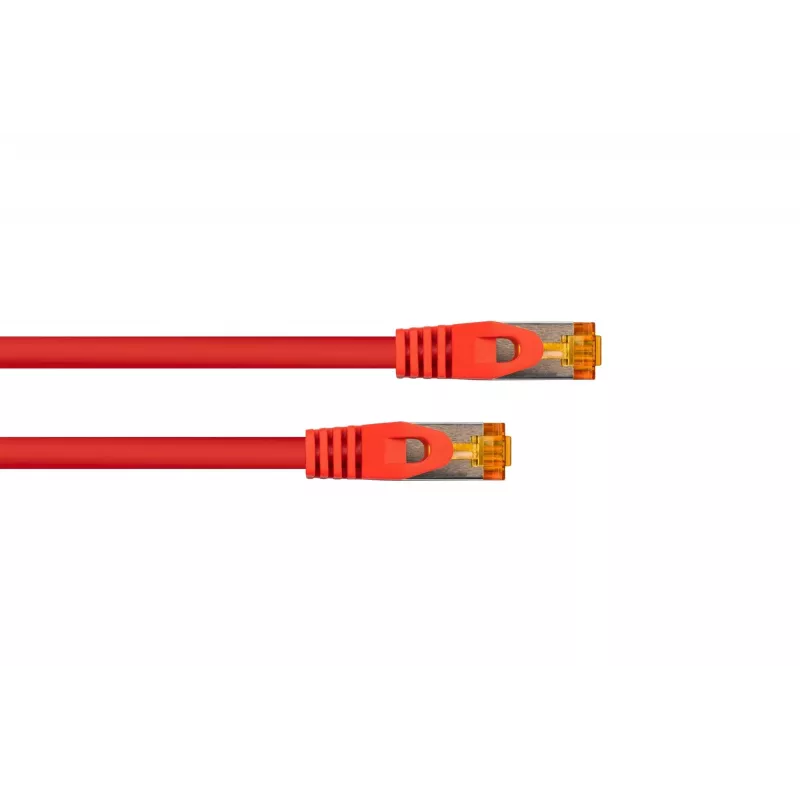

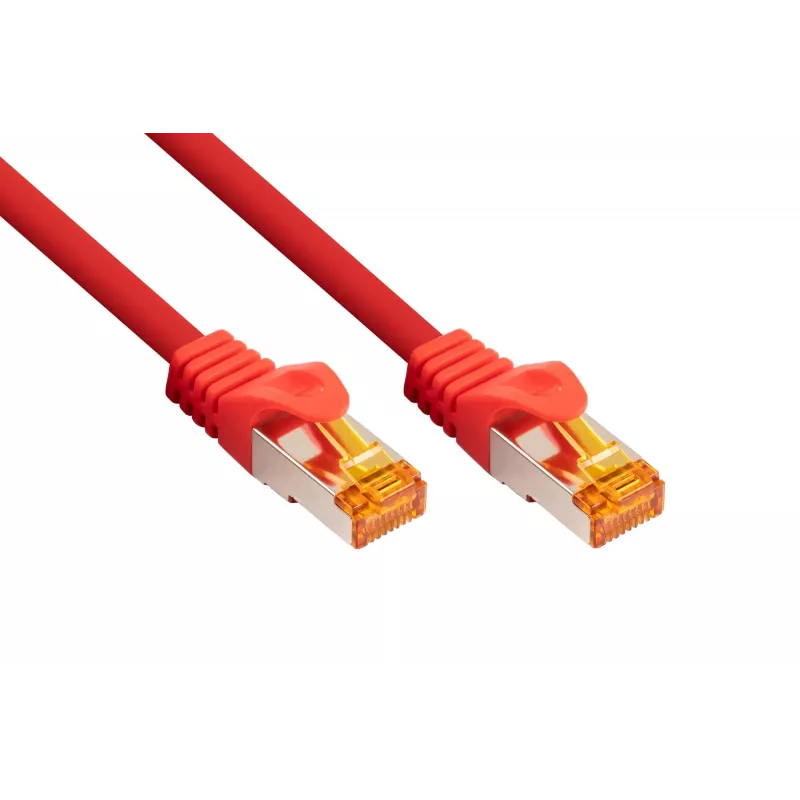

Kabelmeister cavo patch Cat.7 S/FTP RJ45, TPE, senza alogeni, rosso, 3m

High-performance Cat.7 patch cable engineered for 10 Gigabit Ethernet, featuring a highly flexible halogen-free TPE jacket and robust S/FTP shielding for superior signal integrity in demanding network environments.

Advantages

The Kabelmeister Cat.7 patch cable delivers exceptional bandwidth up to 600 MHz, enabling reliable 10GBASE-T connectivity for data-intensive applications. Its S/FTP construction—individual pair shielding plus an overall braid—provides excellent protection against electromagnetic interference (EMI) and crosstalk, ensuring stable, error-free transmission even in high-density installations. The halogen-free TPE jacket is not only highly flexible for easy routing in tight spaces but also low-smoke and zero-halogen, enhancing safety in case of fire. Gold-plated contacts (50µ") resist corrosion and maintain optimal conductivity over thousands of mating cycles, while the molded strain-relief boots protect the cable from bending stress at the connector ends.

Suitable for

• 10 Gigabit Ethernet networks (10GBASE-T) in offices, data centers, and server rooms
• High-bandwidth applications such as video streaming, large file transfers, and virtualization
• Connecting computers, switches, routers, NAS devices, and other RJ45-equipped hardware
• Installations requiring halogen-free cabling for improved fire safety (public buildings, industrial)
• Use in cable trays, conduits, or tight spaces thanks to the highly flexible TPE jacket

Key specifications

• Cable category: Cat.7 (Class F)
• Shielding: S/FTP (PiMF - pairs in metal foil, overall braid)
• Jacket material: TPE (thermoplastic elastomer), halogen-free (LSZH)
• Length: 3.0 meters
• Conductor: Stranded copper (Cu), AWG 26/7
• Bandwidth: Up to 600 MHz
• Data transfer rate: Up to 10 Gbps

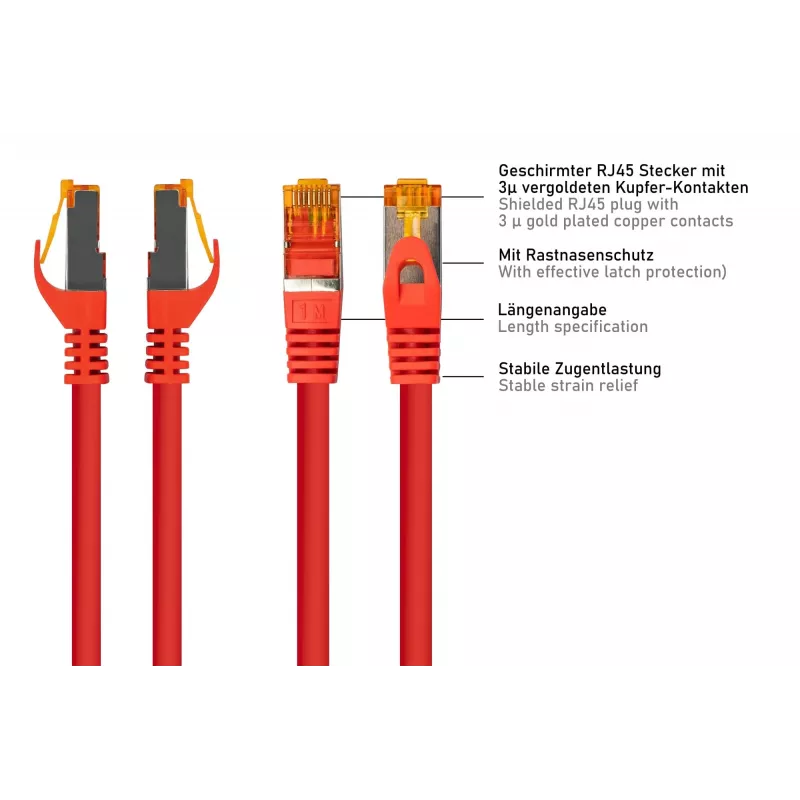

• Connectors: RJ45 male to RJ45 male, gold-plated contacts (50µ")
• Wiring standard: TIA/EIA 568B
• Operating temperature: -20°C to +60°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, pair this cable with Cat.7 or higher rated network equipment and ensure proper grounding of shielded connectors. Avoid sharp bends; maintain a minimum bend radius of approximately 4 times the cable diameter to preserve signal integrity. This cable is ideal for professional installations where flexibility, safety, and high-speed performance are critical.
