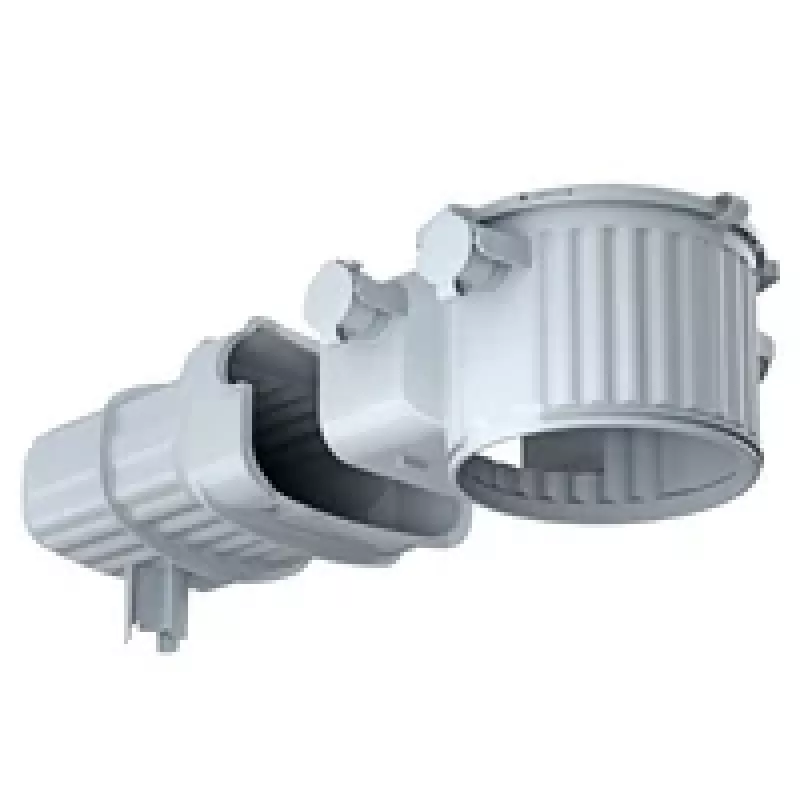

Kaiser Elektro HaloX 100 alloggiamento per faretti da incasso con tunnel 190 mm

The Kaiser Elektro HaloX 100 with Tunnel 190 is a high-quality recessed luminaire housing designed for insulated ceilings and walls. It ensures safe and efficient installation of luminaires with a maximum diameter of 100 mm, while the integrated 190 mm tunnel provides optimal wiring and insulation protection. This housing is made from halogen-free, flame-retardant plastic and is air-tight, making it suitable for vapor barriers. It features tool-free quick installation and multiple cable entries for flexible wiring.

Advantages

This housing offers numerous benefits: it is compatible with various luminaire types including LED, low-voltage halogen, and high-voltage halogen. The integrated tunnel simplifies wiring and protects insulation. The housing is optimized for heat management, ensuring safe operation. It is suitable for insulation up to 190 mm thickness and can be installed quickly without tools. The VDE and CE certifications guarantee high safety standards.

Suitable for

• Recessed luminaires with diameter up to 100 mm
• Insulated ceilings and walls
• Use with vapor barriers
• LED, low-voltage halogen, and high-voltage halogen luminaires

Key specifications

• Product Type: Recessed Luminaire Housing
• Max. Luminaire Diameter: 100 mm
• Tunnel Length: 190 mm
• Material: Halogen-free, flame-retardant plastic
• Air-tightness: Yes, suitable for vapor barriers
• Installation Method: Tool-free, quick installation
• Cable Entries: 8 combi entries for NYM cables, 2 entries for conduits M20/M25
• Heat Management: Optimized for safe operation
• Insulation Compatibility: Suitable for insulation up to 190 mm thickness
• Housing Diameter (Outer): 160 mm
• Housing Height (Outer): 120 mm
• Color: Orange
• Protection Class: IP20
• Mounting Type: Flush-mounted
• Certifications: VDE, CE

Recommendations

For best results, use with compatible luminaires and ensure proper installation according to manufacturer guidelines. The housing is designed for professional use and should be installed by qualified personnel.
