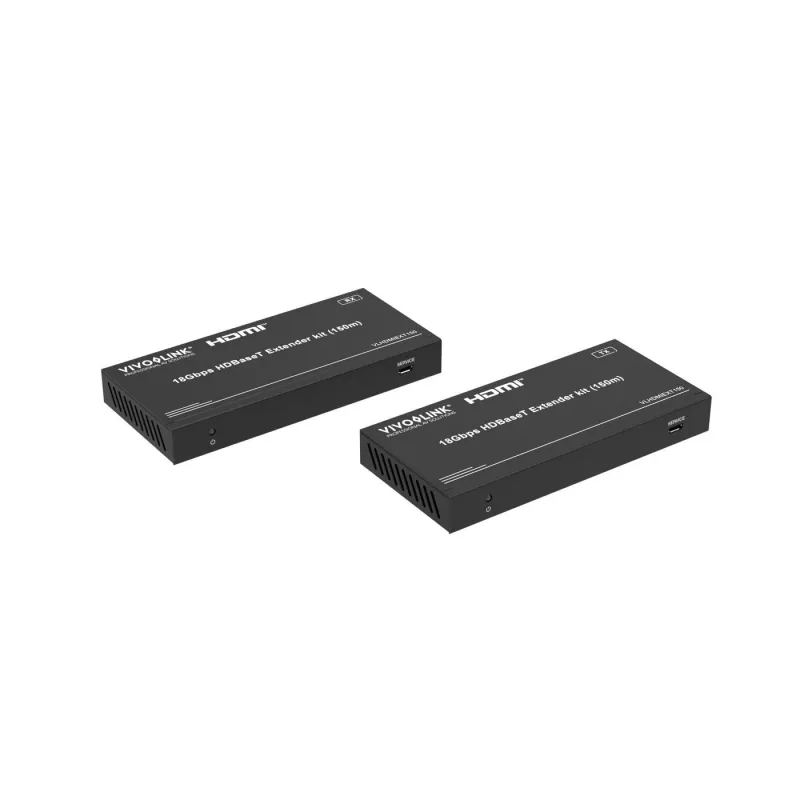

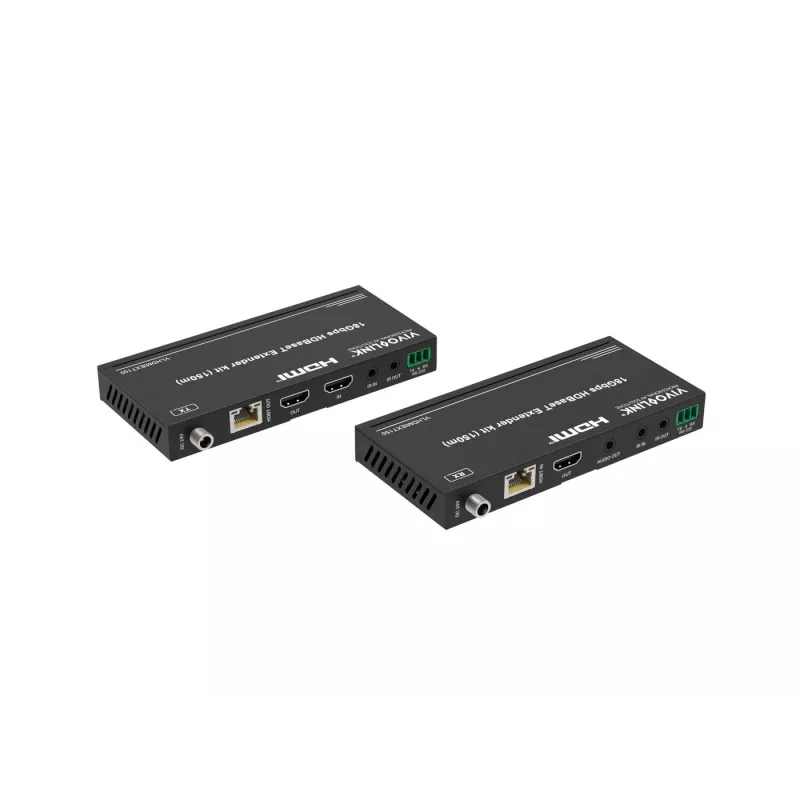

Kit extender HDBaseT VivoLink VLHDMIEXT150 18 Gbit/s 4K su singolo cavo Cat

The Vivolink VLHDMIEXT150 – is a signal extender solution designed for professional AV installations, ensuring seamless and high-quality signal transmission over long distances. This advanced HDMI extender is ideal for extending signals in meeting rooms, conference halls, and other professional settings.
Key Features:
Extended Transmission Distance: Capable of transmitting 4K2K signals up to 120 meters and 1080P signals up to 150 meters via a single CAT5e/6 cable, making it perfect for large meeting rooms and professional AV setups.

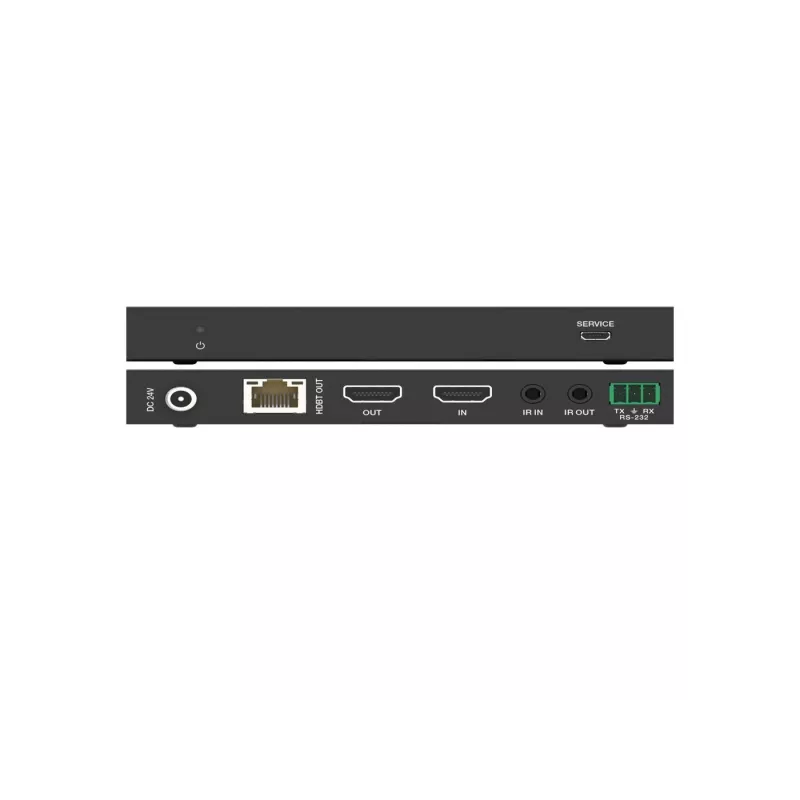

HDMI Loop Output: Includes an HDMI loop output on the transmitter for local monitoring, enhancing flexibility and control.

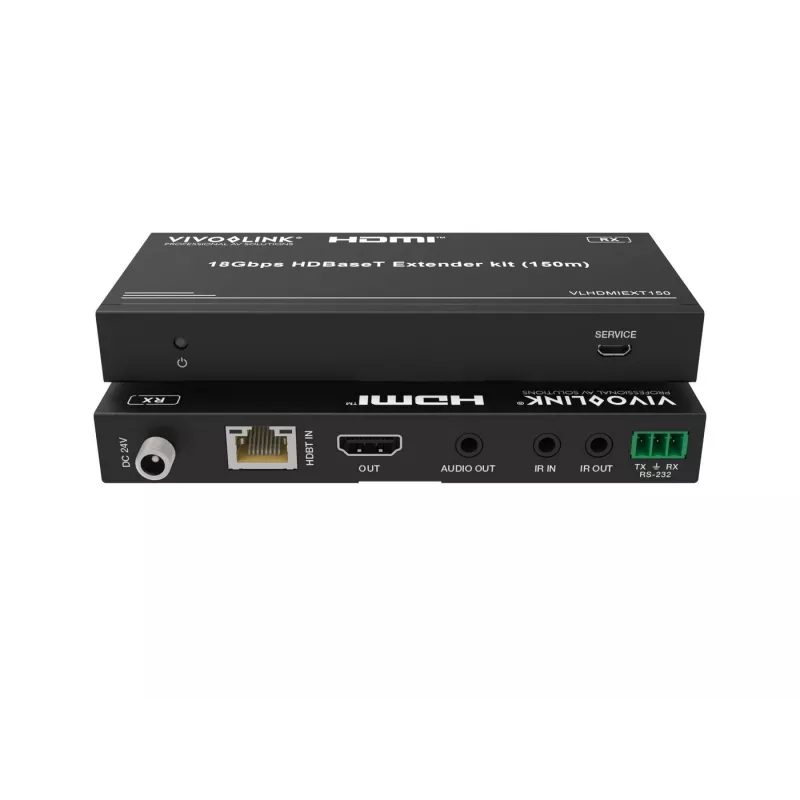

De-embedded Audio: Provides de-embedded audio with analog stereo output on the receiver, ensuring high-quality sound for presentations and meetings.
Bi-directional IR, RS-232, and CEC Pass-through:
Facilitates seamless control and communication between devices, essential for integrated AV systems.
Advanced HDR Support: Supports HDR, HDR10+, Dolby Vision, and HLG functions, delivering stunning visual experiences that enhance professional presentations.
Power over Cable (PoC): Simplifies installation with PoC functionality, reducing the need for additional power sources and cables.
Compliance: Fully compliant with HDCP 2.2 / HDCP 1.4 and DVI 1.0 standards, ensuring compatibility with a wide range of devices.
Compact Design: Features a compact design for easy and flexible installation, making it suitable for various professional environments.
The Vivolink VLHDMIEXT150.is the perfect choice for extending HDMI signals in meeting rooms and other professional settings.

Typical installation:
It can be installed anywhere need to extend AV/IR
E.g. Meeting room or Residential or digital signage etc.

Function:
HDMI 2.0
Point to point,Tx to Rx for 150m@1080P,120m 4K@60Hz 4:4:4

Key features:
HDMI 2.0b and HDCP 2.2 compliant
Support 18Gbps video bandwidth & video resolution up to 4K2K@60Hz YUV 4:4:4
With Mode DIP switch to select HDBaseT Mode & Long Reach Mode
Long Reach Mode: video signal transmission distance can be extended up to 150m for 1080P or120m for 4K60
Bi-directional IR signal
Support bi-directional POC (Power over Cable) function
Advanced EDID management
Compact design for easy and flexible installation

Vivolink VLHDMIEXT150

How to use

Connect the transmitter unit to the HDMI source device and the receiver unit to the display. Use a single Cat cable to link the transmitter and receiver units, ensuring the cable run meets required category and length standards for optimal performance. Power each unit according to the supplied power adapters or local power provisions. Once connected, verify source and display resolution settings and adjust display configuration as needed to achieve the desired 4K output. The units work transparently with standard HDMI devices and control systems.

Recommendations

For reliable 4K transmission, use high-quality shielded Cat cable (Cat6a or higher recommended) and avoid running cable parallel to strong sources of electromagnetic interference. Confirm cable length limits supported by HDBaseT performance and test the link after installation. Keep firmware of connected devices up to date and use appropriate power supplies provided by the manufacturer.
