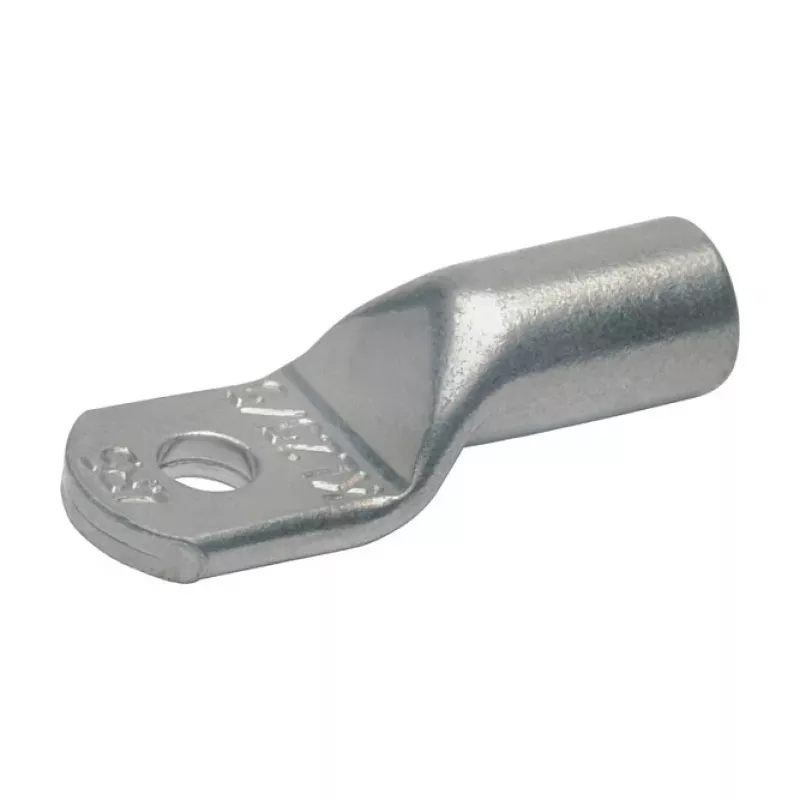

KLAUKE capocorda tubolare 25 mm² M6 rame stagnato 4R/6

The KLAUKE 4R/6 tubular cable lug is a high-quality connector designed for reliable and permanent electrical connections. Manufactured from electrolytic copper (E-Cu) with a tin-plated surface, it offers excellent corrosion resistance and conductivity. Suitable for stranded copper conductors (Classes 2, 5, 6), this lug is ideal for applications up to 1000 V and temperatures ranging from -50°C to +150°C.

Advantages

Tin-plated surface prevents oxidation and ensures long-lasting performance. The hexagonal crimping method provides a secure, gas-tight connection that exceeds DIN 46235 standards. The inspection hole-free design simplifies installation and reduces risk of damage.

Suitable for

• Power distribution and control panels
• Industrial machinery and equipment
• Electrical installations requiring high reliability
• Automotive and marine applications

Key specifications

• Cable cross-section: 25 mm²
• Bolt hole diameter: 6 mm (M6)
• Material: Electrolytic copper, tin-plated
• Overall length: 45 mm
• Flange width: 13 mm
• Outer tube diameter: 9.5 mm
• Inner tube diameter: 7.5 mm
• Flange thickness: 2.5 mm
• Bolt hole diameter (d2): 6.4 mm
• Connection angle: Straight
• Max. voltage: 1000 V
• Operating temperature: -50°C to +150°C

Recommendations

For optimal performance, use with KLAUKE hexagonal crimping tools and dies. Ensure proper conductor stripping and insertion before crimping. Always follow applicable electrical codes and standards.
