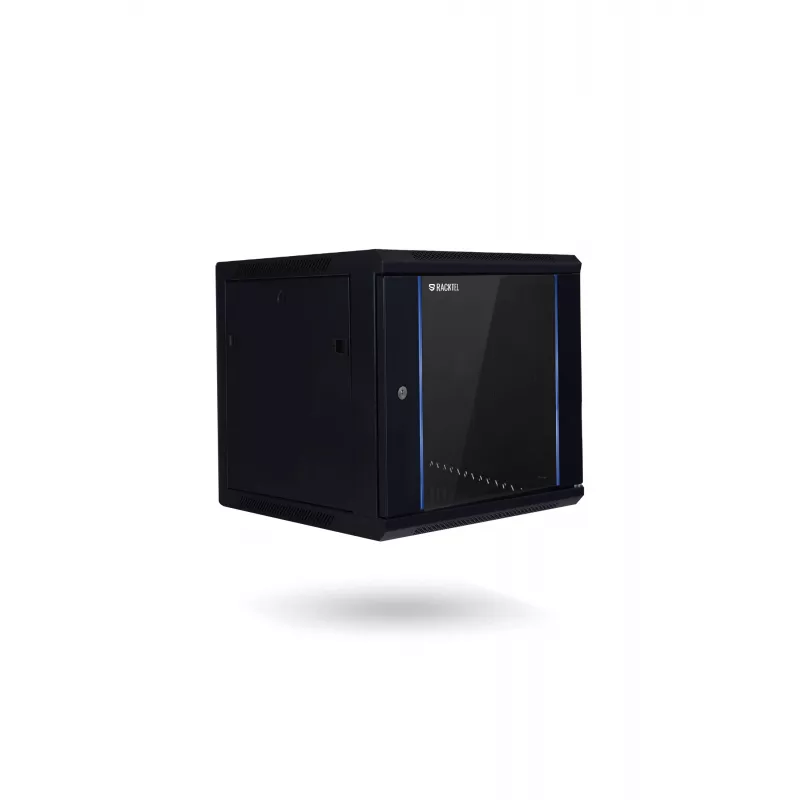

RACKTEL RL-4509WRE armadio rack 9U 600x450 Eco a parete nero

The RACKTEL RL-4509WRE is a 9U wall-mount rack cabinet designed for efficient and secure installation of 19-inch network and IT equipment. Part of the Eco series, this cabinet combines robust steel construction with a sleek black finish (RAL 9005), making it suitable for server rooms, offices, and industrial environments. Its compact 600x450 mm footprint and pre-assembled design simplify deployment while offering reliable protection for your valuable hardware.

Advantages

This wall-mount rack cabinet provides a space-saving solution for organizing network devices, patch panels, and switches. The tempered glass front door with lock ensures equipment security while allowing easy monitoring of LED indicators. Removable side panels facilitate cable management and maintenance, while top and bottom cable entries keep installations tidy. The adjustable mounting rails accommodate equipment of varying depths, and the fan-ready top panel supports active cooling when needed.

Suitable for

• Network switches, routers, and patch panels
• Small to medium server rooms and wiring closets
• Retail, office, and industrial environments requiring wall-mounted equipment
• IT professionals seeking a cost-effective, pre-assembled rack solution

Key specifications

• Rack Units: 9U
• Mounting Type: Wall-mounted
• External Dimensions (WxDxH): 600 x 450 x 470 mm
• Rack Standard: 19-inch
• Material: Steel
• Front Door: Tempered glass with lock
• Side Panels: Removable
• Cable Entry: Top and bottom
• Color: Black (RAL 9005)
• Static Load Capacity: 60 kg
• Protection Rating: IP20
• Adjustable Mounting Rails: Yes
• Ventilation: Passive, fan-ready top panel
• Series: Eco
• Assembly: Pre-assembled
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure the wall mounting surface can support the total weight of the cabinet and installed equipment. Use the included wall mounting kit for secure installation. Consider adding optional fans for active cooling in high-density setups.
