KLAUKE connettore femmina piatto 0,5-1qmm 820/1AV

The KLAUKE 820/1AV is a high-quality flat receptacle (female spade terminal) designed for reliable crimp connections. Manufactured by KLAUKE, a trusted brand in electrical connection technology, this uninsulated terminal is ideal for general-purpose wiring in control systems, automotive applications, and industrial equipment.

Advantages

This flat receptacle offers a secure and durable connection thanks to its tinned brass construction, which provides excellent corrosion resistance and conductivity. The open barrel design ensures easy and consistent crimping, while the compact 2.8 mm tab width allows for space-saving installations. With a wide operating temperature range and RoHS/halogen-free compliance, it meets modern environmental and safety standards.

Suitable for

• General purpose electrical connections
• Control systems and automation
• Automotive wiring harnesses
• Industrial machinery and equipment

Key specifications

• Product Type: Flat Receptacle (Female Spade Terminal)
• Connection Type: Crimp
• Insulation: Uninsulated
• Wire Cross-Section Range: 0.5 - 1.0 mm² (20 - 17 AWG)
• Tab Width: 2.8 mm
• Tab Thickness: 0.8 mm
• Material: Brass, tinned
• Standard Compliance: DIN 46247
• Operating Temperature: -40°C to +120°C
• Max. Current Rating: Up to 10 A (for 1.0 mm² wire)

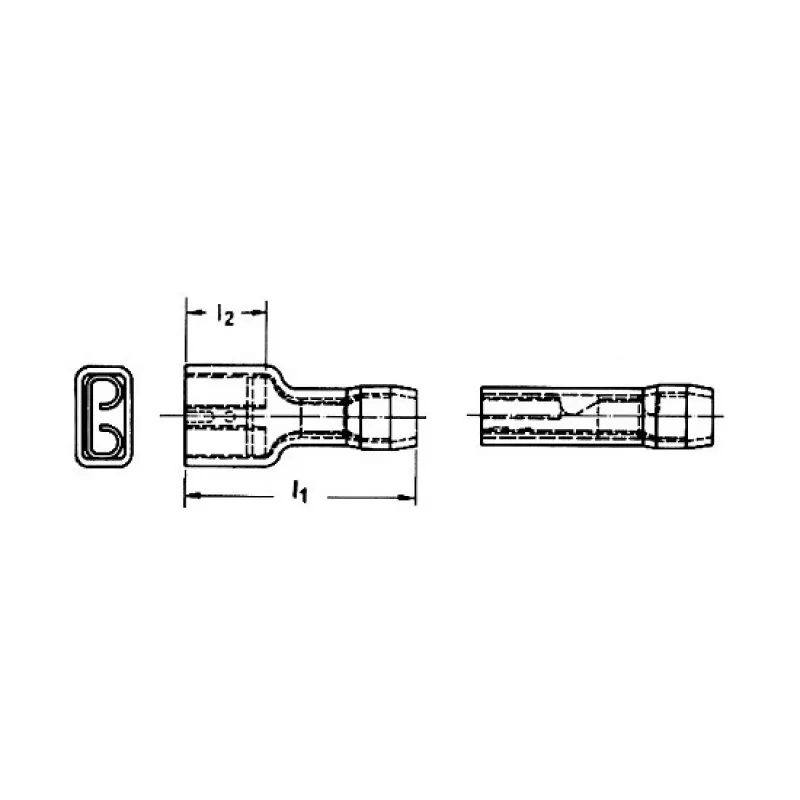

• Overall Length: 15.5 mm
• Barrel Type: Open Barrel
• Packaging Unit: 100 pieces
• RoHS Compliant: Yes
• Halogen-free: Yes

Recommendations

For best results, use with a suitable crimping tool designed for open barrel terminals. Ensure the wire strip length matches the barrel length for optimal connection integrity.
