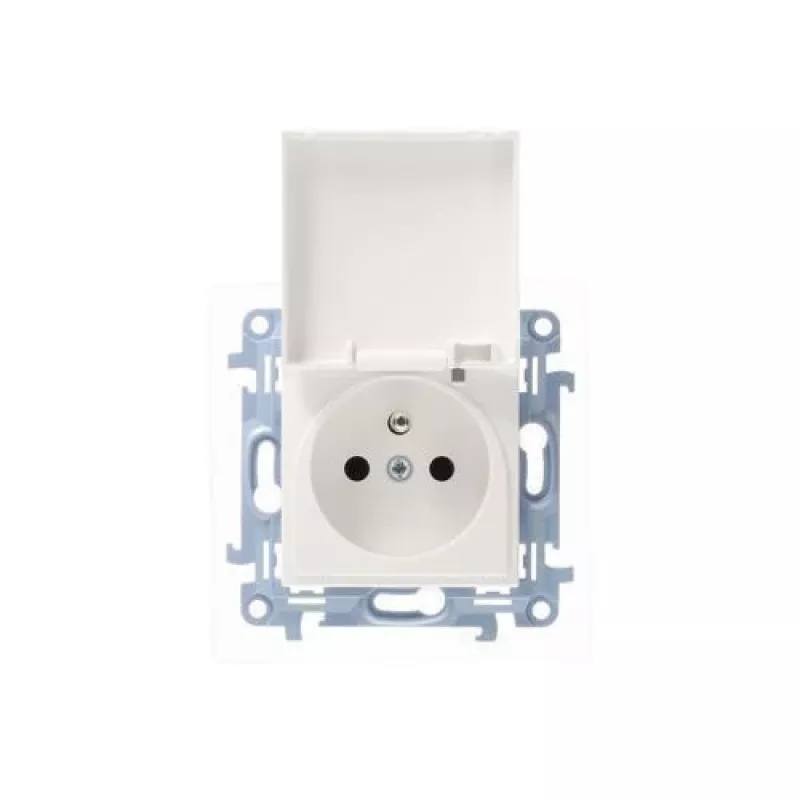

KONTAKT SIMON 10 presa 1 modulo bianca con sportello IP44 morsetti a molla 16A 250V

The KONTAKT SIMON 10 1-Gang White Socket with Flap IP44 Spring Terminals 16A 250V is a high-quality electrical socket designed for reliable and safe power distribution. Part of the Simon 10 series, this socket features a protective flap and IP44 ingress protection, making it suitable for damp areas and protected outdoor environments. The spring terminals allow for quick and easy installation, while the white thermoplastic finish ensures a clean, modern look.

Advantages

This socket offers numerous benefits: the IP44 rating provides protection against splashing water and dust, ideal for bathrooms, kitchens, or covered terraces. The integrated flap adds an extra layer of safety, preventing accidental contact and keeping out dust when not in use. Spring terminals enable tool-free wiring, saving time during installation. Rated at 16A and 250V, it supports standard household appliances and electronics.

Suitable for

• Residential and commercial indoor installations
• Damp areas such as bathrooms, laundry rooms, and kitchens
• Protected outdoor areas like verandas and carports
• Flush-mounted socket outlets requiring Schuko compatibility

Key specifications

• Product Type: Electrical Socket
• Series: Simon 10
• Number of Sockets: 1
• Socket Type: Grounded (Type F / Schuko-compatible)
• Rated Current: 16 A
• Rated Voltage: 250 V AC
• Ingress Protection (IP) Rating: IP44
• Connection Type: Spring Terminals
• Colour: White
• Features: Protective Flap
• Mounting Type: Flush-mounted
• Material: Thermoplastic
• Application Environment: Indoor, Damp Areas, Protected Outdoor
• Standard Compliance: CE
• Module Size: 1 Module
• Earthing System: Pin/Side contacts (Schuko-compatible)
• Installation Method: Quick Connect (Spring Terminals)
• Terminal Capacity: Up to 2.5 mm²

Recommendations

For optimal performance, ensure the socket is installed by a qualified electrician. Use appropriate cable sizes up to 2.5 mm² and follow local electrical codes. This socket is compatible with standard Schuko plugs and provides a secure connection for your devices.
