Kramer C-SC/SC/OM4-164 50m cavo patch in fibra ottica SC a SC duplex multimodale OM4 94-0703164

Deliver 40/100 Gigabit Ethernet up to 150 meters with this 50-meter SC to SC duplex multimode OM4 fiber optic patch cable from Kramer. The 50/125 µm core/cladding diameter and aqua jacket ensure high-speed, low-loss transmission for data centers, SANs, and high-performance networking.

Overview

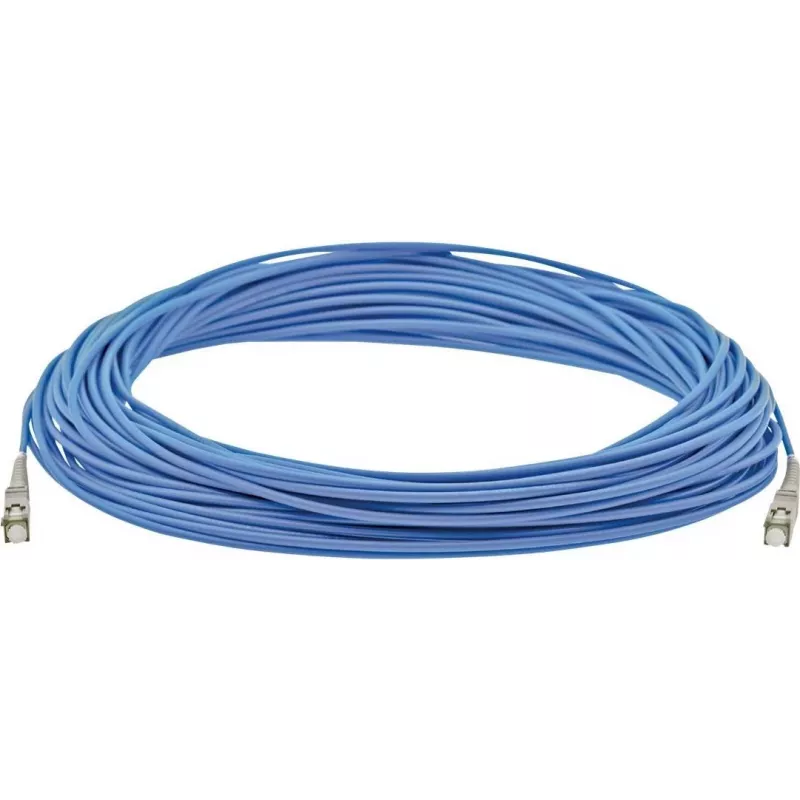

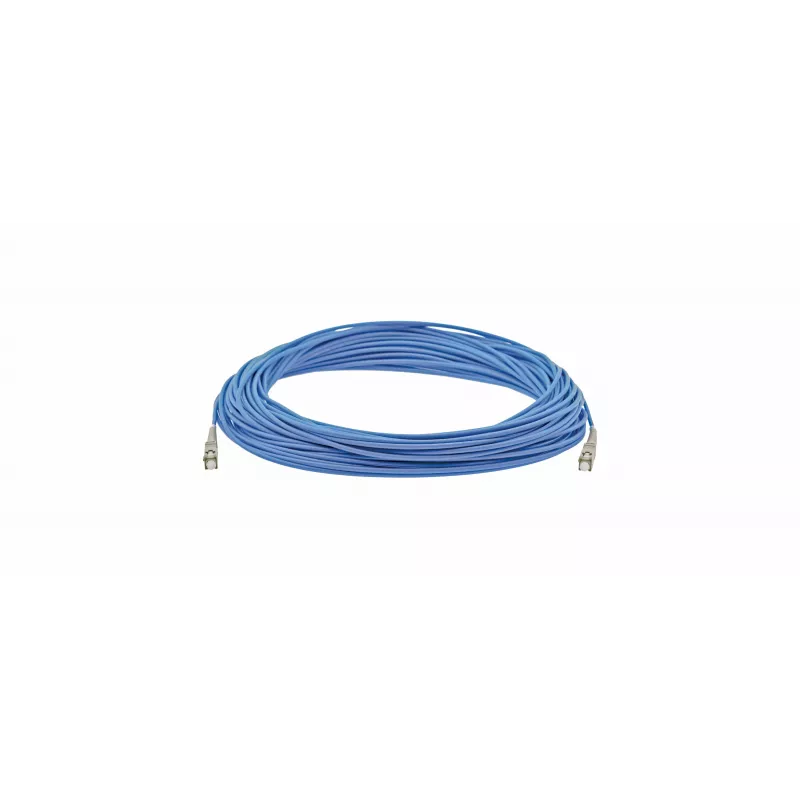

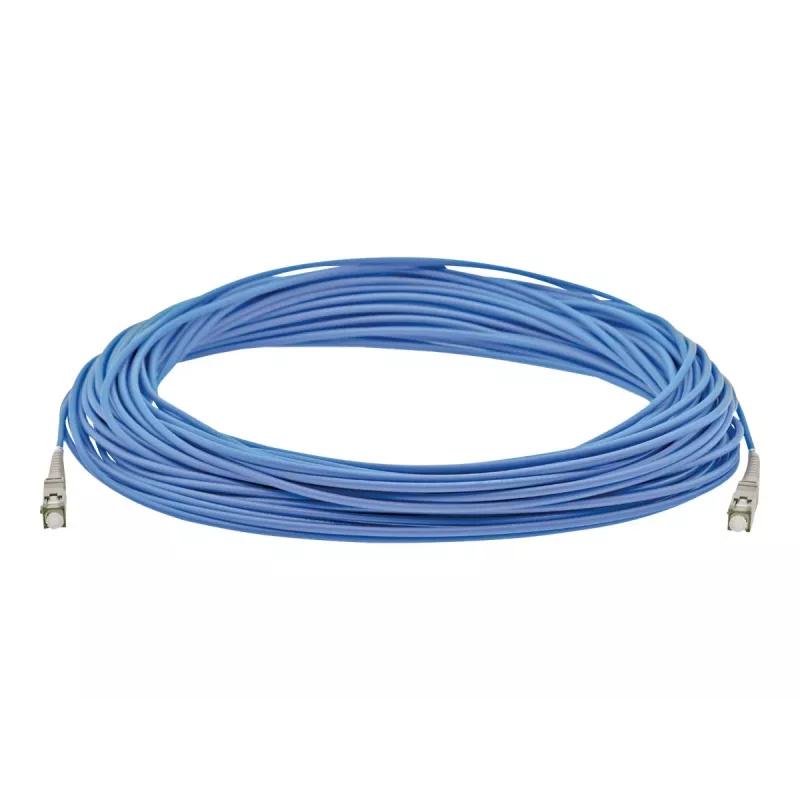

The Kramer C-SC/SC/OM4-164 is a 50-meter fiber optic patch cable terminated with SC male connectors on both ends. It uses OM4 multimode fiber with a 50/125 µm core/cladding diameter, optimized for laser-based transmission and high bandwidth over short to medium distances.

What stands out

• Supports 10GbE up to 550 m and 40/100GbE up to 150 m
• Duplex construction with two fibers for bidirectional communication
• SC connectors provide secure, push-pull latching for reliable connections
• Aqua jacket identifies OM4 fiber and offers durability
• Compliant with TIA/EIA-568-C.3 standards

Technical details

• Cable type: Fiber optic patch cable
• Fiber mode: Multimode
• Fiber class: OM4
• Core/cladding diameter: 50/125 µm
• Connector A: SC male
• Connector B: SC male
• Cable length: 50 m
• Number of fibers: 2 (duplex)
• Maximum 10GbE distance: 550 m
• Maximum 40GbE/100GbE distance: 150 m
• Jacket color: Aqua
• Intended use: High-speed data networking, data centers, SANs
• Compliance: TIA/EIA-568-C.3

Our verdict

A high-performance OM4 patch cable built for demanding network environments, delivering reliable high-speed connectivity over 50 meters.
