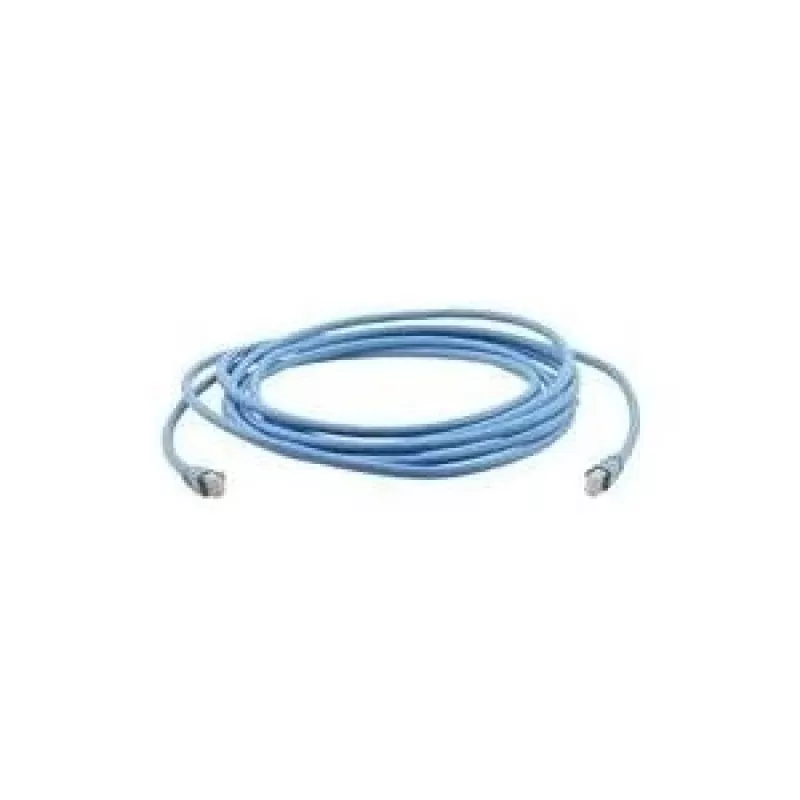

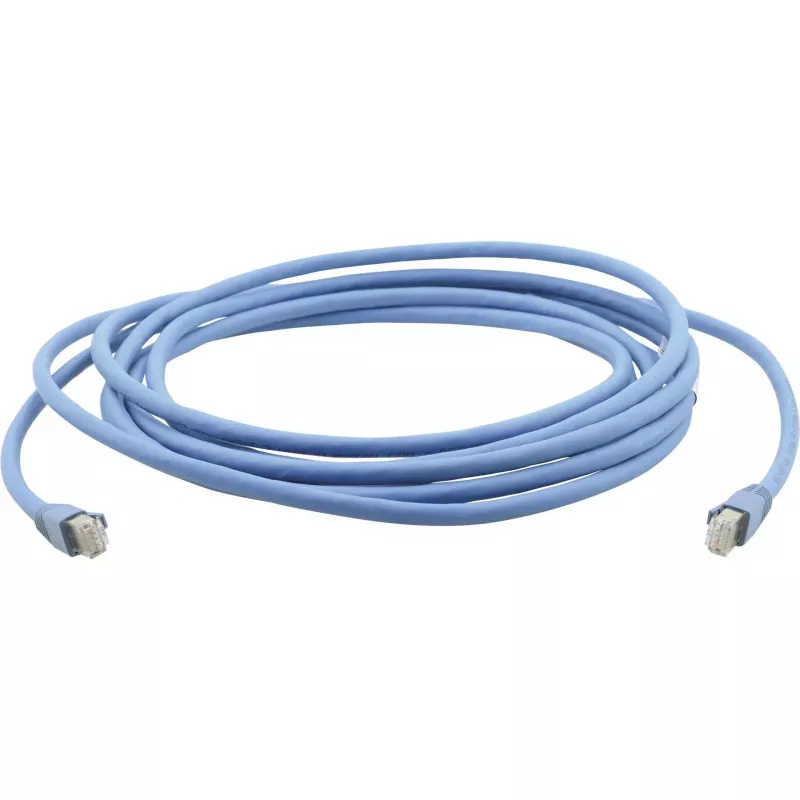

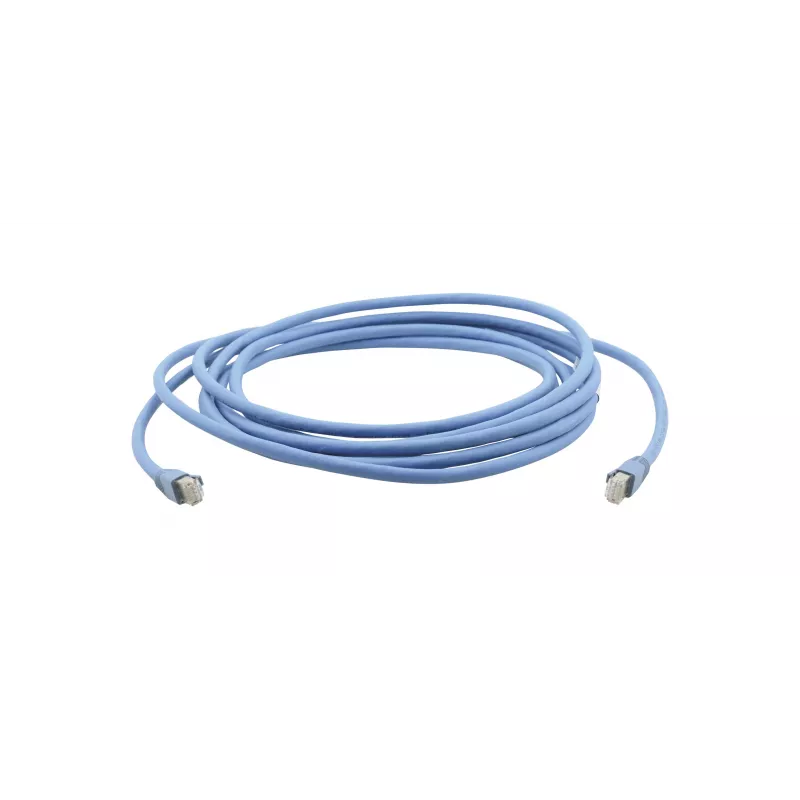

Kramer C-UNIKat-100 cavo patch di rete CAT 6a U/FTP, RJ-45 a RJ-45, 30,5 m, LSZH, blu RAL 5012 99-3460100

Long-distance, high-speed data links in professional AV and IT environments demand a cable that preserves signal integrity over extended runs. The Kramer C-UNIKat-100 is a 30.5-meter CAT 6a patch cable engineered for 10 Gbps Ethernet, HDBaseT, and AV-over-IP applications where reliable, high-bandwidth connectivity is non-negotiable.

Who is it for

System integrators, network administrators, and AV professionals who need a robust, halogen-free cable for permanent installations in offices, data centers, conference rooms, and educational facilities. Its U/FTP shielding and solid bare copper conductors ensure stable performance even in electrically noisy environments.

Main features

• CAT 6a performance: supports up to 10 Gbps data rates and 500 MHz bandwidth.
• U/FTP shielding: each pair is individually foiled to reduce crosstalk and EMI.
• LSZH jacket: low smoke zero halogen, blue RAL 5012, for safety in public spaces.
• Solid bare copper conductors, 23 AWG, for superior conductivity and durability.
• Gold-plated RJ-45 connectors for reliable, corrosion-resistant contacts.
• PoE support: compatible with PoE, PoE+, and UPoE for powering devices over the same cable.

Specifications

• Cable type: Ethernet patch cable
• Category: CAT 6a
• Shielding: U/FTP
• Connectors: RJ-45 male to RJ-45 male
• Length: 30.5 m
• Colour: Blue (RAL 5012)
• Jacket material: LSZH (halogen-free, low smoke)
• Conductor material: Bare copper, solid
• Wire gauge: 23 AWG
• Data transfer rate: up to 10 Gbps
• Bandwidth: up to 500 MHz
• Impedance: 100 Ohm
• PoE support: PoE, PoE+, UPoE
• Compliance: RoHS, REACH

Tips

For best performance, avoid sharp bends and maintain the cable's minimum bend radius during installation. Use cable management to prevent strain on the connectors. This cable is suitable for in-wall or riser installations thanks to its LSZH jacket, but always check local fire codes.
