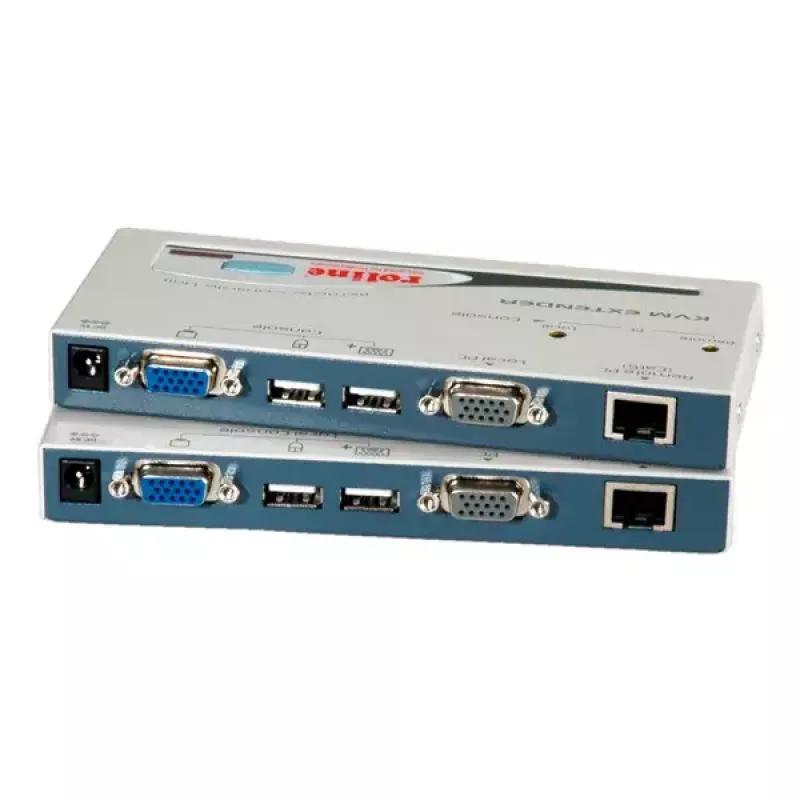

KVM Extender ROLINE Smart USB 14.01.3249

The ROLINE Smart USB KVM Extender 14.01.3249 extends USB keyboard, mouse and VGA monitor signals up to 150 m using a Cat.5e twisted-pair cable. Housed in a compact metal case (20 x 156 x 65 mm), the kit includes a local unit with power supply, a remote unit and a manual. It supports standard USB consoles and common video modes (VGA, SVGA, XGA) with a maximum resolution of 1024 x 768 pixels, enabling placement of the PC in a secure location while the console is positioned conveniently at the workstation.

Advantages

The device combines a KVM extender, KVM switch and PC share functionality in a single solution, allowing two users to share one computer locally and remotely. Video compensation is adjustable via hotkey to maintain optimal signal quality over cable lengths up to the supported limit. USB compatibility ensures support for standard keyboards and mice, and audible key-control confirmation (beep) helps verify operations. The compact metal housing and straightforward installation support reliable, space-saving deployment.

Suitable for

• Remote workstations where the PC must be located in a secure or noise-free area
• Control rooms and monitoring stations requiring local and remote console access
• Environments that need to share a single computer between two users

Key specifications

• Model: ROLINE Smart USB 14.01.3249
• Extension distance: up to 150 m via Cat.5e TP cable
• Maximum resolution: 1024 x 768 pixels
• Supported video modes: VGA, SVGA, XGA
• Console interface: USB keyboard and mouse
• Housing: compact metal case (20 x 156 x 65 mm)

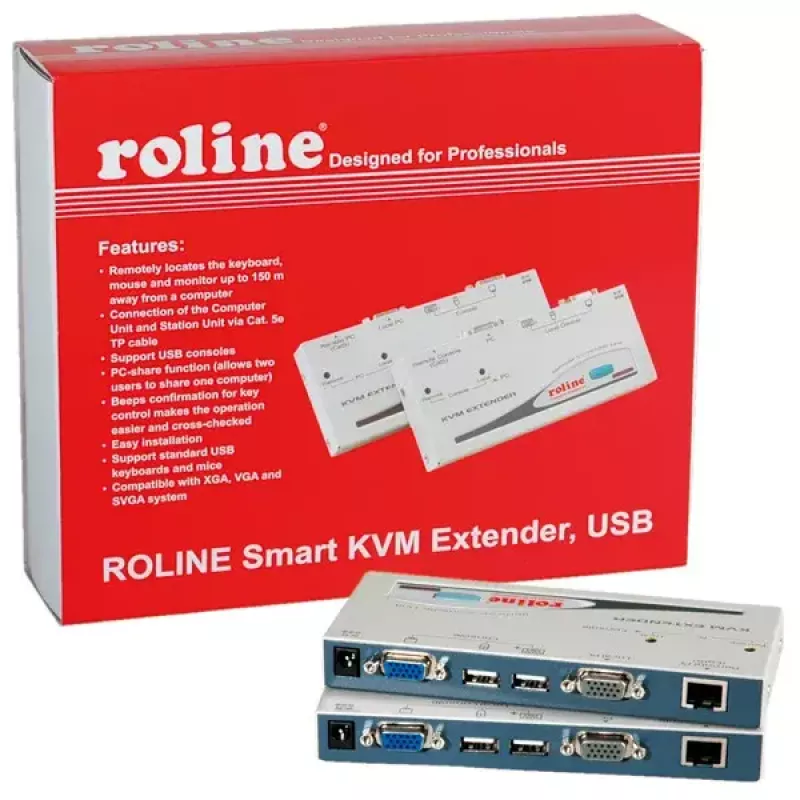

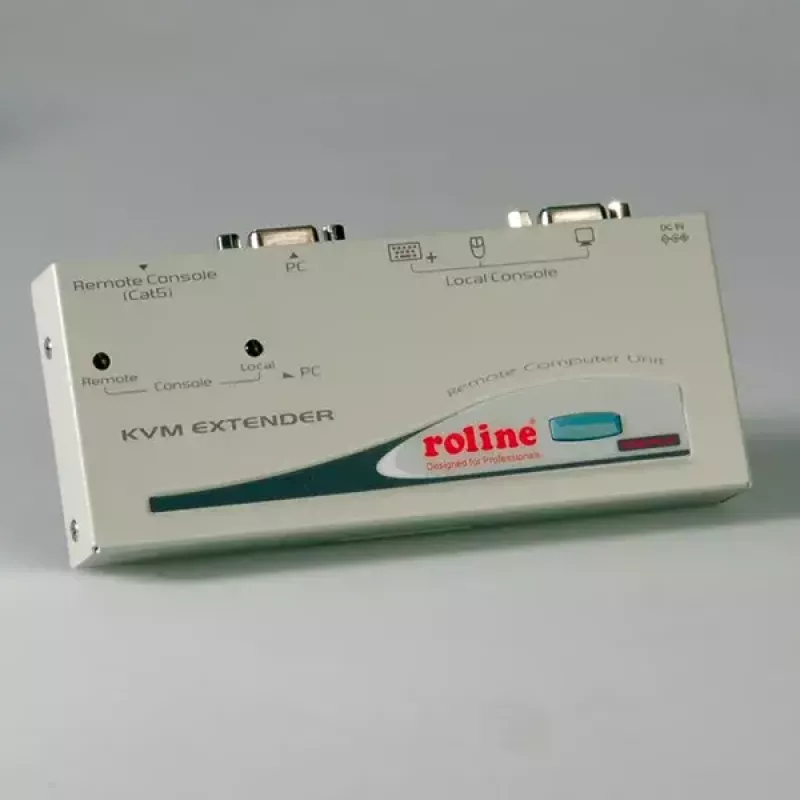

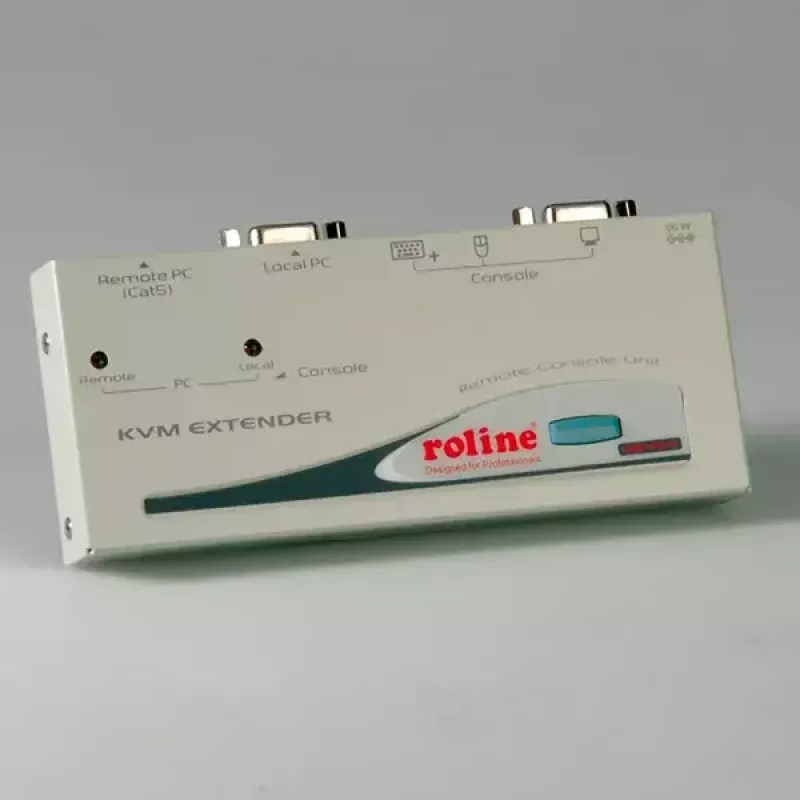

• Contents: local unit with power supply, remote unit, manual
• EAN: 7611990180028

How to use

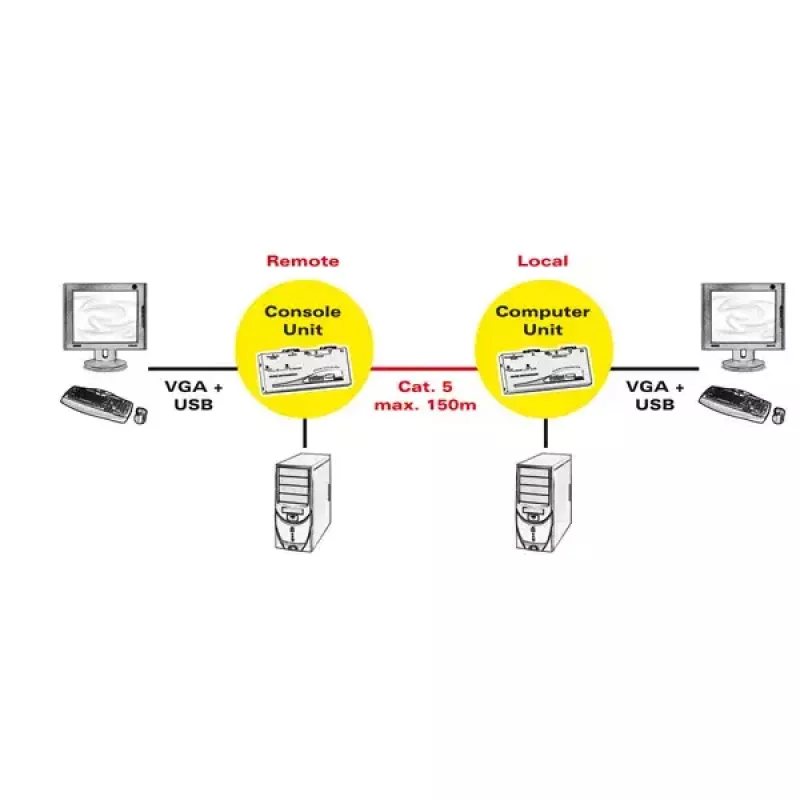

Connect the local unit to the computer and the remote unit to the keyboard, mouse and VGA monitor. Link both units using a Cat.5e twisted-pair cable not exceeding 150 m. Power the local unit with the supplied power adapter and ensure the remote unit is powered if required. Adjust video compensation with the hotkey commands to obtain the best signal quality for your cable length. Use standard USB keyboards and mice with the console ports.

Recommendations

For stable video and USB performance, use high-quality Cat.5e or better shielded cable, keep cable runs within the specified 150 m limit, and adjust video compensation after installation to match the actual cable length and environment.
