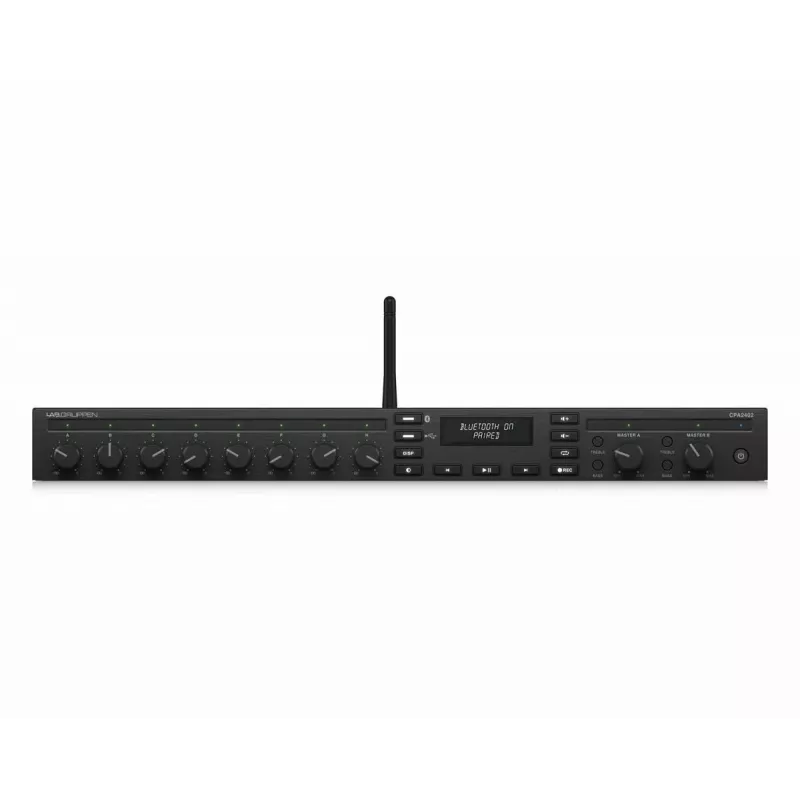

Lab Gruppen CA602 Amplificatore 2x60W 8 Ohm / 100V

The Lab Gruppen CA602 is a professional-grade 2-channel amplifier delivering 2x60W into 8 Ohm or 100V lines. Designed for fixed installation and commercial audio systems, it offers reliable performance with Class D efficiency and fanless convection cooling for silent operation.

Advantages

Energy-efficient Class D technology with universal switching power supply ensures low power consumption and high reliability. Convection cooling eliminates fan noise, making it ideal for noise-sensitive environments like conference rooms, restaurants, and houses of worship. Comprehensive protection circuits safeguard the amplifier and connected speakers.

Suitable for

• Commercial background music systems
• Public address installations
• Conference rooms and boardrooms
• Retail and hospitality venues

Key specifications

• 2 x 60W output at 8 Ohm, 4 Ohm, and 100V
• Class D amplifier topology
• Frequency response: 20 Hz - 20 kHz (+0/-3 dB)
• THD+N: < 0.1% at 1 kHz
• Signal-to-Noise Ratio: > 90 dB (A-weighted)
• Inputs: 2 x Euroblock (balanced)
• Outputs: 2 x Euroblock (speaker)
• Fanless convection cooling
• Half-rack 1U form factor (rack kit optional)
• Remote power control via Euroblock

Recommendations

For optimal performance, pair with Lab Gruppen speakers and use the optional rack-mount kit for standard 19-inch racks. Ensure proper ventilation for convection cooling.
