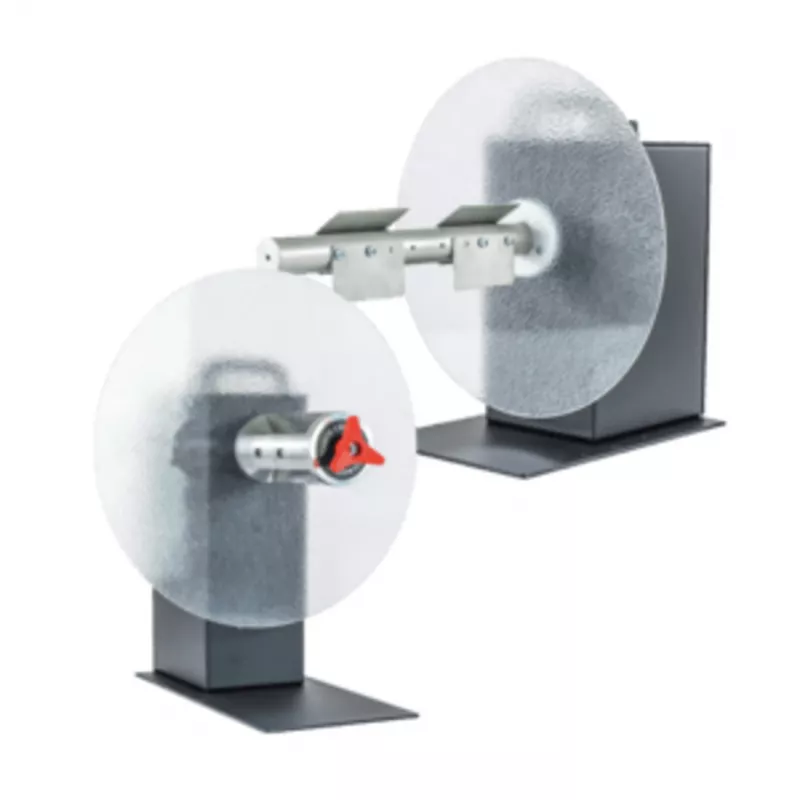

Labelmate MC-11 Mini-Cat riavvolgitore etichette - supporto anima regolabile 25-101 mm, diametro massimo rotolo 220 mm

The Labelmate MC-11 Mini-Cat is a high-quality label rewinder designed for efficient and reliable rewinding of printed labels. Featuring an adjustable core holder that accommodates core diameters from 25 to 101 mm (1 to 4 inches), it handles label rolls up to 220 mm (8.7 inches) in diameter and 115 mm (4.5 inches) in width. With a rewind speed of up to 50 cm/sec (20 inches/sec) and automatic synchronization with printer speed, this rewinder ensures seamless operation with most thermal transfer and direct thermal label printers.

Advantages

The MC-11 offers adjustable torque and speed control, allowing precise handling of various label materials. Its bi-directional capability enables both rewinding and unwinding, while the constant current motor provides consistent performance. The heavy-duty steel construction ensures durability in demanding environments.

Suitable for

• Rewinding printed labels from thermal transfer and direct thermal printers
• Unwinding label rolls for manual or automated application
• Integration into label printing and application workflows

Key specifications

• Product Type: Label Rewinder
• Rewinder Series: Mini-Cat
• Maximum Roll Diameter: 220 mm (8.7 inches)
• Core Holder Type: Adjustable
• Adjustable Core Holder Diameter Range: 25 - 101 mm (1 - 4 inches)
• Maximum Label Roll Width: 115 mm (4.5 inches)
• Rewind Speed: Up to 50 cm/sec (20 inches/sec)
• Motor Type: Constant Current Motor
• Direction: Bi-directional (Rewind/Unwind)
• Torque Control: Adjustable
• Speed Control: Adjustable
• Power Supply: External 12V DC
• Construction Material: Heavy-duty Steel
• Operation Mode: Automatic synchronization with printer speed
• Mounting: Freestanding
• Compatibility: Most thermal transfer and direct thermal label printers

Recommendations

For optimal performance, use with label printers that have a rewind speed compatible with the MC-11. Ensure the core holder is adjusted to match your label roll core diameter. This rewinder is ideal for medium to high-volume label printing applications.
